Benchmark 6000 Boiler Installation, Operation & Maintenance Manual
CHAPTER 2 – INSTALLATION
OMM-0086_0D AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 21 of 210
GF-133 Ph.: 800-526-0288 03/20/14

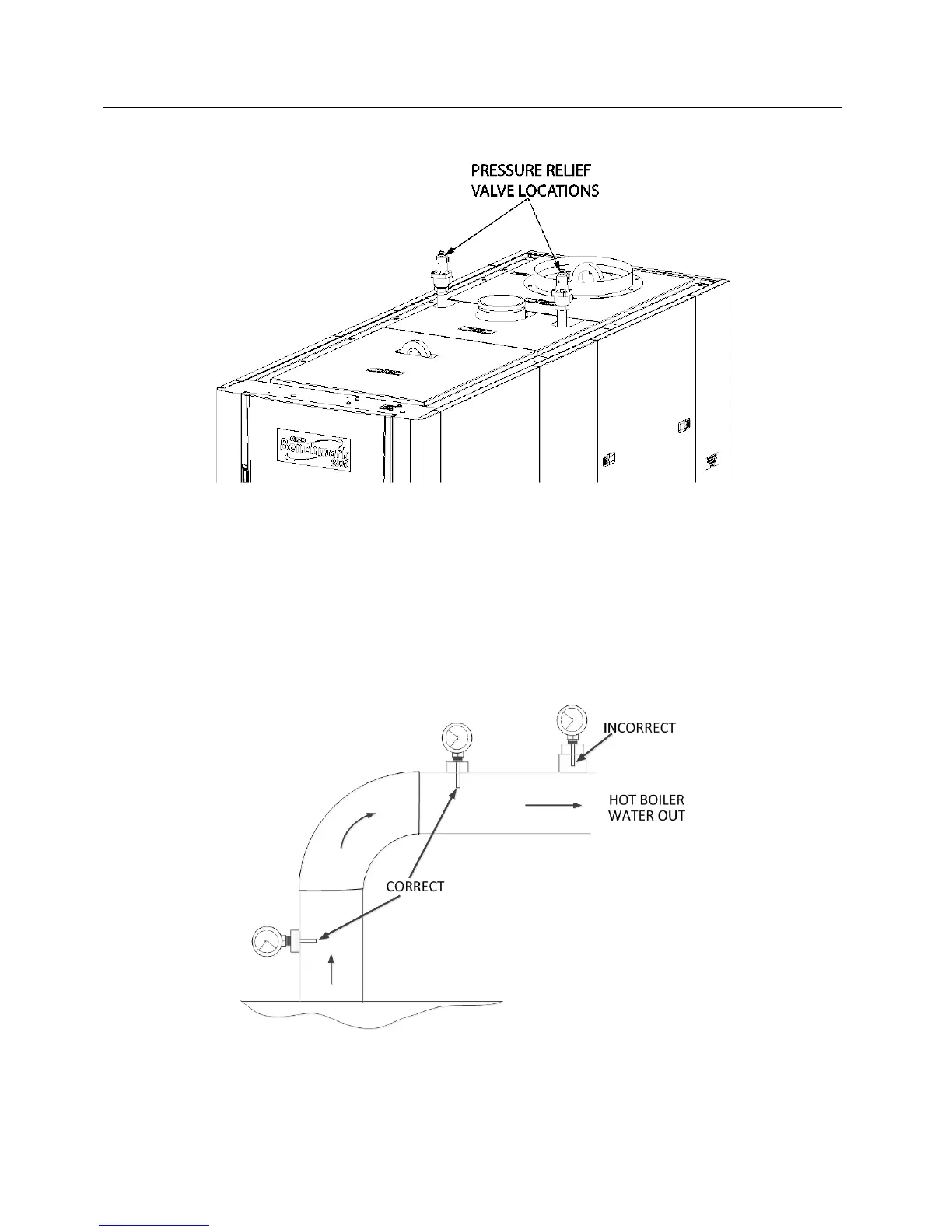

Figure 2-5: Pressure Relief Valve Installation Locations
2.6.2 Pressure/Temperature Gauge Installation
A manual Pressure/Temperature Gauge is included in the loose parts kit for installation for
installation in the boiler outlet piping. It must be installed so that the sensing bulb is inserted into
the hot water outlet flow from the boiler. Refer to Figure 2-5B for sample installations.
Figure 2-5B: Pressure/Temperature Gauge Installation Location
