APPENDIX K – C-MORE CONTROL PANEL VIEWS
OMM-0086_0D AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 Page 199 of 210
GF-133 Ph.: 800-526-0288 03/20/14
APPENDIX K – C-MORE CONTROL PANEL VIEWS
VERTICAL OVERLAY, BENCHMARK
P/N 124718
FRONT FACE PLATE, BENCHMARK
P/N 124949
FISH PAPER
INSULATOR
P/N 124960
ENCLOSURE
P/N 124951
V.F.D. DISPLAY
MODULE
P/N 124527
DISPLAY BOARD
P/N 124365
PMC BOARD
P/N 124364
LOW WATER CUTOFF
BOARD P/N 124363
CONNECTOR BOARD
P/N 124366
IGNITION/STEPPER BOARD
P/N 124361
POWER SUPPLY BOARD
P/N 124362
GREEN LED
P/N 124948
ROCKER
SWITCH
P/N 124947
PUSH BUTTON
SWITCHES
P/N 124954

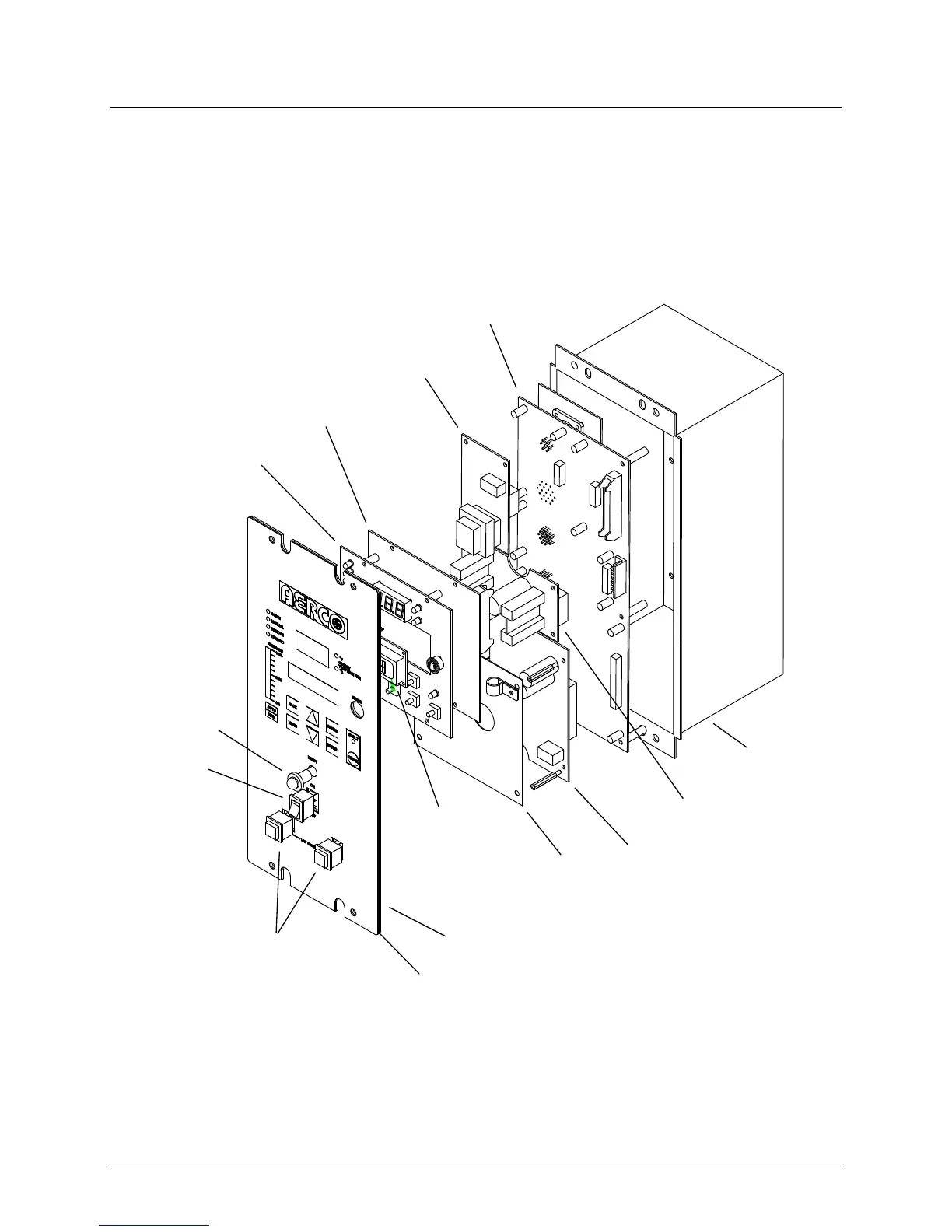

BENCHMARK CONTROL PANEL EXPLODED VIEW
Figure K-1: Benchmark Control Panel Exploded View
