17
9 DIAGRAM MENU
The CHART menu is used to view certain unit operating parameters, shown graphi-
cally on Cartesian axes to illustrate the value changes (temperature, power or pres-
sure) requested over time.

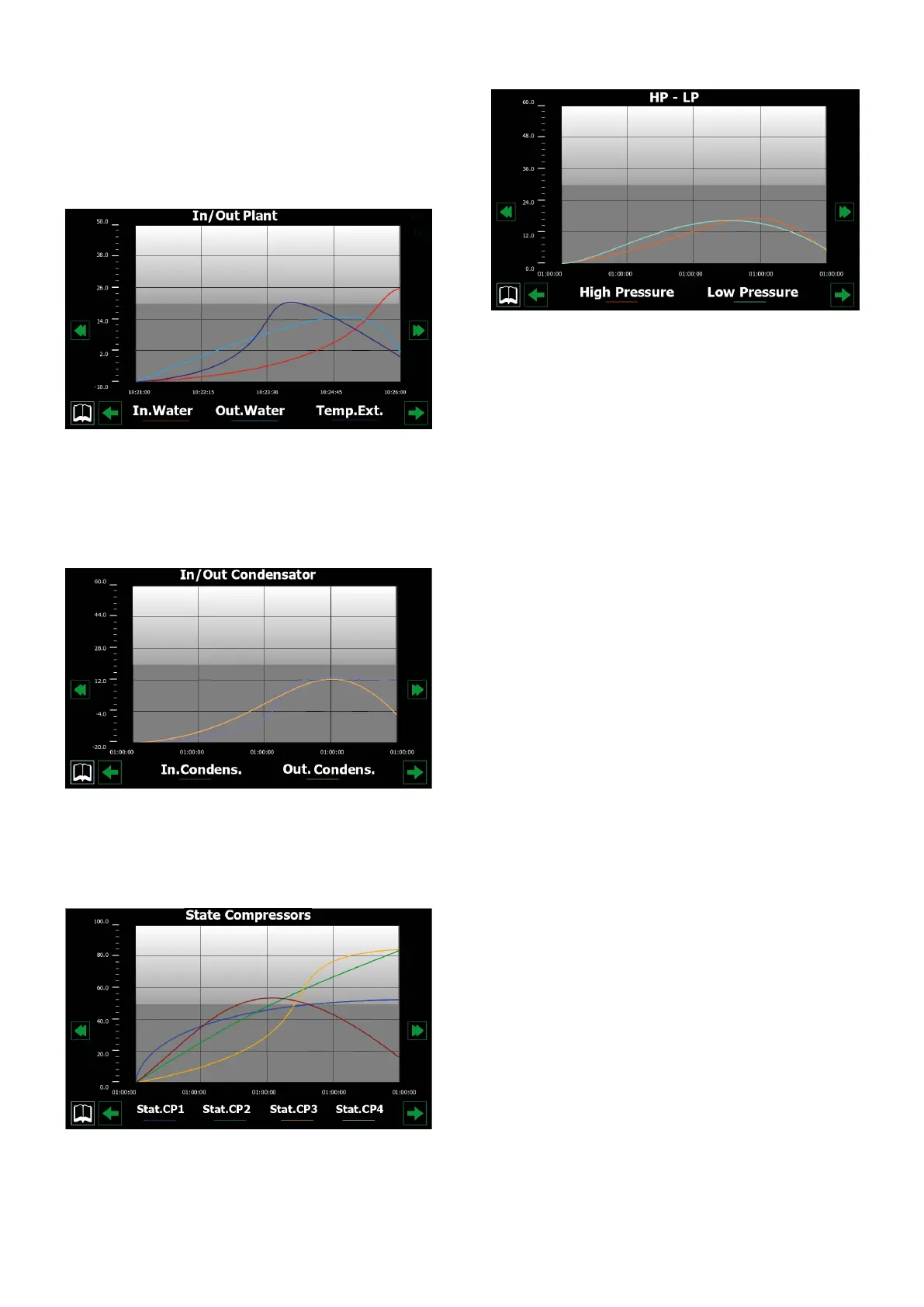

9.1 CHART SHOWING TEMPERATURE TREND OF INLET/
OUTLET WATER ON HEAT EXCHANGER
Displays a chart in real time, relating to the temperature of the water entering and
leaving the heat exchanger (in the lower part you can see a key explaining the col-
ours of the curves).
9.2 CONDENSER WATER/WATER UNIT INLET/OUTLET
WATER TEMPERATURE TREND CHART
Displays a chart in real time, relating to the temperature of the water entering and
leaving the heat exchanger (in the lower part you can see a key explaining the col-
ours of the curves).
9.3 COMPRESSOR TREND CHART
Displays a real-time chart on the trend of the compressor powers (the key for the
colours of the curves is shown on the bottom)
9.4 HIGH AND LOW PRESSURE TREND CHART
Displays a real-time chart on the trend of high and low pressures (the key for the
colours of the curves is shown on the bottom)
