AERMEC WRL-H - Operating Limits

8. OPERATING
LIMITS
20
25
30
35
40
45
50
55
60
65
-10 -8 -6 -4 - 2 0 2 4 6 8 10 12 14 16 18 20 22
35°C
48°C
Standard functioning / X
Standard functioning / X
Functioning
Functioning
with glycol X / Y
with glycol X / Y
EVAPORATOR water outlet temperature °C
Water output temperature at CONDENSER/
TOTAL RECOVERY °C

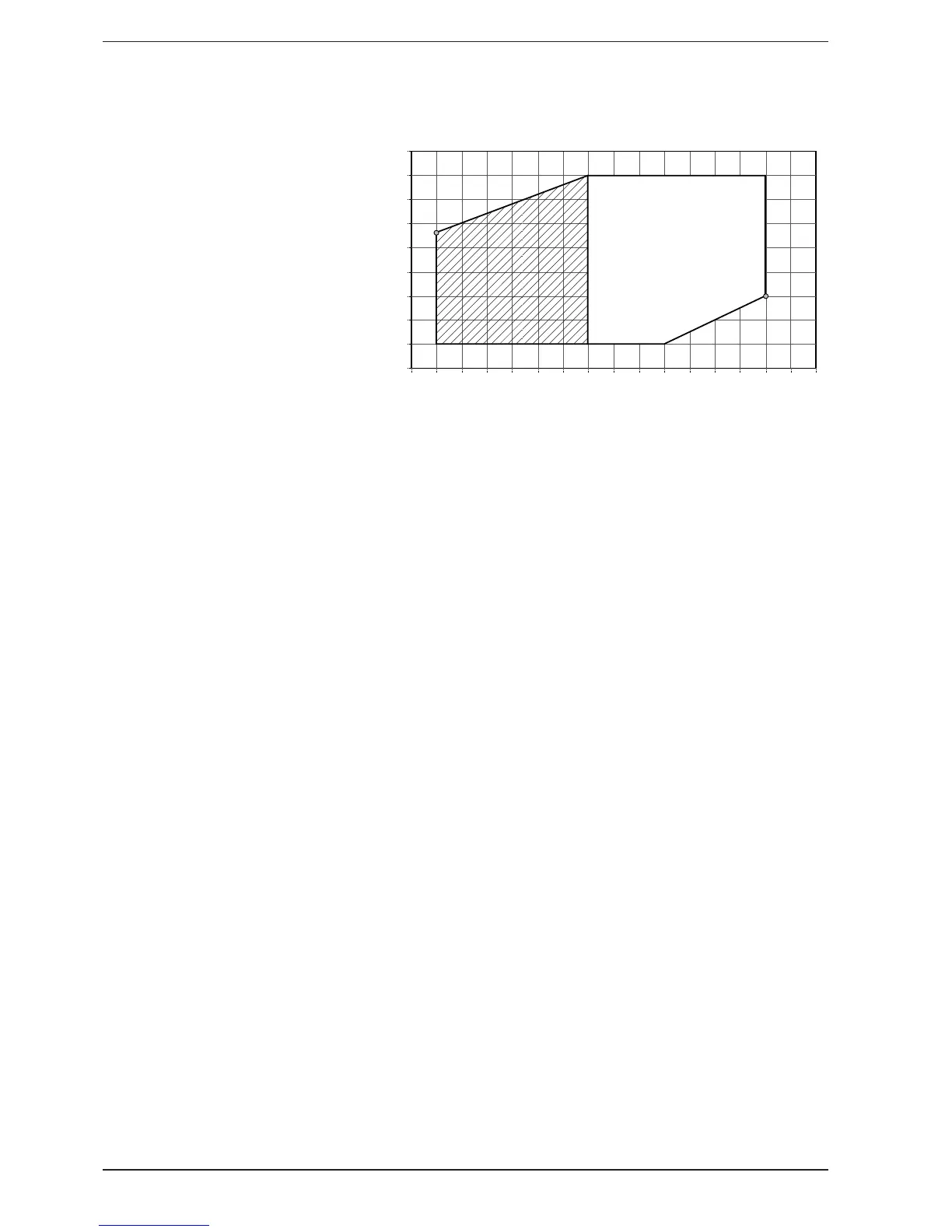

FUNCTIONING LIMITS
The operating limits diagram is relative
to a ∆t on the evaporator and the
condenser of 5°C.
Condenser outlet inlet difference (Δtc):
min: 5° C.
max: 22° C.
Evaporator outlet inlet difference (Δte):
min: 3° C.
max: 10° C.
