16. SELECTION AND PLACE OF INSTALLATION
500mm
500mm
500mm
500mm
500mm
500mm
500mm
500mm
500mm

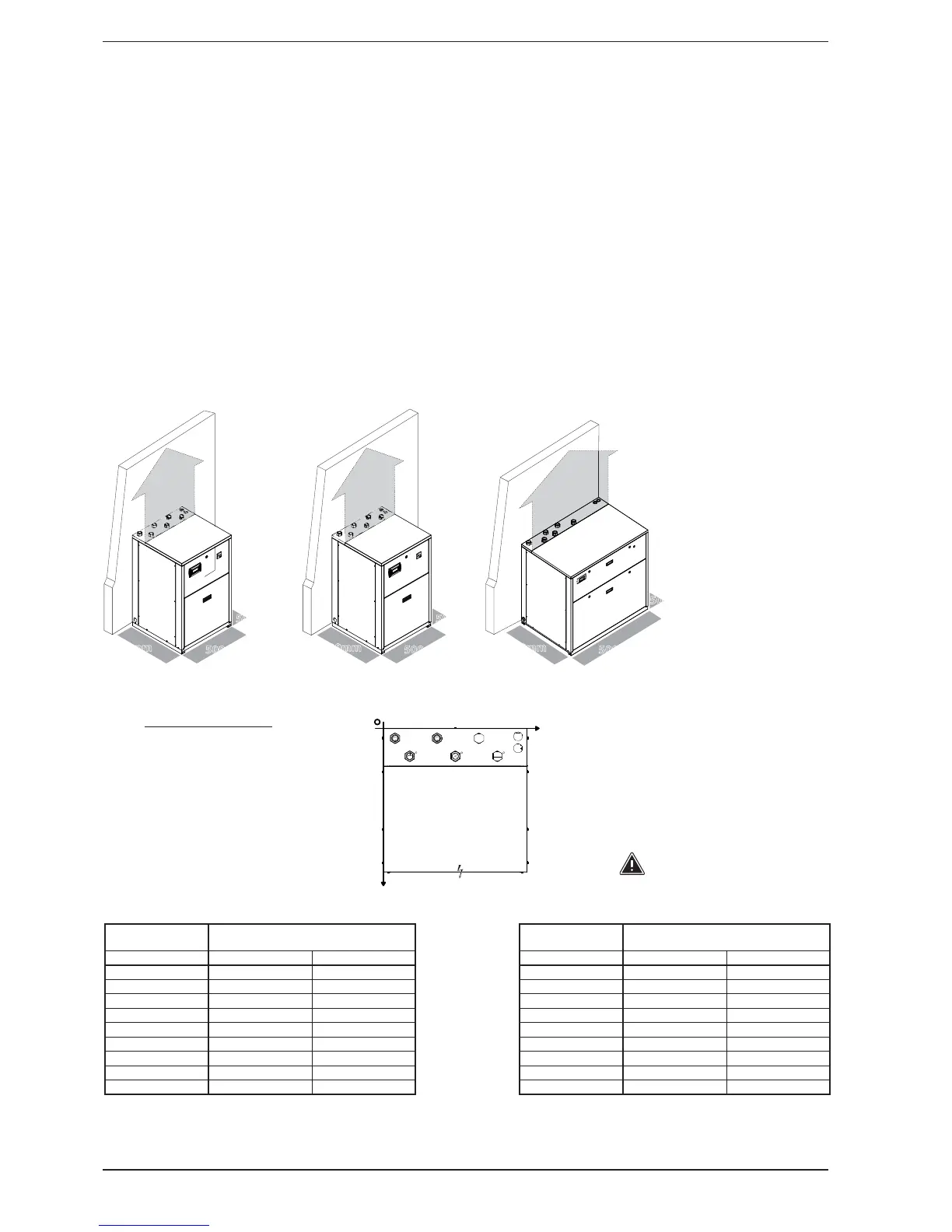

► MINIMUM TECHNICAL SPACES
The WRL-H heat pump is set-up for an
INTERNAL application.
It is shipped pre-tested and only requires
the electrical and hydraulic connections.
Before beginning the installation process,
decide with the client where the unit is
to be installed, whilst paying attention to
the following:
− The support surface must be capable
of supporting the unit weight.
− The safety distances between the units
and other appliances or structures
must be scrupulously respected.
− The unit must be installed by a
qualified technician in compliance
with national laws in the country of
destination.
− It is mandatory to foresee to the
necessary technical space in order to
allow ROUTINE AND EXTRAORDINARY
MAINTENANCE interventions.
− Remember that during operation,
the chiller can cause vibrations;
therefore "VT" anti-vibration mounts
(ACCESSORIES) are recommended,
fixed on the base according to the
assembly layout.
− Fix the unit checking that it is level.
WARNING
It is obligatory to
comply with the
indicated minimum
measurements;
the height and the
back must be sized
according to the
type of system and
place of installation.
16.1. ► BARYCENTRES
WRL-H BARYCENTRE 2 EXCHANGERS
Sizes y (mm) x (mm)
025 400 280
030 400 280
040 400 280
050 520 210
070 520 210
080 520 210
100 380 620
140 380 620
160 380 620
WRL-H BARYCENTRE 3 EXCHANGERS
Sizes y (mm) x (mm)
025 390 280
030 390 280
040 390 280
050 500 210
070 500 210
080 500 210
100 380 610
140 380 610
160 380 610
x
y
WARNING:
DRAWING PURELY INDICATIVE
