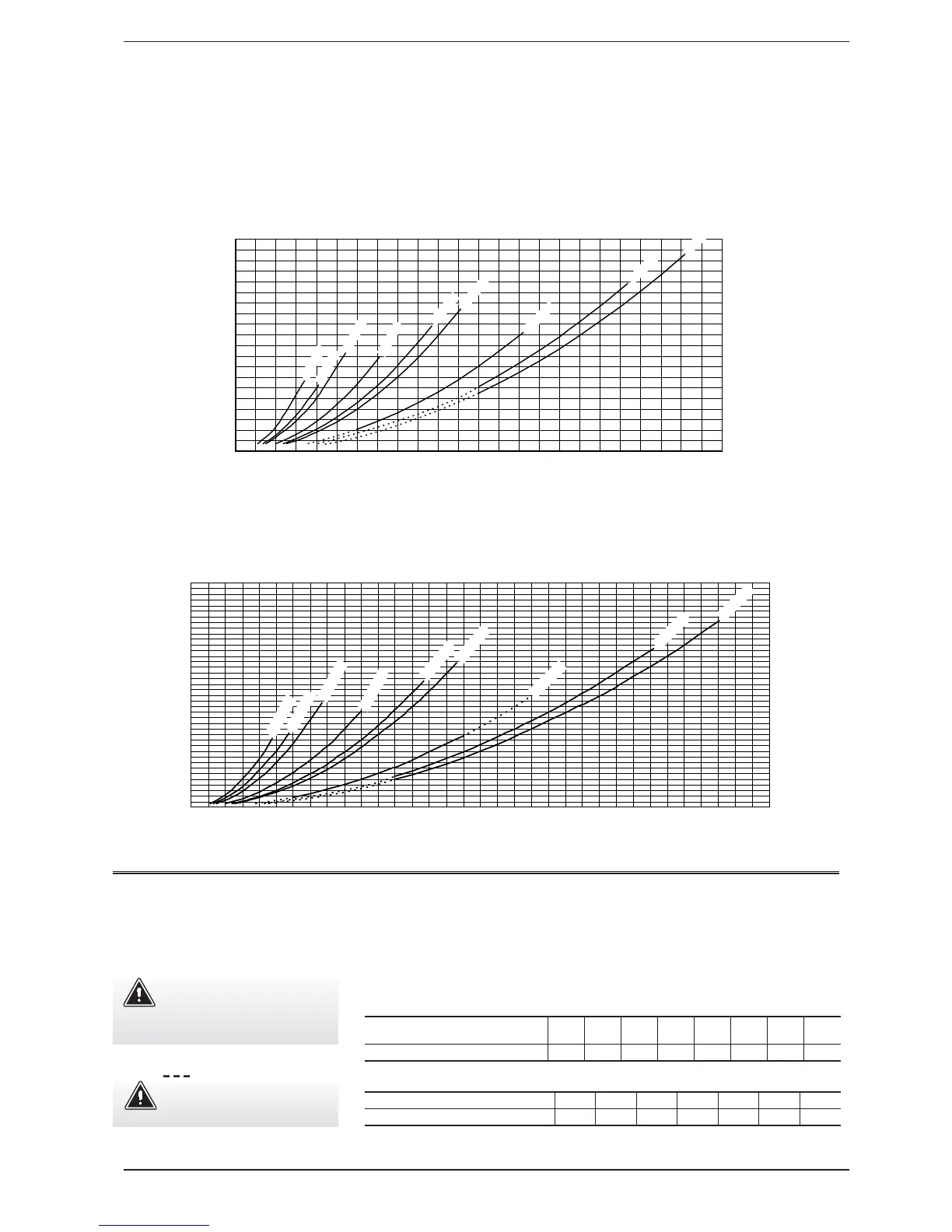

AERMEC WRL-H - Cooling Mode Functioning; Condenser;Total Recovery

CONDENSER/TOTAL RECOVERY
Water flow rate (l/h)
Pressure drops (kPa)
0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000
WRL025
WRL030
WRL040
WRL050
WRL070
WRL080
WRL100
WRL140
WRL160
0
10
20
30
40
60
70
80
90
50
100
EVAPORATOR
Water flow rate (l/h)
Pressure drops (kPa)
0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000 13000 14000 15000 16000 17000
WRL025
WRL030
WRL040
WRL050
WRL070
WRL080
WRL100
WRL140
WRL160
0
10
20
30
40
60
70
80
90
50
100
110
120
130
140
160
170
180
190
150
200
COOLING MODE FUNCTIONING
The tables state the correction to apply
to the pressure drops on variation of the
average temperature.
The minimum flow rates
have been calculated with
reference to the features of
the water flow rate control
device (differential pressure
switch).
Evaporator
Average water temperature °C 5 10 15 20 25 30 35
Multiplicative coefficient 1,02 1,00 0,98 0,97 0,96 0,95 0,94
Condenser
Average water temperature
°C
23 28 33 38 43 48 53 58
Multiplicative coefficient 1,02 1,01 1,00 0,99 0,98 0,97 0,96 0,95
= “field of application
not accepted with standard
pump”. CONTACT THE HEAD
OFFICE.
