AERMEC WRL-H - Useful Static Pressures; Condenser Useful Static Pressures

If work points are selected
outside of the static pressure
curves range, contact the
head office.

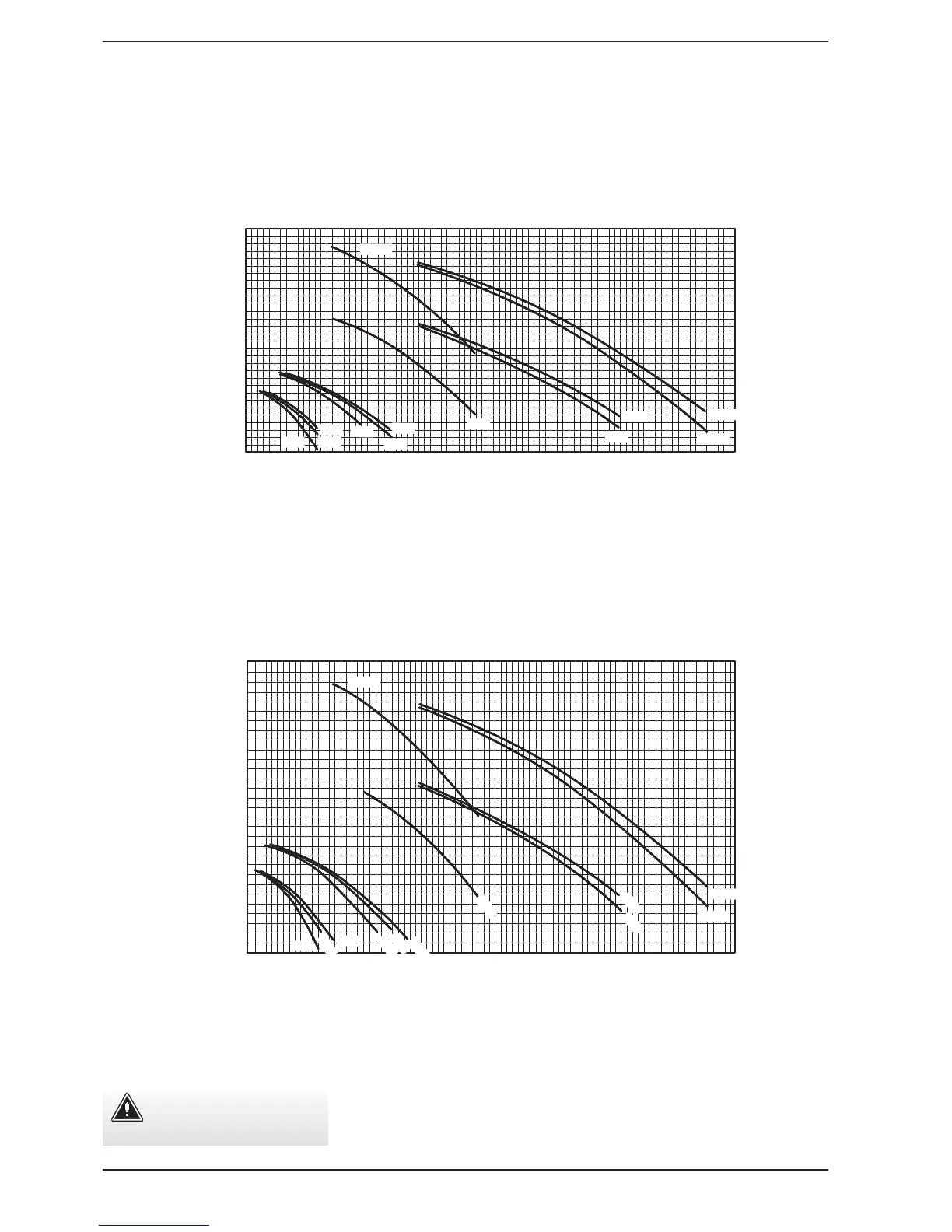

12. USEFUL STATIC PRESSURES
Water flow rates (l/h)
Useful static pressures [kPa]
0
1000 2000 3000 4000 5000 6000 7000 8000 9000
10000 11000 12000 13000 14000 15000 16000 17000
0
50
100
150
200
250
300
025 030
040
050
070
080
100
140
160
100N
140N
160N
CONDENSER USEFUL STATIC PRESSURES
FUNCTIONING IN HEATING MODE
Water flow rates (l/h)
Useful static pressures [kPa]
0
1000 2000 3000 4000 5000 6000 7000 8000 9000
10000 11000 12000 13000 14000 15000
16000
17000
0
50
100
150
200
250
300
025
030
040
050
070
080
100
140
160
100U
140U
160U
EVAPORATOR USEFUL STATIC PRESSURES
42
IWRLTY. 1201. 5890974_06
