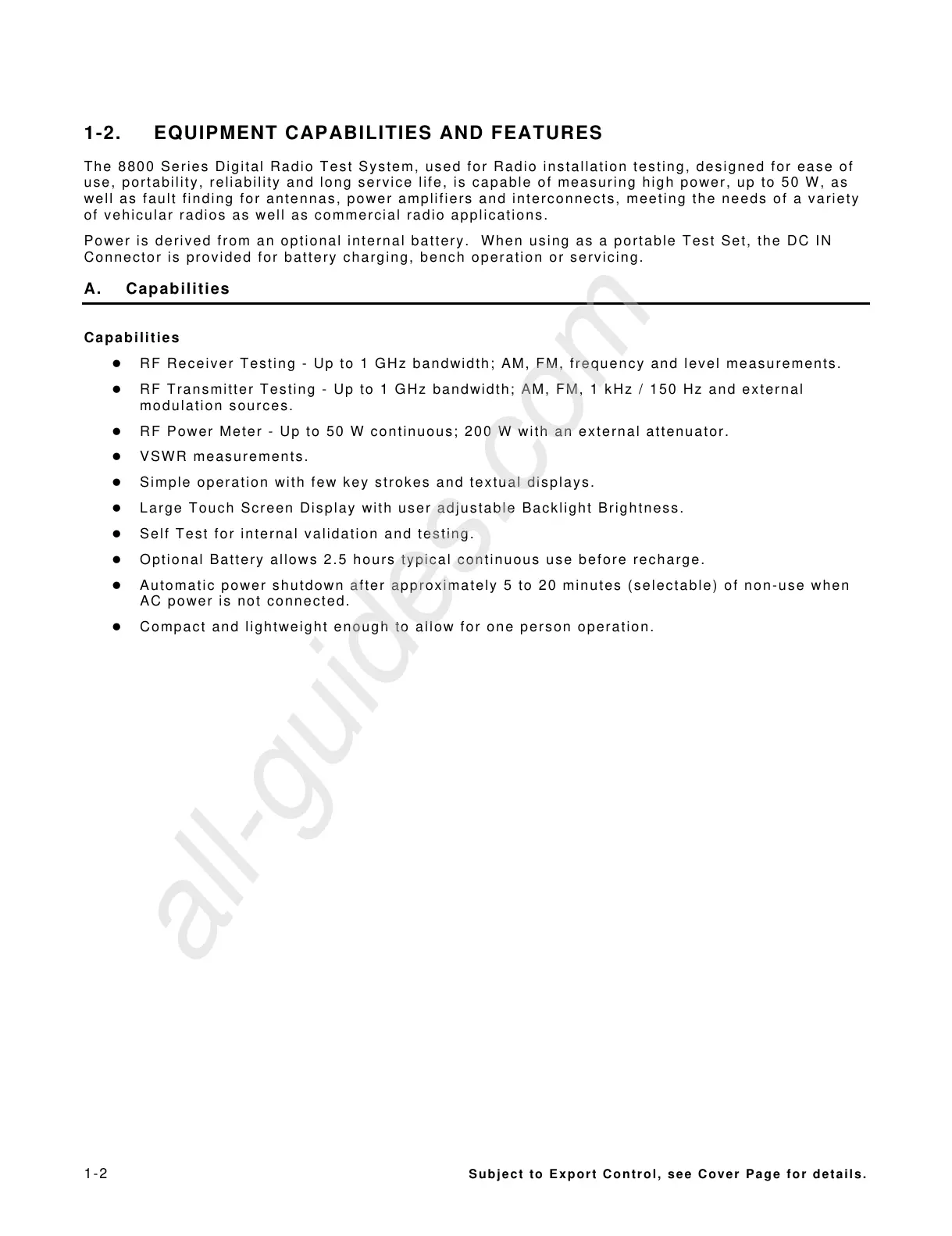

1-2. EQUIPMENT CAPABILITIES AND FEATURES
The 8800 Series Digital Radio Test System, used for Radio installation testing, designed for ease of
use, portability, reliability and long service life, is capable of measuring high power, up to 50 W, as
well as fault finding for antennas, power amplifiers and interconnects, meeting the needs of a variety
of vehicular radios as well as commercial radio applications.
Power is derived from an optional internal battery. When using as a portable Test Set, the DC IN
Connector is provided for battery charging, bench operation or servicing.
A. Capabilities
Capabilities
 RF Receiver Testing - Up to 1 GHz bandwidth; AM, FM, frequency and level measurements.
 RF Transmitter Testing - Up to 1 GHz bandwidth; AM, FM, 1 kHz / 150 Hz and external
modulation sources.
 RF Power Meter - Up to 50 W continuous; 200 W with an external attenuator.
 VSWR measurements.
 Simple operation with few key strokes and textual displays.
 Large Touch Screen Display with user adjustable Backlight Brightness.
 Self Test for internal validation and testing.
 Optional Battery allows 2.5 hours typical continuous use before recharge.
 Automatic power shutdown after approximately 5 to 20 minutes (selectable) of non-use when
AC power is not connected.
 Compact and lightweight enough to allow for one person operation.
