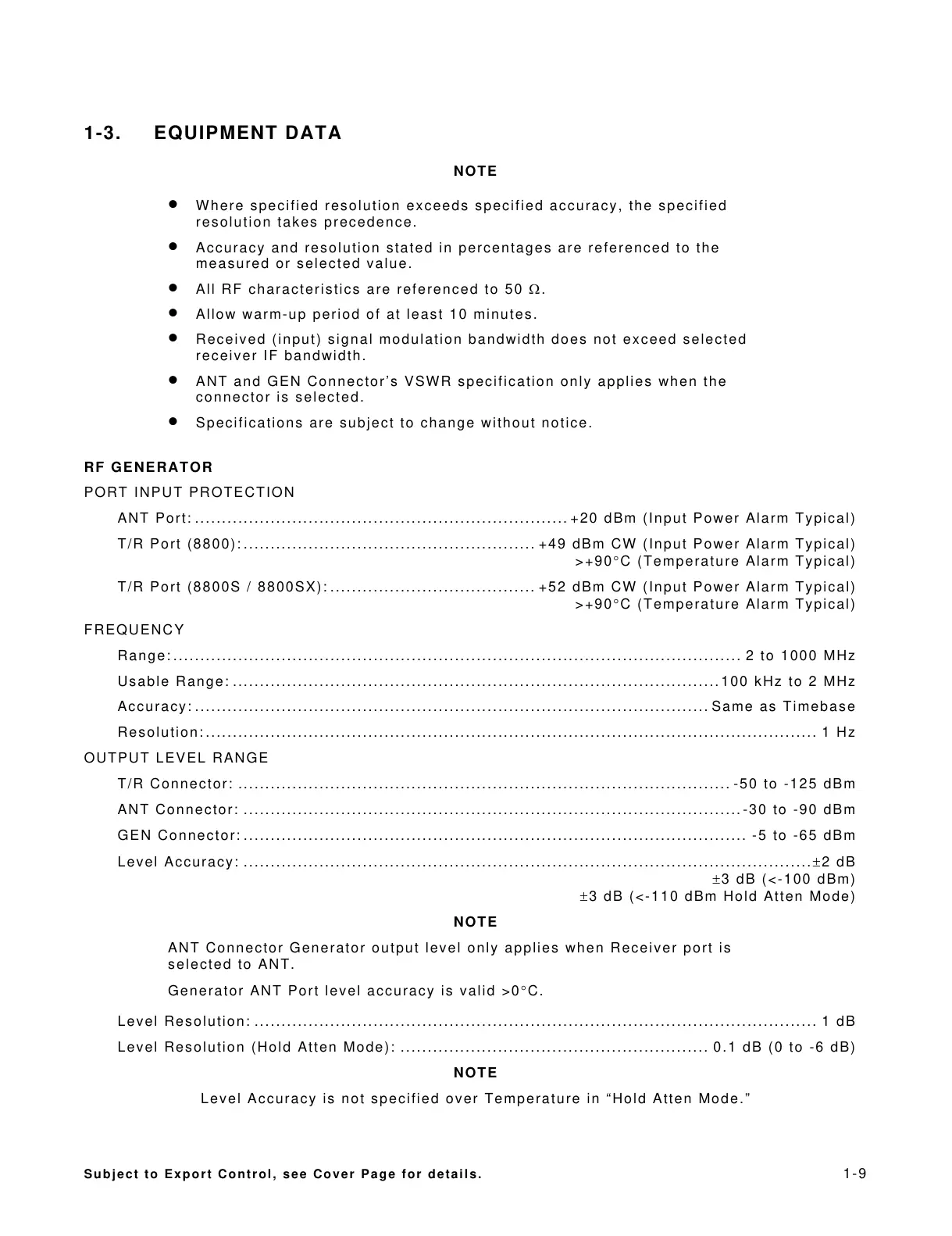

1-3. EQUIPMENT DATA
NOTE
• Where specified resolution exceeds specified accuracy, the specified
resolution takes precedence.
• Accuracy and resolution stated in percentages are referenced to the
measured or selected value.
• All RF characteristics are referenced to 50 Ω .
• Allow warm-up period of at least 10 minutes.
• Received (input) signal modulation bandwidth does not exceed selected
receiver IF bandwidth.
• ANT and GEN Connector’s VSWR specification only applies when the
connector is selected.
• Specifications are subject to change without notice.
RF GENERATOR
PORT INPUT PROTECTION
ANT Port: ..................................................................... +20 dBm (Input Power Alarm Typical)
T/R Port (8800): ...................................................... +49 dBm CW (Input Power Alarm Typical)
>+90°C (Temperature Alarm Typical)
T/R Port (8800S / 8800SX): ...................................... +52 dBm CW (Input Power Alarm Typical)
>+90°C (Temperature Alarm Typical)
FREQUENCY
Range: ......................................................................................................... 2 to 1000 MHz
Usable Range: .......................................................................................... 100 kHz to 2 MHz
Accuracy: ............................................................................................... Same as Timebase
Resolution: ................................................................................................................. 1 Hz
OUTPUT LEVEL RANGE
T/R Connector: ........................................................................................... -50 to -125 dBm
ANT Connector: ............................................................................................ -30 to -90 dBm
GEN Connector: ............................................................................................. -5 to -65 dBm
Level Accuracy: ......................................................................................................... ± 2 dB
±3 dB (<-100 dBm)
±3 dB (<-110 dBm Hold Atten Mode)
NOTE
ANT Connector Generator output level only applies when Receiver port is
selected to ANT.
Generator ANT Port level accuracy is valid >0° C.
Level Resolution: ........................................................................................................ 1 dB
Level Resolution (Hold Atten Mode): ......................................................... 0.1 dB (0 to -6 dB)
NOTE
Level Accuracy is not specified over Temperature in “Hold Atten Mode.”
