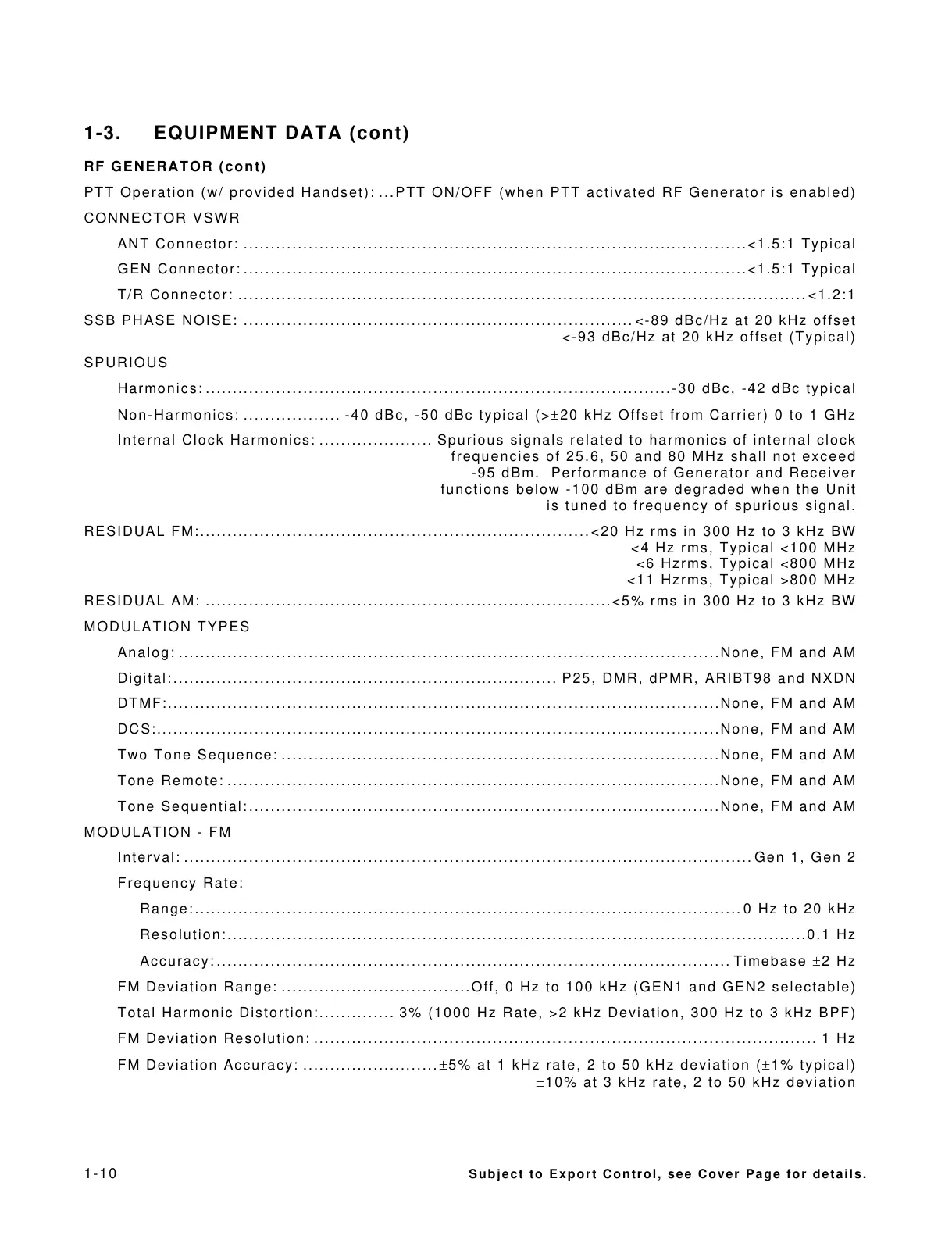

1-3. EQUIPMENT DATA (cont)
RF GENERATOR (cont)
PTT Operation (w/ provided Handset): ... PTT ON/OFF (when PTT activated RF Generator is enabled)
CONNECTOR VSWR
ANT Connector: ............................................................................................. <1.5:1 Typical
GEN Connector: ............................................................................................. <1.5:1 Typical
T/R Connector: ......................................................................................................... <1.2:1
SSB PHASE NOISE: ........................................................................ <-89 dBc/Hz at 20 kHz offset
<-93 dBc/Hz at 20 kHz offset (Typical)
SPURIOUS
Harmonics: ...................................................................................... -30 dBc, -42 dBc typical
Non-Harmonics: .................. -40 dBc, -50 dBc typical (>±20 kHz Offset from Carrier) 0 to 1 GHz
Internal Clock Harmonics: ..................... Spurious signals related to harmonics of internal clock
frequencies of 25.6, 50 and 80 MHz shall not exceed
-95 dBm. Performance of Generator and Receiver
functions below -100 dBm are degraded when the Unit
is tuned to frequency of spurious signal.
RESIDUAL FM: ........................................................................ <20 Hz rms in 300 Hz to 3 kHz BW
<4 Hz rms, Typical <100 MHz
<6 Hzrms, Typical <800 MHz
<11 Hzrms, Typical >800 MHz
RESIDUAL AM: ........................................................................... <5% rms in 300 Hz to 3 kHz BW
MODULATION TYPES
Analog: .................................................................................................... None, FM and AM
Digital: ....................................................................... P25, DMR, dPMR, ARIBT98 and NXDN
DTMF:...................................................................................................... None, FM and AM
DCS:........................................................................................................ None, FM and AM
Two Tone Sequence: ................................................................................. None, FM and AM
Tone Remote: ........................................................................................... None, FM and AM
Tone Sequential: ....................................................................................... None, FM and AM
MODULATION - FM
Interval: ......................................................................................................... Gen 1, Gen 2
Frequency Rate:
Range: ..................................................................................................... 0 Hz to 20 kHz
Resolution: ........................................................................................................... 0.1 Hz
Accuracy: ............................................................................................... Timebase ±2 Hz
FM Deviation Range: ................................... Off, 0 Hz to 100 kHz (GEN1 and GEN2 selectable)
Total Harmonic Distortion: .............. 3% (1000 Hz Rate, >2 kHz Deviation, 300 Hz to 3 kHz BPF)
FM Deviation Resolution: ............................................................................................. 1 Hz
FM Deviation Accuracy: ......................... ± 5% at 1 kHz rate, 2 to 50 kHz deviation (± 1% typical)
±10% at 3 kHz rate, 2 to 50 kHz deviation
