Subject to Export Control, see Cover Page for details. 1-11

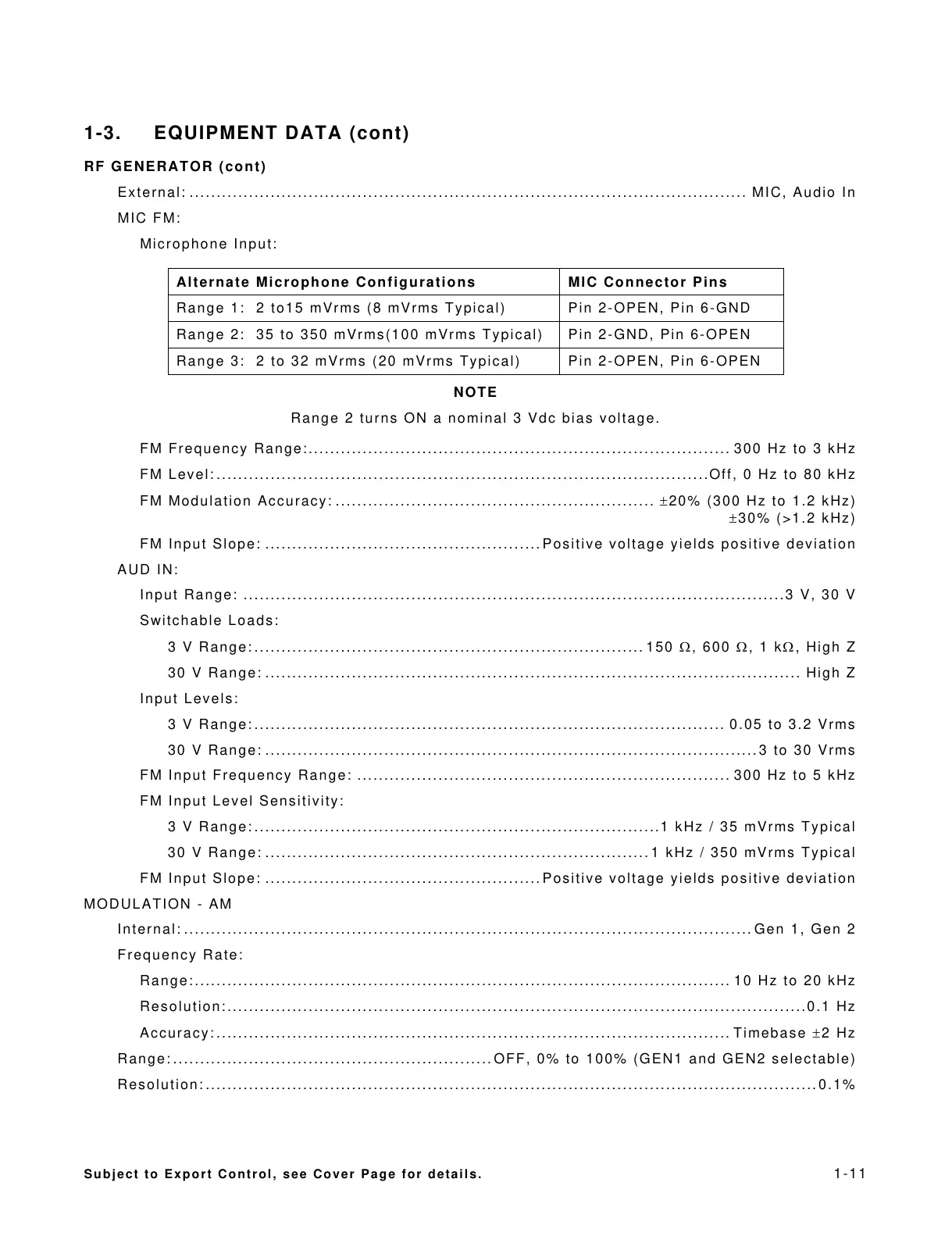

1-3. EQUIPMENT DATA (cont)
RF GENERATOR (cont)
External: ....................................................................................................... MIC, Audio In
MIC FM:
Microphone Input:
Alternate Microphone Configurations MIC Connector Pins
Range 1: 2 to15 mVrms (8 mVrms Typical) Pin 2-OPEN, Pin 6-GND
Range 2: 35 to 350 mVrms(100 mVrms Typical) Pin 2-GND, Pin 6-OPEN
Range 3: 2 to 32 mVrms (20 mVrms Typical) Pin 2-OPEN, Pin 6-OPEN
NOTE
Range 2 turns ON a nominal 3 Vdc bias voltage.
FM Frequency Range: .............................................................................. 300 Hz to 3 kHz
FM Level: ........................................................................................... Off, 0 Hz to 80 kHz
FM Modulation Accuracy: ........................................................... ±20% (300 Hz to 1.2 kHz)
±30% (>1.2 kHz)
FM Input Slope: ................................................... Positive voltage yields positive deviation
AUD IN:
Input Range: .................................................................................................... 3 V, 30 V
Switchable Loads:
3 V Range: ........................................................................ 150 Ω , 600 Ω , 1 kΩ , High Z
30 V Range: ................................................................................................... High Z
Input Levels:
3 V Range: ....................................................................................... 0.05 to 3.2 Vrms
30 V Range: ........................................................................................... 3 to 30 Vrms
FM Input Frequency Range: ..................................................................... 300 Hz to 5 kHz
FM Input Level Sensitivity:
3 V Range: ........................................................................... 1 kHz / 35 mVrms Typical
30 V Range: ....................................................................... 1 kHz / 350 mVrms Typical
FM Input Slope: ................................................... Positive voltage yields positive deviation
MODULATION - AM
Internal: ......................................................................................................... Gen 1, Gen 2
Frequency Rate:
Range: ................................................................................................... 10 Hz to 20 kHz
Resolution: ........................................................................................................... 0.1 Hz
Accuracy: ............................................................................................... Timebase ±2 Hz
Range: ........................................................... OFF, 0% to 100% (GEN1 and GEN2 selectable)
Resolution: ................................................................................................................. 0.1%
