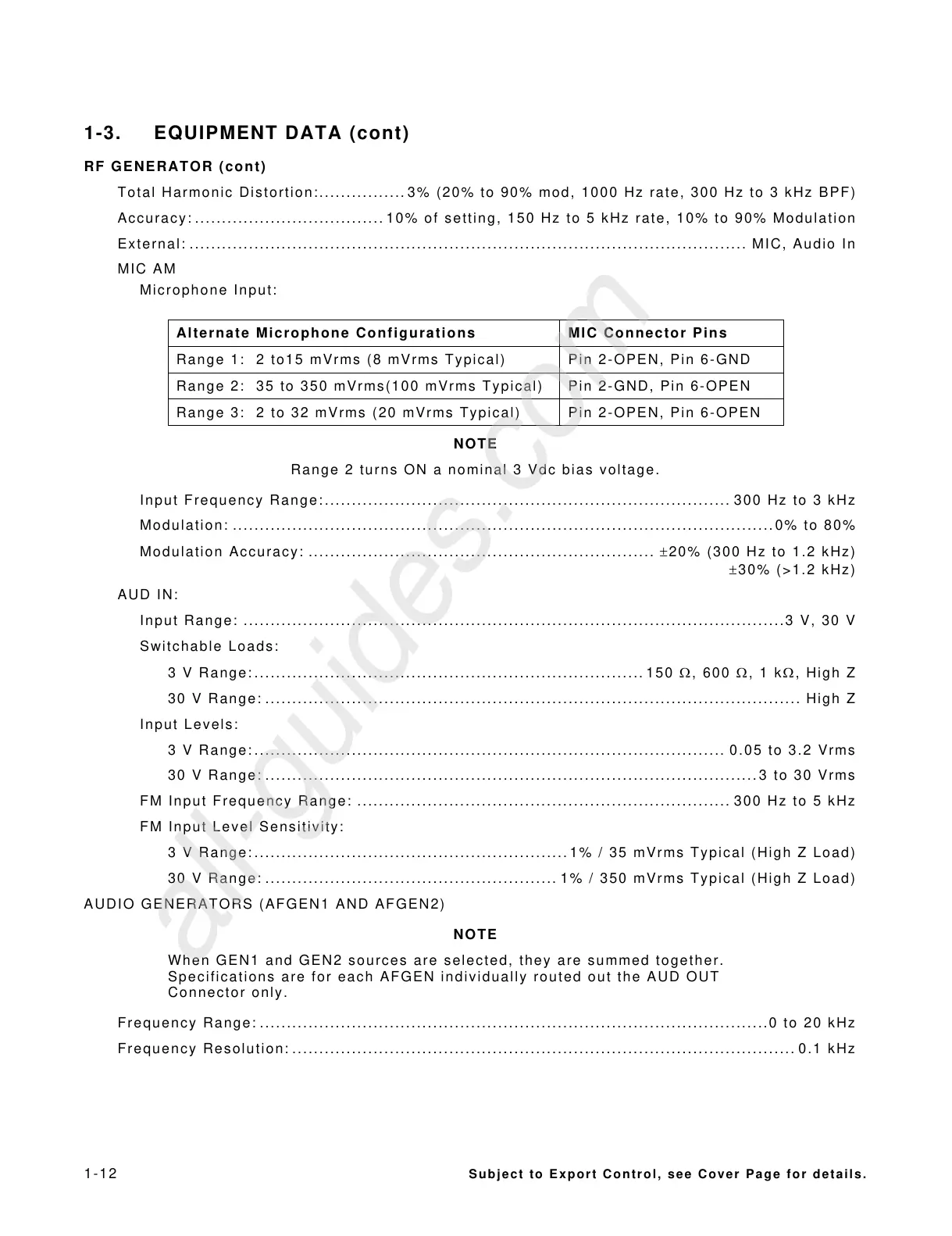

1-3. EQUIPMENT DATA (cont)
RF GENERATOR (cont)
Total Harmonic Distortion: ................ 3% (20% to 90% mod, 1000 Hz rate, 300 Hz to 3 kHz BPF)
Accuracy: ................................... 10% of setting, 150 Hz to 5 kHz rate, 10% to 90% Modulation
External: ....................................................................................................... MIC, Audio In
MIC AM
Microphone Input:
Alternate Microphone Configurations MIC Connector Pins
Range 1: 2 to15 mVrms (8 mVrms Typical) Pin 2-OPEN, Pin 6-GND
Range 2: 35 to 350 mVrms(100 mVrms Typical) Pin 2-GND, Pin 6-OPEN
Range 3: 2 to 32 mVrms (20 mVrms Typical) Pin 2-OPEN, Pin 6-OPEN
NOTE
Range 2 turns ON a nominal 3 Vdc bias voltage.
Input Frequency Range: ........................................................................... 300 Hz to 3 kHz
Modulation: .................................................................................................... 0% to 80%
Modulation Accuracy: ................................................................ ±20% (300 Hz to 1.2 kHz)
±30% (>1.2 kHz)
AUD IN:
Input Range: .................................................................................................... 3 V, 30 V
Switchable Loads:
3 V Range: ........................................................................ 150 Ω , 600 Ω , 1 kΩ , High Z
30 V Range: ................................................................................................... High Z
Input Levels:
3 V Range: ....................................................................................... 0.05 to 3.2 Vrms
30 V Range: ........................................................................................... 3 to 30 Vrms
FM Input Frequency Range: ..................................................................... 300 Hz to 5 kHz
FM Input Level Sensitivity:
3 V Range: .......................................................... 1% / 35 mVrms Typical (High Z Load)
30 V Range: ...................................................... 1% / 350 mVrms Typical (High Z Load)
AUDIO GENERATORS (AFGEN1 AND AFGEN2)
NOTE
When GEN1 and GEN2 sources are selected, they are summed together.
Specifications are for each AFGEN individually routed out the AUD OUT
Connector only.
Frequency Range: .............................................................................................. 0 to 20 kHz
Frequency Resolution: ............................................................................................. 0.1 kHz
