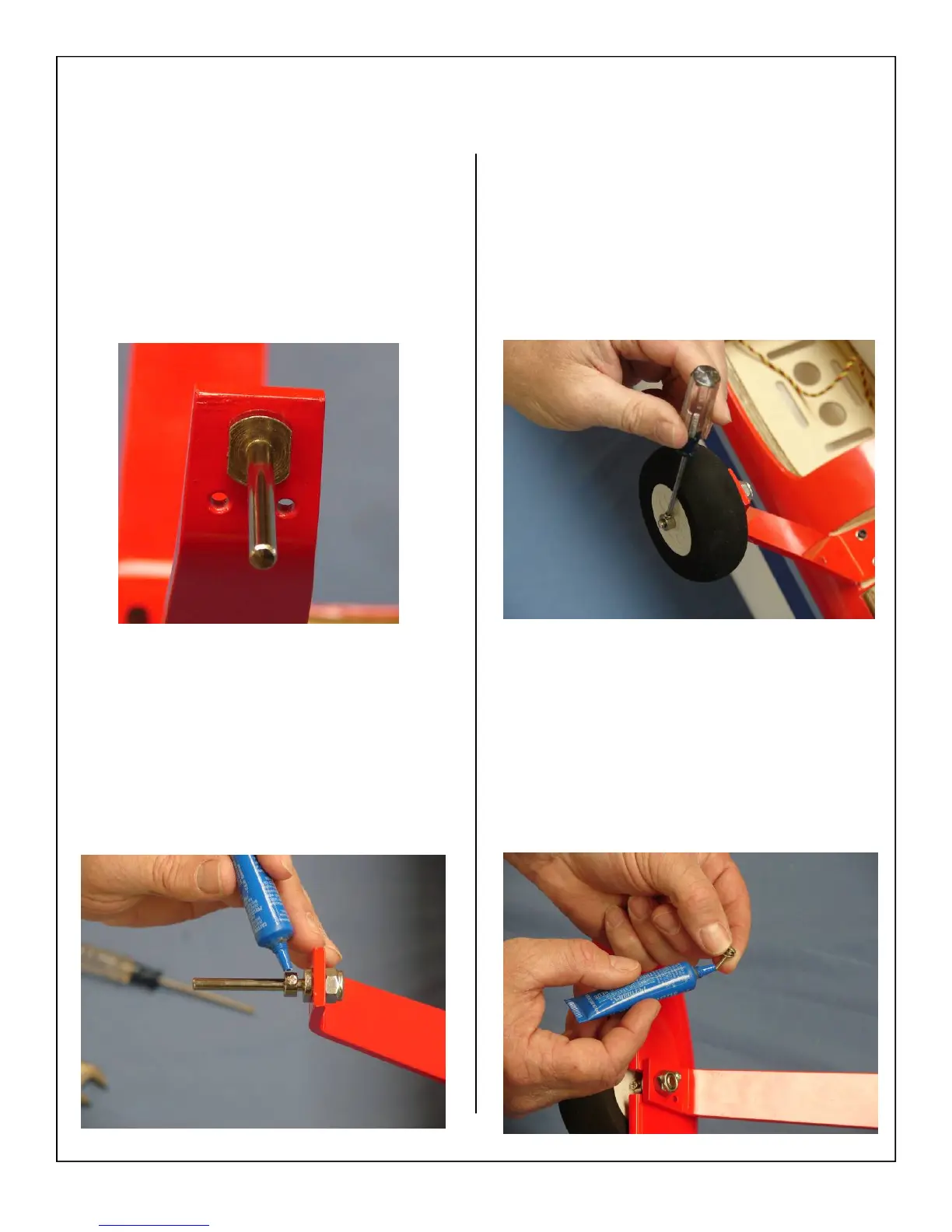

9. Align flat sides of axle with edge of landing
gear. Tighten axle to landing gear.
Note: Test fit wheel pant alignment to main gear
prior to tightening axle
10. Install the inner wheel collar on the axle. Use a
drop of blue Loctite on the wheel collar set
screw and secure the wheel collar in place.
11. Install the wheel and outer wheel collar. Use
blue Loctite on the wheel collar set screw before
final tightening.
12. Slide the lock washer then the flat washer on the
wheel pant mounting bolts. Use blue Loctite on
the bolts before final tightening.
