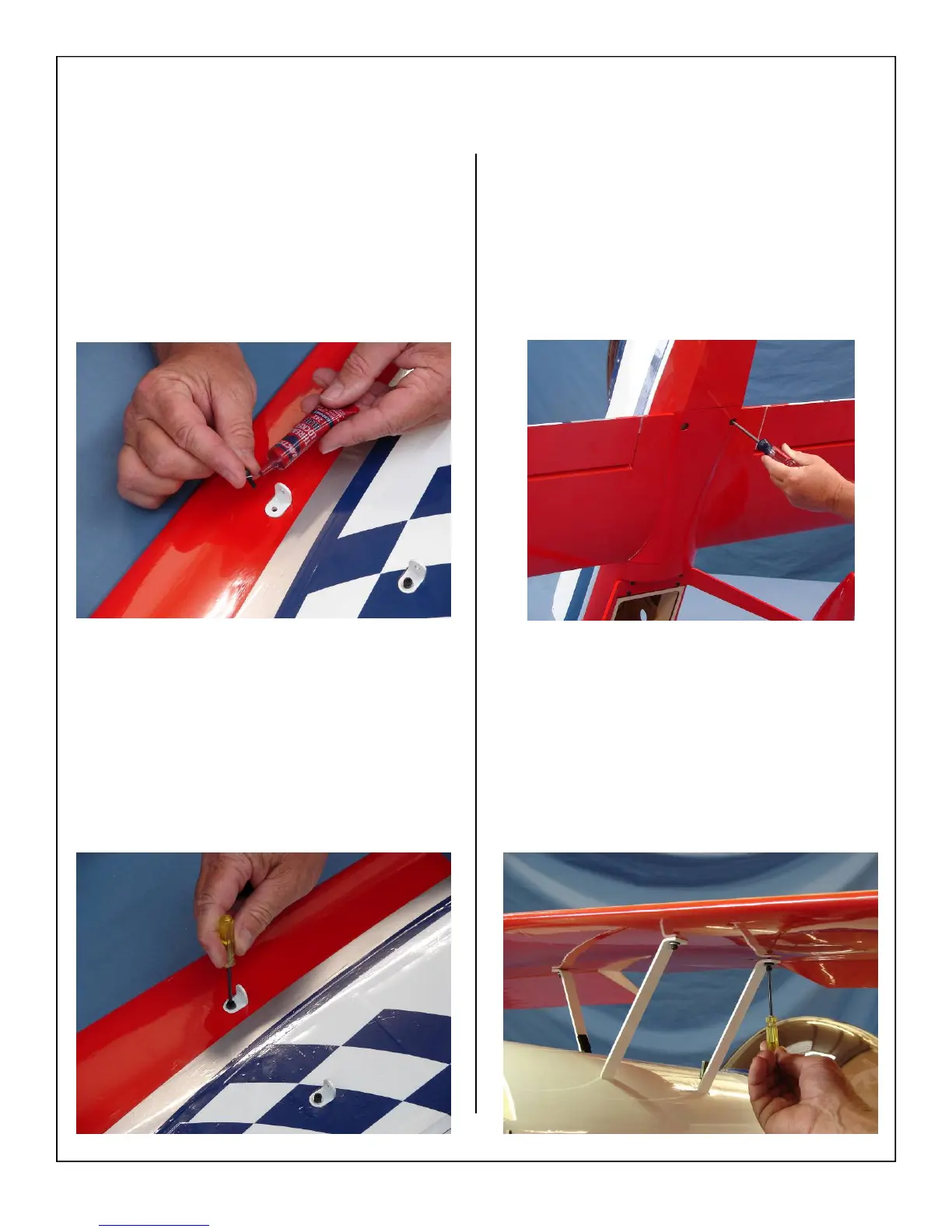

17. Install using 4-40 x 10mm bolt, #6 flat washer
and Blue Loctite to secure
18. Securely tighten L bracket into place
19. Attach bottom wing using provided nylon 1/4-20
x 2” mounting bolts.
20. Attach top wing to Inner cabane using 4-40 x
15mm bolts and #6 Bonded washers.
Note: Bonded washers will prevent bolts from
coming loose from engine vibration. But
will still allow the bolts to be installed and
removed easily during assembly and
disassembly of top wing.
