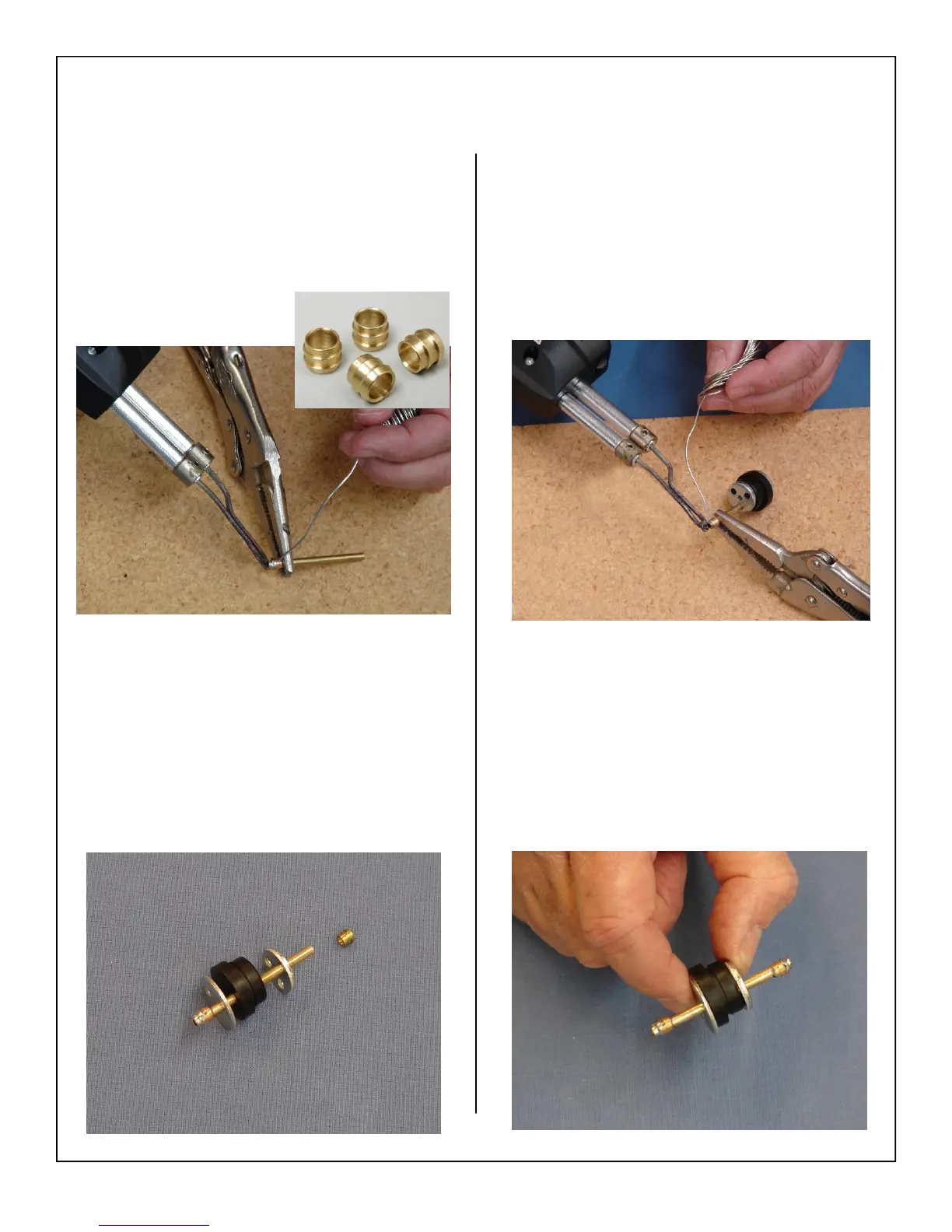

3. Locate the (4) supplied brass fuel barbs. Two for
the fuel tank and Two for the smoke tank. Solder
a brass fuel barb to the fuel line pick up tube.
This will keep the weight of the fuel clunk from
pulling the fuel line off the brass tube.
Note: No brass barbs are required for the air vent
lines.
4. Assemble the fuel pick up line, rubber stopper
and metal end caps. As shown below.
5. Solder a brass fuel barb to the other end of the
fuel pick up line.
6. Final assembly of rubber fuel stopper with fuel
pick up tube shown below.
