74

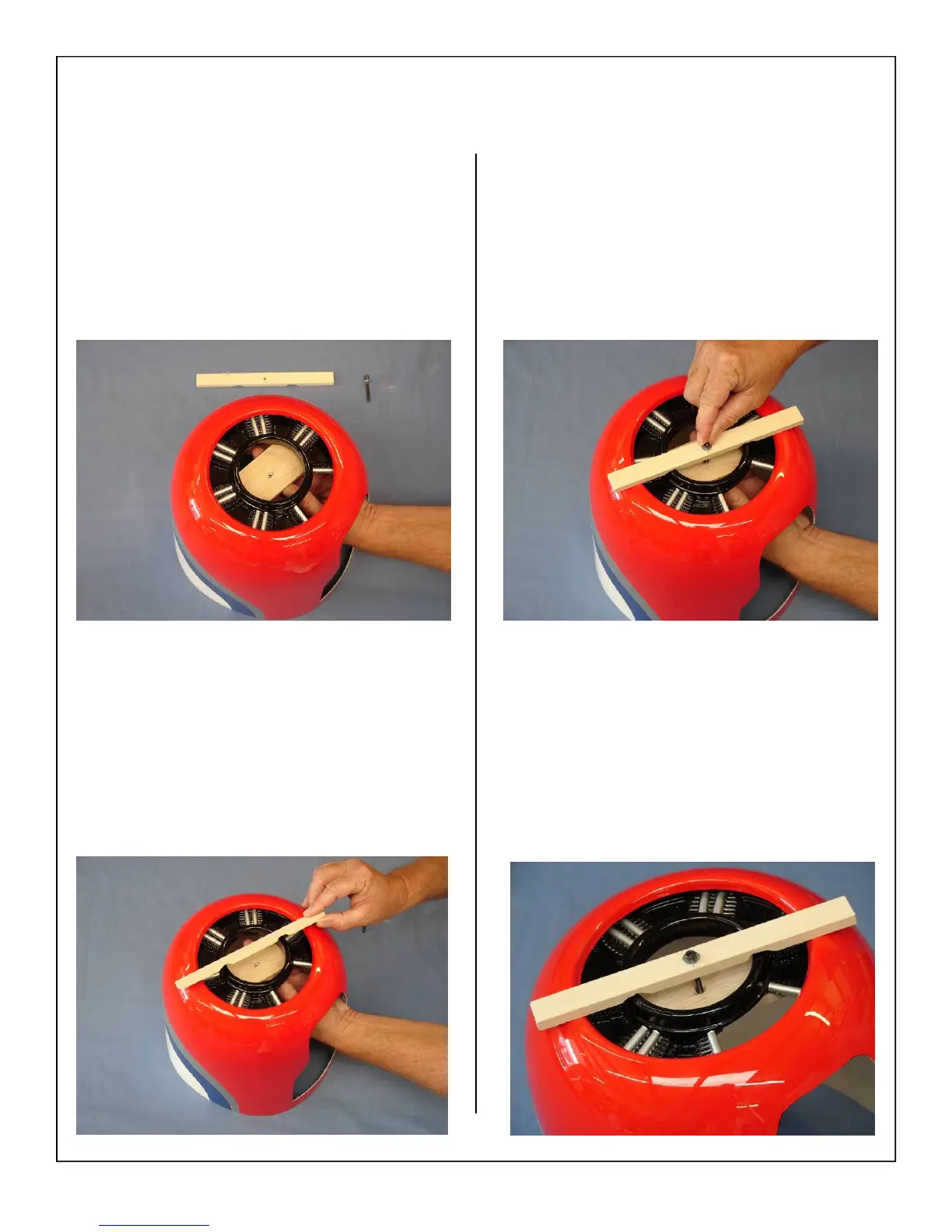

3. Insert and lift into position the dummy radial
engine and alignment jig back plate.
4. Place front jig plate into position aligning the
cutouts of front plate over the ring of dummy
radial engine
5. Place bolt and washer through front jig plate and
screw into blind nut in jig back plate. Hand
tighten only it is not necessary to over tighten
the jig plates.
6. Correct installation of alignment jig shown
below
