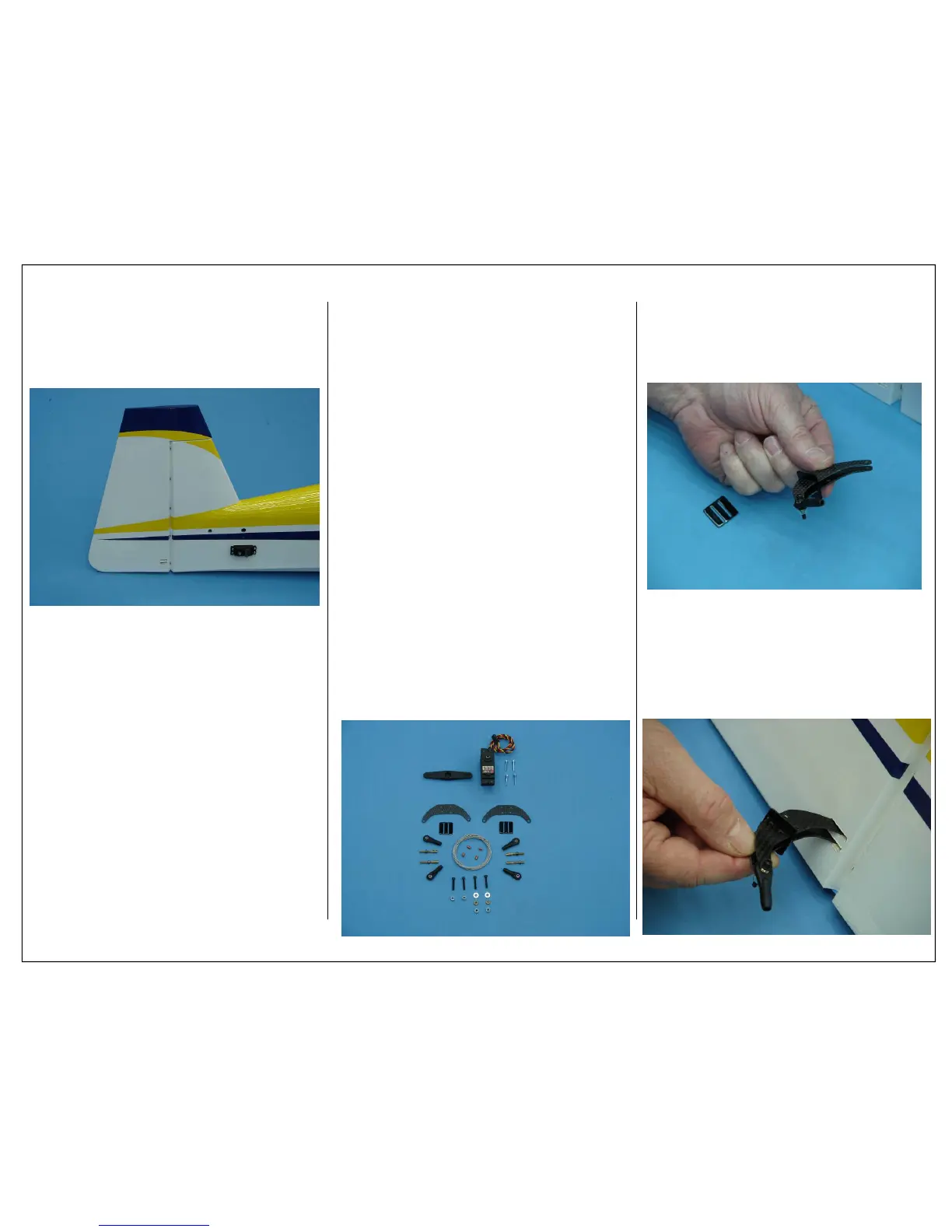

Aeroworks 30cc Freestyle Extra 260 Assembly Manual 15
1. Gather the items shown below for the installa-
tion of the rudder servo and pull-pull cables.
Required Parts
◊ 2 - Double Truss Carbon Control
Horns- Dual output
◊ 2 - Control Horn Base Plates
◊ 2 - Pull-Pull Cables
◊ 4 - Brass Swag Tubes
◊ 4 - 4-40 Ball Link Couplers
◊ 4 - 4-40 Ball link Assemblies
◊ 4 - 4-40 x20mm Bolts
◊ 4 - 4-40 Flat Washers
◊ 4 - 4-40 Lock Nuts
Required Parts-Not Included
◊ 1 - Rudder Servo w/ mounting hardware
◊ 1 - 3” Double Output servo arm
Required Tools and Adhesives
◊ 1/16” Ball Driver
◊ Small Phillips screw Driver
◊ Wire Cutters
◊ Pliers
◊ 1oz Bottle Thick CA Glue
◊ Masking Tape
RUDDER SERVO/PULL-PULL
INSTALLATION
7. Ensure there is no gap between fin and rudder.
Allow epoxy to fully cure. Check that you have
full rudder deflection before epoxy fully cures.
2. Install control horn base plate and 4-40 ball link
between upper and lower dual output control
horns as shown. Remaining 4-40 ball link and
base plate will be installed in a later step.
3. Slide upper and lower rudder horns through the
pre-cut slot in the rudder as shown below.
To Next Page
