24 Aeroworks 30cc Freestyle Extra 260 Assembly Manual
2. The tapered edge of the landing gear goes to the
back of the airplane.
3. Attach the landing gear with 6 -32 bolt, lock
washer and flat washer. Use a drop of blue Loc-
tite on landing gear bolts before attaching the
landing gear.
4. Bolt landing gear to fuse with (4) 6-32 bolts and
washers.
5. Install the axle into the gear strut with lock nut.
Lightly tighten axle lock nut at this time.

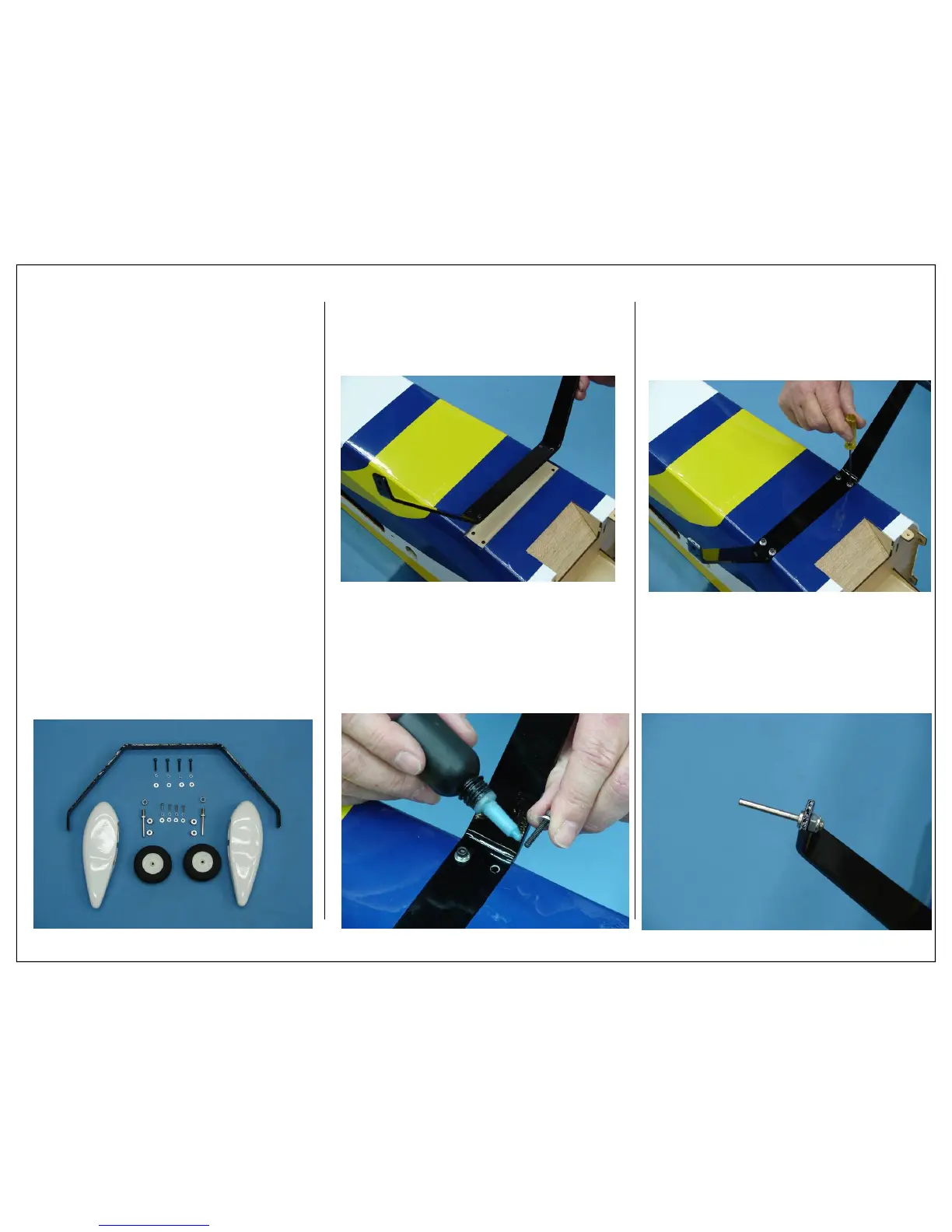

MAIN LANDING GEAR AND
WHEEL PANT INSTALLATION
1. Gather the following items shown below for the
main landing gear assembly.
Required Parts
◊ 1 - Carbon Landing Gear
◊ 2 - 3” Foam Tires
◊ 2 - Axles with Lock Nuts
◊ 4 - Wheel Collars
◊ 4 - 6-32 Mounting Bolts
◊ 4 - 6-32 Lock Washers
◊ 4 - 6-32 Flat Washers
◊ 2 - Wheel Pants
◊ 4 - 4-40 Bolts
◊ 4 - 4-40 Lock Washers
◊ 4 - 4-40 Flat Washers
Required Tools and Adhesives
◊ 1 - 9/64” Ball Driver
◊ 1 - 12mm Open End Box Wrench
◊ 1 - .34oz Bottle Blue IC-Loc Thread Locker
