Aeroworks 30cc Freestyle Extra 260 Assembly Manual 37

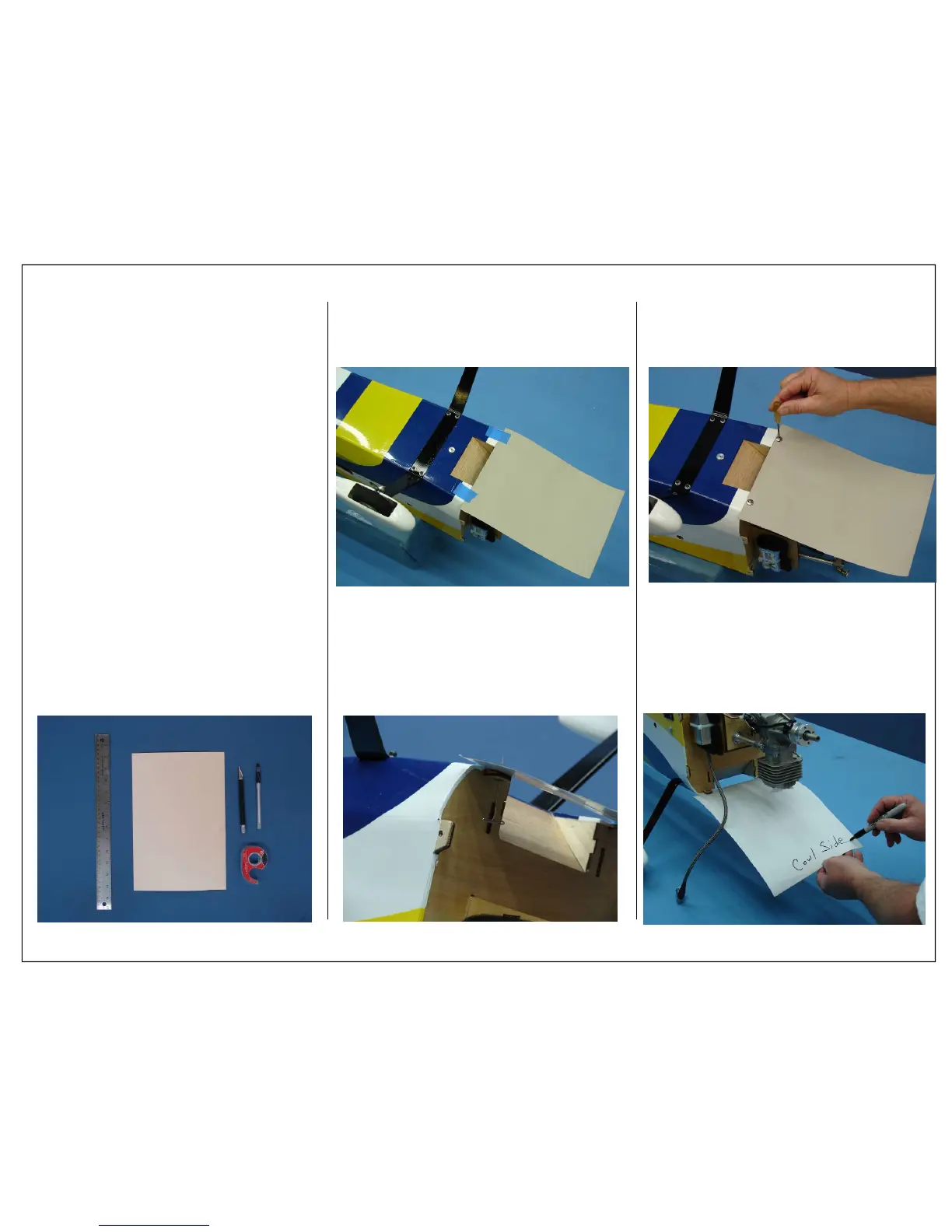

2. Tape template material to bottom of fuse with
masking tape as shown.
3. Use a “T” pin to mark the location of the bottom
cowl mounting tabs as shown
4. Install 4-40 cowling mounting screws through
template material and into the bottom cowl
mounting blocks.
5. Mark the side of the template that will come in
contact with the cowling. This will help when
transferring the cut out locations onto the cowl.
COWL INSTALLATION
1. Gather the following items for the cowling in-
stallation.
Required Parts
◊ 1 - 30CC Freestyle Extra 260 Cowling
◊ 1 - 8 x 11” Card Stock for Muffler Template
◊ 1 - Front Air Inlet Template (Not Shown)
Required Tools and Adhesives
◊ 1 - Felt tip pen
◊ 1 - Masking Tape
◊ 1 - Rotary Cutting tool with Cutting Disk
To Next Page
