36 Aeroworks 30cc Freestyle Extra 260 Assembly Manual

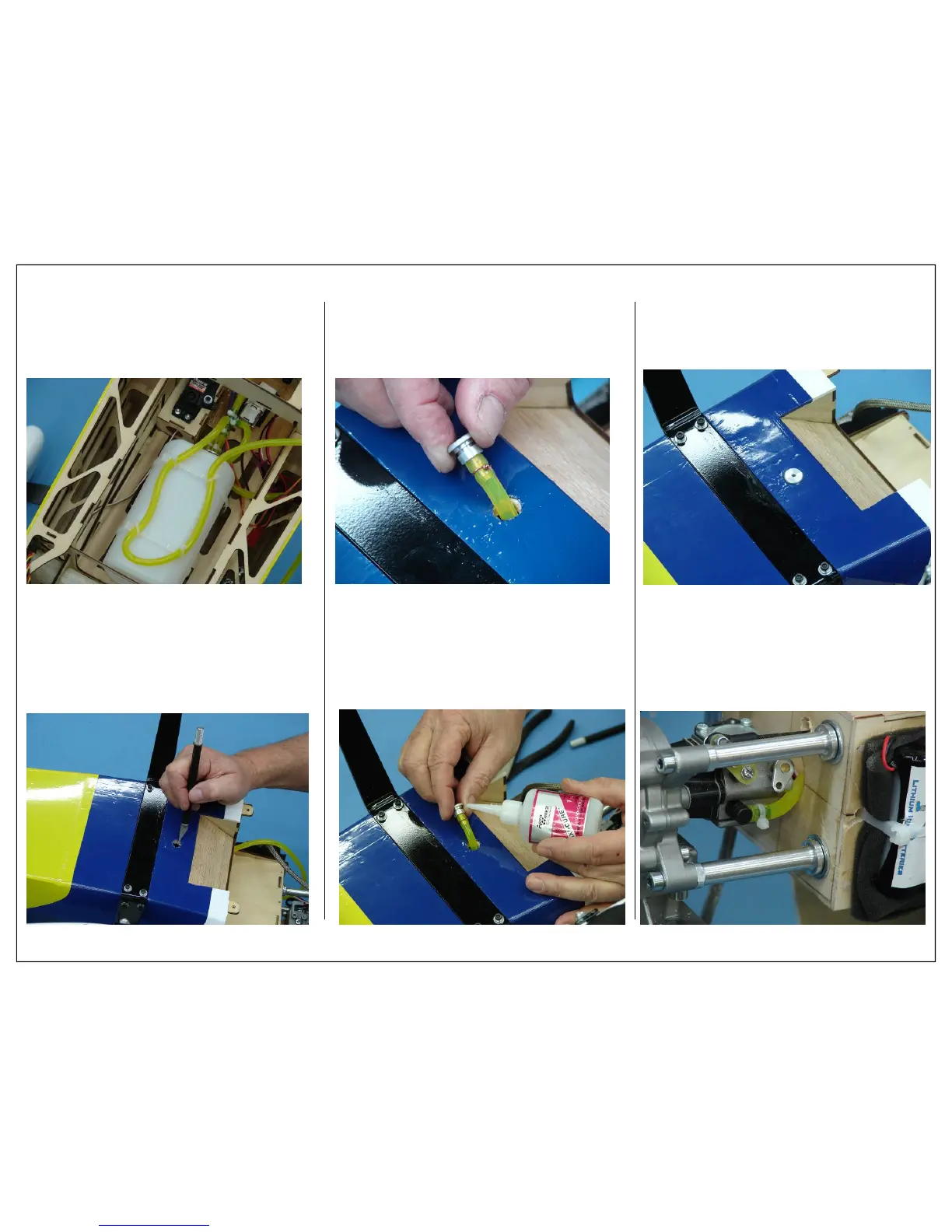

14. Route the vent line on top of the fuel tank and
secure with small nylon ties as shown. This will
stop excess fuel from draining out the vent line
during an extended down line or when lifting the
tail.
15. Use a hobby knife to cut a hole in the bottom of
the fuse forward of the landing gear plate to al-
low the fuel vent exit dot to pass through.
16. Route the vent line through the hole made in the
previous step and attach to the fuel vent exit dot.
Use safety wire (Supplied) to secure fuel tubing
to fuel vent exit dot
17. Use thick CA to secure fuel vent exit dot in fuse.
18. Finished fuel vent exit dot installation shown
below.
19. Secure fuel pick up line to engine carburetor
with small nylon tie.
To Next Page
