Maintenance
DD+DIS014.02E
Section 12 / 10 ADC Compact Edition 2, Revision 8
(Type 5145 / 100/101/140/200/201/240)
Lamps (2) Remove the pane 4
(figure 12)
(3) Remove all lamps 1
(figure 12)
Do not lift the spring-
loaded contacts by hand
otherwise the spring
might be stretched too
far.
(4) Dust the following parts:
- Reflector
- Input and output opening of
the air stream (protection
grid) 2 (figure 12)
- Outer front pane 4
(figure 12)
- KG2 filter 3 (figure 12)
In case of persistent dirt, you may also
use ADC Cleaner for cleaning all the
surfaces with the exception of the inner
side of the large glass plate (arrow at 4,
figure 12). This side must not be cleaned
with anything wet since a gelatin layer is
attached to it.
(5) Check the KG2 filter 3 for
damage and replace if
necessary.
(6) Check the sockets of the
lamps for burn and replace if
necessary.
Do not touch the lamps
with your bare fingers!
Use a soft cloth to insert
the lamp.
(7) Re-insert the Erasure unit.
514512cx.cdr
1
2
3
4

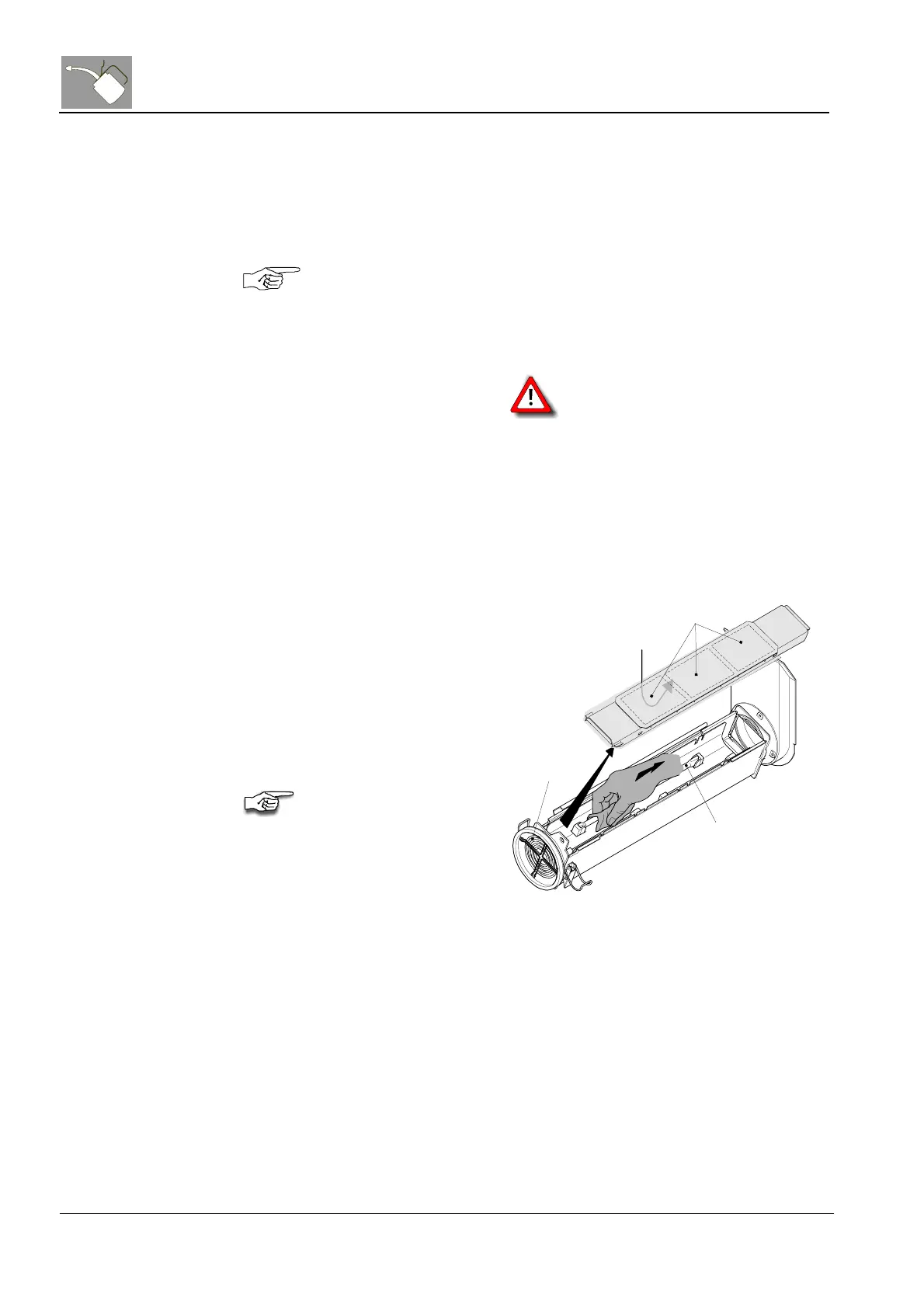

Figure 12
