AGFA 5145 - Cassettes; Image Plates

DD+DIS014.02E
Maintenance
Edition 2, Revision 8 ADC Compact Section 12 / 11
(Type 5145 / 100/101/140/200/201/240)
3.9 Cassettes

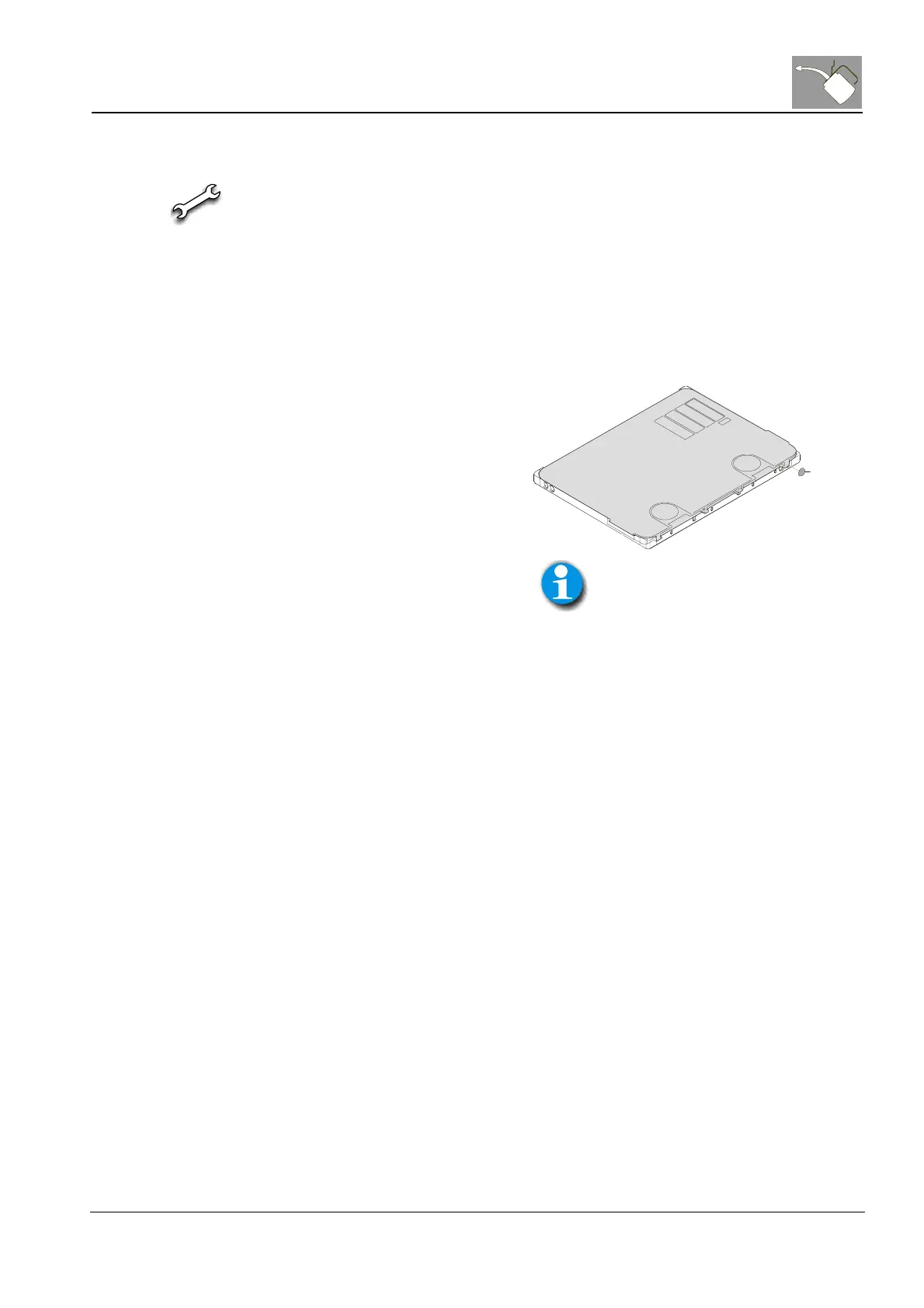

· Aluminum label
(CM+9.8300.1131.0)
Visual Check
(1) Check cassettes from
customers´ “usage counter”
(about 5 to 10 cassettes per
format) for damage.
(2) Check the most frequently
used cassettes and image
plates for damage. If
damage is noticed, check
further cassettes.
(3) Check the following test
points of the cassette:
- Outside condition
- Hinges
- Locking
- Opening leaf springs
- Aluminum label
A
LU L
A
BEL
5
1
4
6
0
9
A
A
.
C
D
R
(4) Attach missing aluminum
label
The digitizer needs the aluminum
label to recognize ADC cassettes.
3.10 Image Plates
Visual Check
(1) Check if there are scratches
on the surface.
(2) Check if edges are loose as
an indication for mechanical
problems at IP transport.
