AGFA 5145 - Inside; Cassette Unit; Power Unit

Maintenance
DD+DIS014.02E
Section 12 / 6 ADC Compact Edition 2, Revision 8
(Type 5145 / 100/101/140/200/201/240)

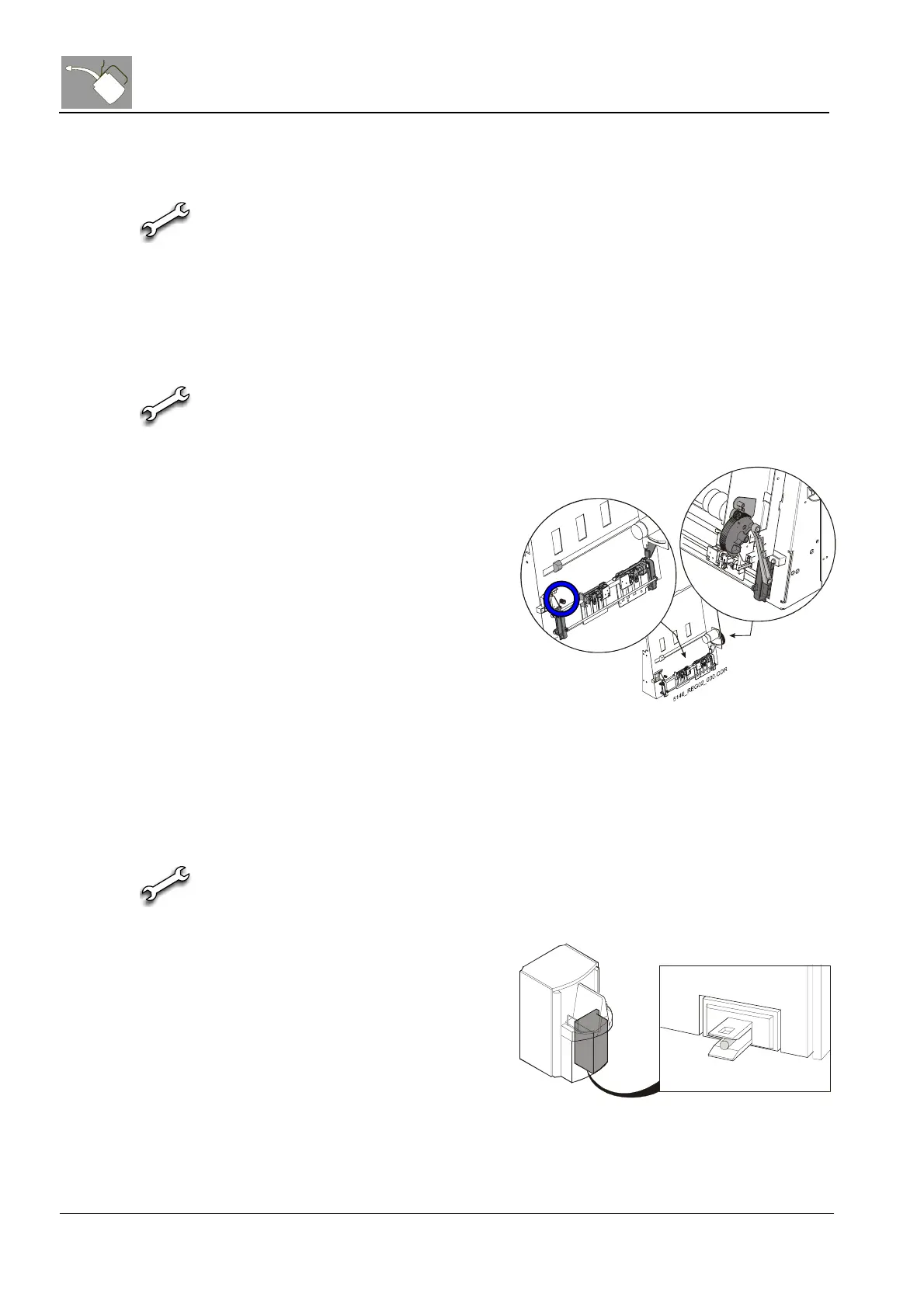

3.2 Inside
· Vacuum cleaner
· Lint free cloth
(1) Vacuum the inside of the digitizer and wipe it.
3.3 Cassette Unit
· Dust brush
· Roller
(CM+9.5145.9100.0)
· Toothed belt
(CM+9.5145.5195.0)
Opener
mechanism
(1) Clean the opener mechanism
with a soft dust brush.
(2) Check roller (see small circle)
for visible wear and replace if
necessary.
In any case replace the roller
once a year.
Figure 2
Belt
(3) Exchange the toothed
transport belt once a year.
3.4 Power Unit
· Soft cloth
· Air filter
(CM+9.9576.1801.0)
Safety switch
(1) Open the doors of the digitizer
while the machine is switched
on.
(2) As soon as the left door is
opened only a little all
assemblies must be
deenergized.
514512AL.CDR
Figure 3
