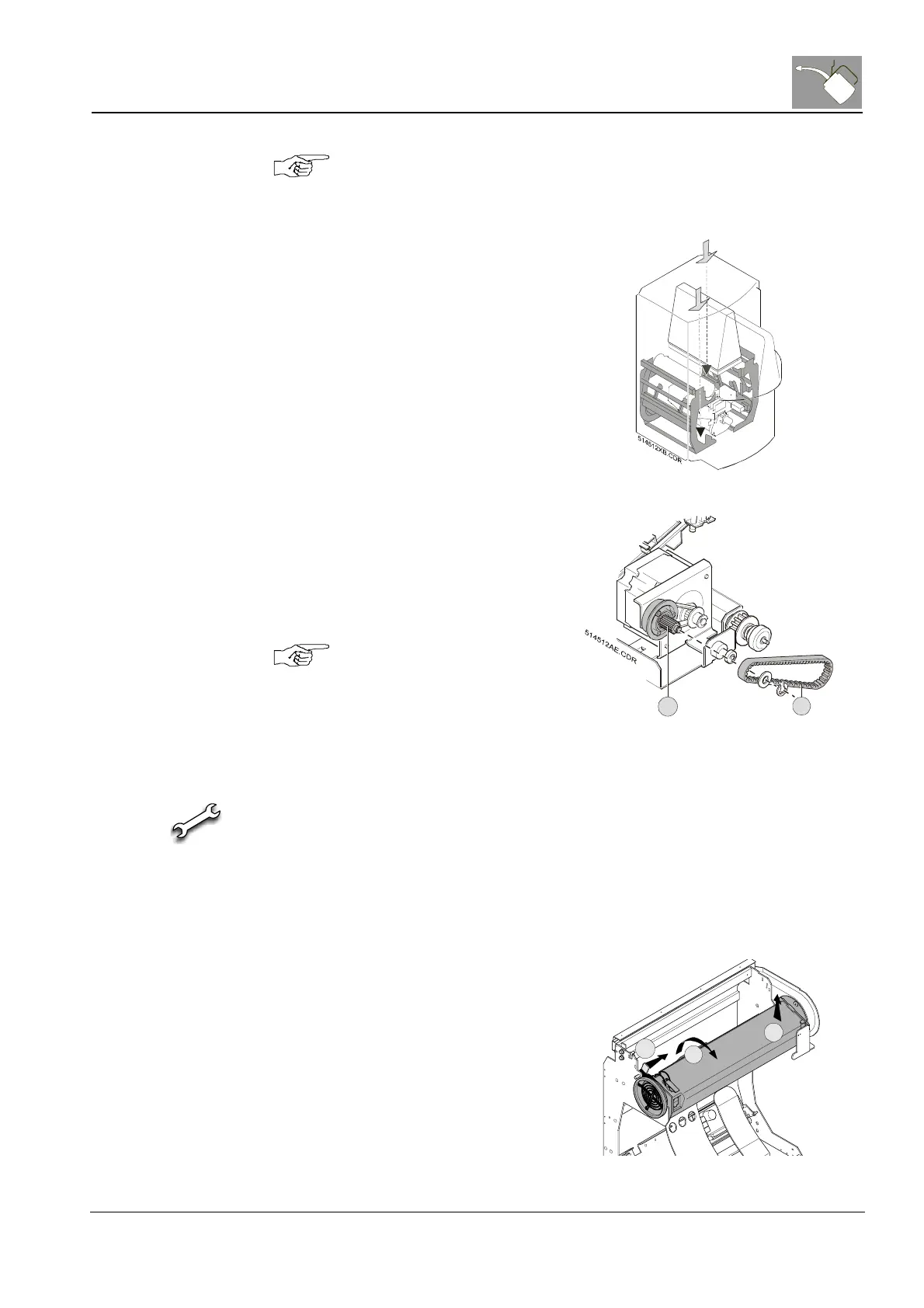

DD+DIS014.02E
Maintenance
Edition 2, Revision 8 ADC Compact Section 12 / 9
(Type 5145 / 100/101/140/200/201/240)
Advanced robot
For advanced robot it is
not necessary to
exchange toothed belts.
Standard robot
(5) Check the outer thooted belt of
both transport units for
damage and replace if
necessary.
Figure 9
(6) Replace the belt in any case
once a year.
(7) Check toothed belt pulley B
when the belt A is removed
and replace if damaged.
Adjustment of toothed belt,
see Section 6.6.
B
A
Figure 10
3.8 Erasure Unit
· Soft cloth
· ADC Cleaner
(if not available, use water)
· 2 x 1000 W lamps
(CM+9.0450.6558.0)
· 1 x 2000 W lamps
(CM+9.0450.6559.0)
(1) Remove the complete
Erasure Unit by following the
sequence and arrows in
figure beside.
A
B
C
Figure 11
