AGFA XD 14 - System Control Unit

System Control Unit
The System Control Unit is connected to the DR Detector via wireless network
or via the DR Detector cable.
The System Control Unit is connected to the X-ray generator to synchronize
the exposure, in a configuration with X-ray generator synchronization.
The System Control Unit is connected to the workstation via wired network.
Depending on the configuration, the System Control Unit may not be part of
the system.
1
2
1
2
1.
Power switch
2.
Status indicator
• Blinking green: starting up
• Green: ready
• Blue: communicating to the detector

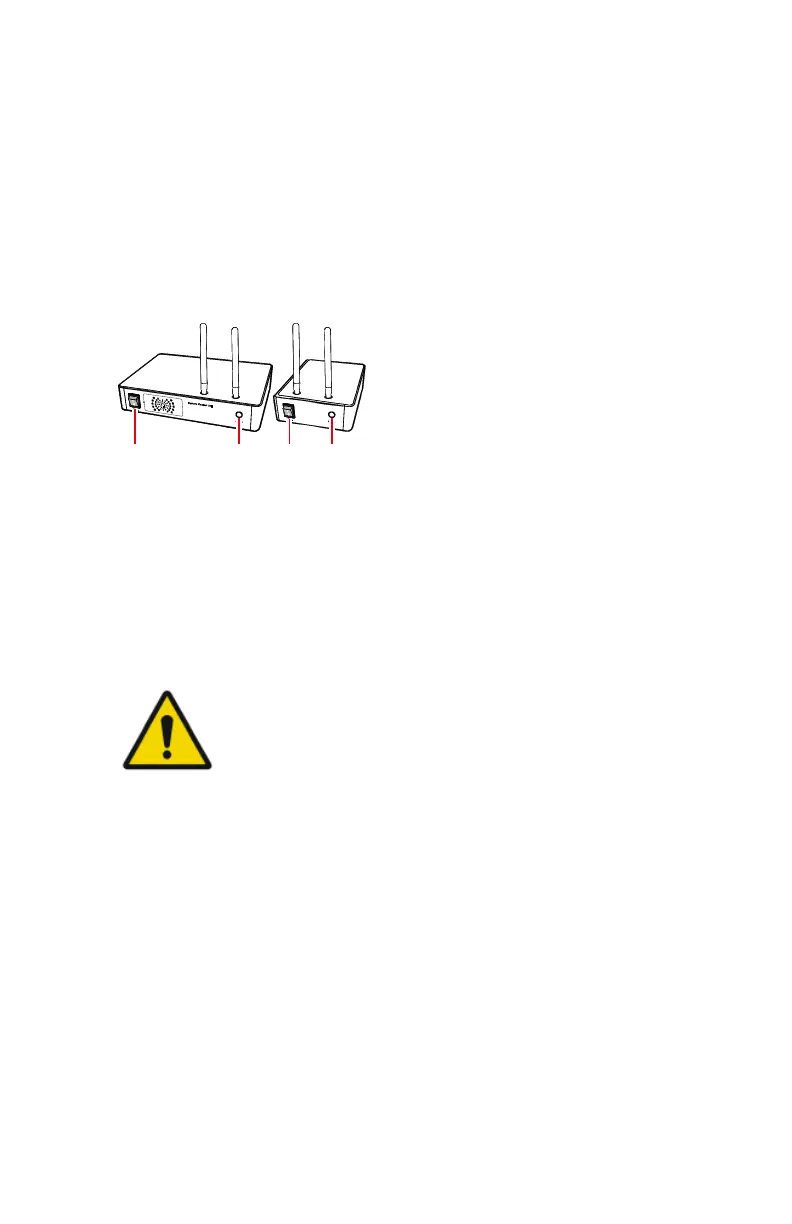

Figure 6: System Control Unit (SCU) and Mini System Control Unit (Mini
SCU)
WARNING:
Do not use the System Control Unit within the patient’s vicinity.
