14 16900 Series Logic Analysis Systems Installation Guide
1 Setting Up Hardware
To connect the mouse, keyboard, and monitor
The 16900A logic analysis system must have the system mouse and
keyboard connected for the system to boot up properly. Once enabled on
the LAN, the system can be operated remotely without a keyboard or
mouse. Use of a monitor is optional for the 16901A, 16902A, 16902B, and
16903A.
(The following rear panel figures are representative; yours may look
different.)

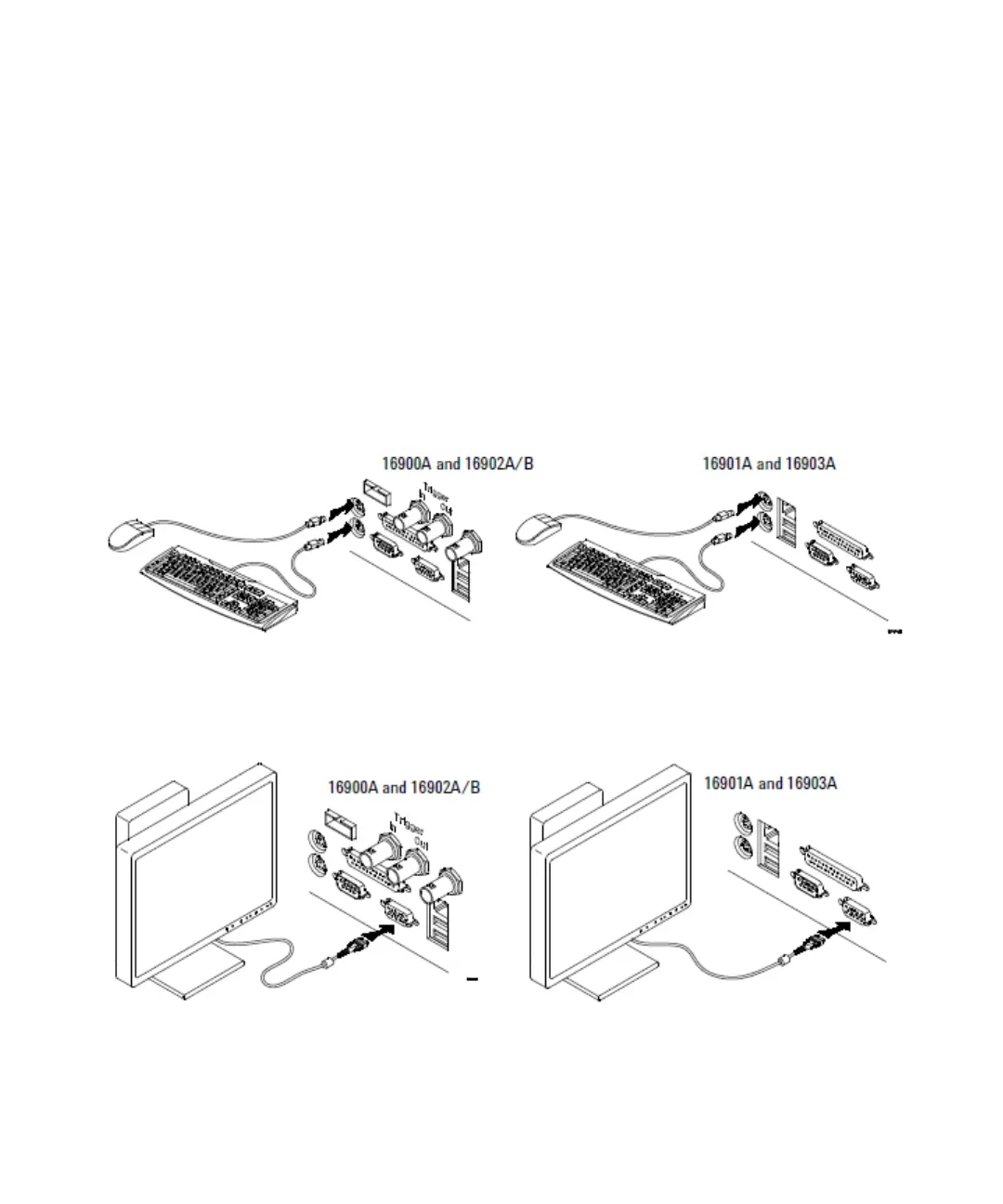

1 Connect the provided PS/2 mouse and keyboard provided to the back of
frame.
2 Connect a monitor to the back of the 16900A. A second monitor on the
16901A, 16902A, 16902B, or 16903A is optional.
