Installing Pattern Generator Cards 3
16900 Series Logic Analysis Systems Installation Guide 75

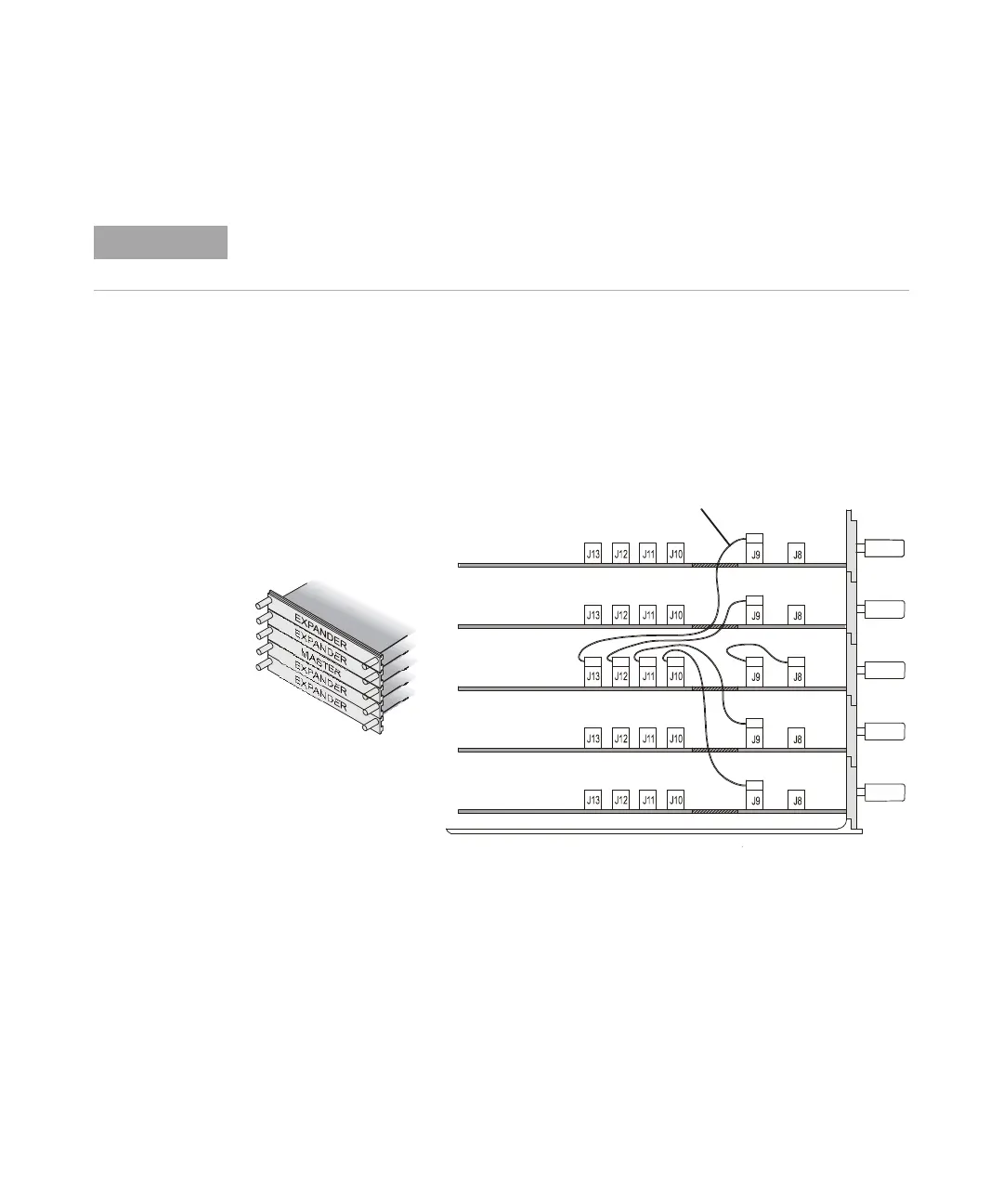

16720A Pattern Generator (5-card module)
1 Carefully slide the 4 cards half way into the mainframe slots.
2 Use five 2 x 10 cables to connect the modules. Cable the bottom two
Expander Cards to the Master Card first. Then cable the upper two
Expanders to the Master Card.
3 Gently slide the cabled assembly fully into the frame and tighten the
thumb screws.
Turn off the mainframe power before removing, replacing, or installing modules. For
instructions on installing modules into the logic analysis system frame, refer to page 26.
Expander
Expander
Master
Expander
Expander
2x10 Cable
To Next Page
