Installing Logic Analyzer Cards and Probes 2
16900 Series Logic Analysis Systems Installation Guide 57
16911A/10A Logic Analyzer (5-card module)

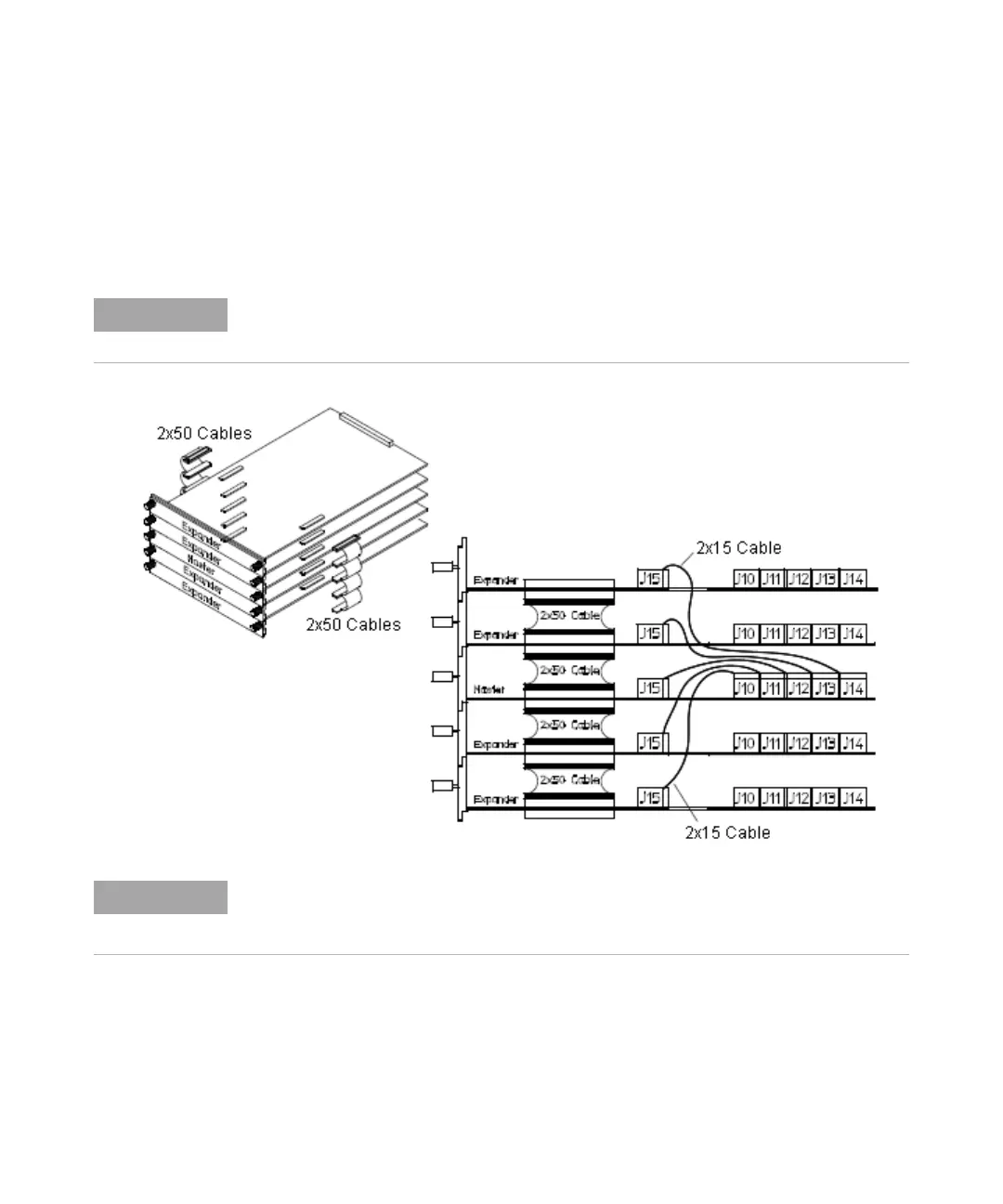

Use five 2 x 15 cables and eight 2 x 50 cables (in the accessory pouch) to
connect the modules.
Turn off the mainframe power before removing, replacing, or installing modules. For
instructions on installing modules into the logic analysis system frame, refer to page 26.
You can combine the same model numbers only (16910A in a 5-card set or 16911A in a
5-card set). The combined set will default to the lowest state speed and memory depth in
the set.
