Installing Logic Analyzer Cards and Probes 2
16900 Series Logic Analysis Systems Installation Guide 43
16951/50B Logic Analyzer (1-card module)

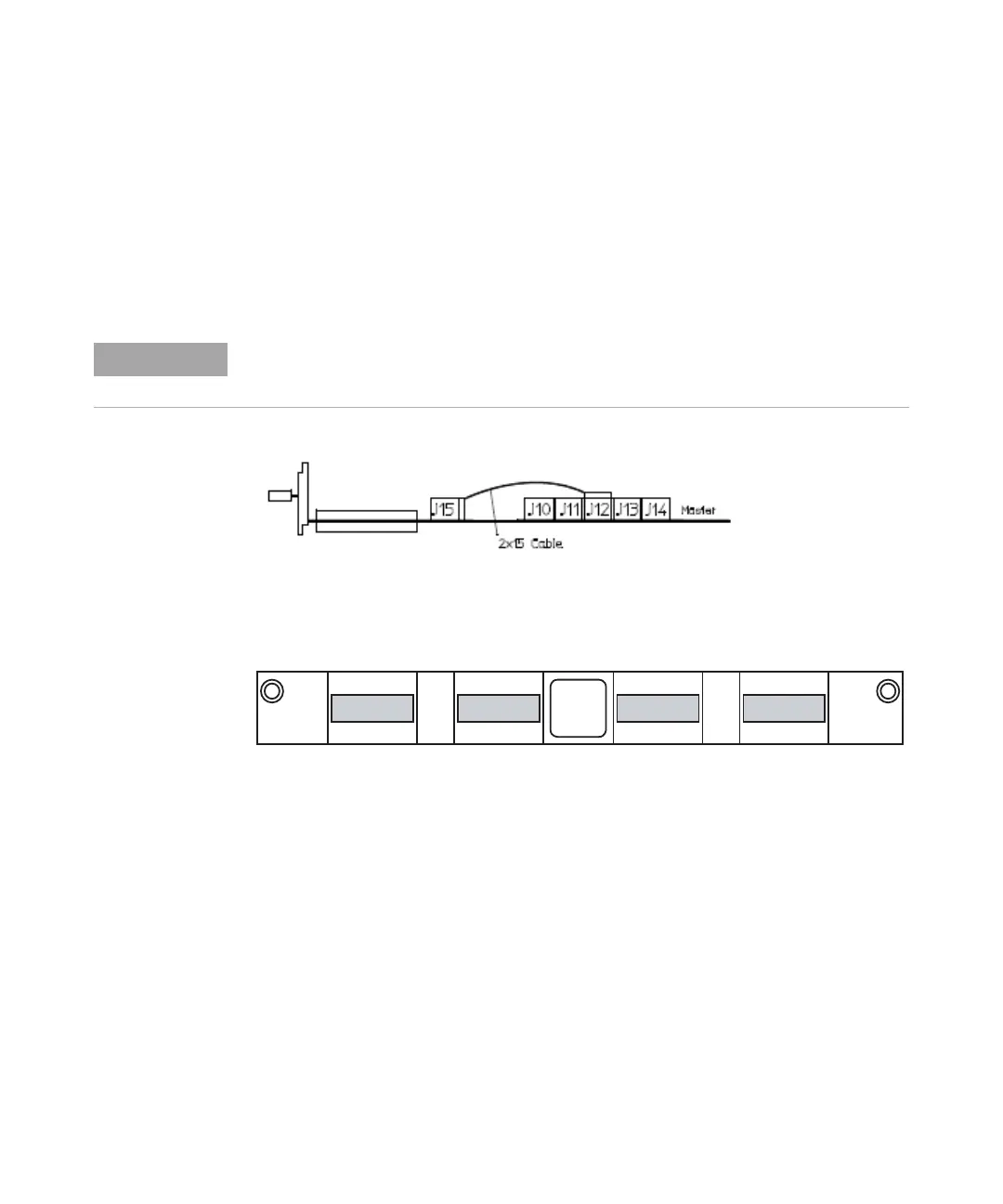

Each card shipped stand- alone has the 2 x 15 cable connected in the
single- card module configuration. The 2 x 50 cables in the accessory
pouch are not used. A single- card module can be installed in any available
slot.
The order of pods on the card’s rear panel is:
In a multi- card set, pods are indexed starting with the master card, then
with the expander cards from the bottom up.
Turn off the mainframe power before removing, replacing, or installing modules. For
instructions on installing modules into the logic analysis system frame, refer to page 26.
