Installing Logic Analyzer Cards and Probes 2
16900 Series Logic Analysis Systems Installation Guide 45

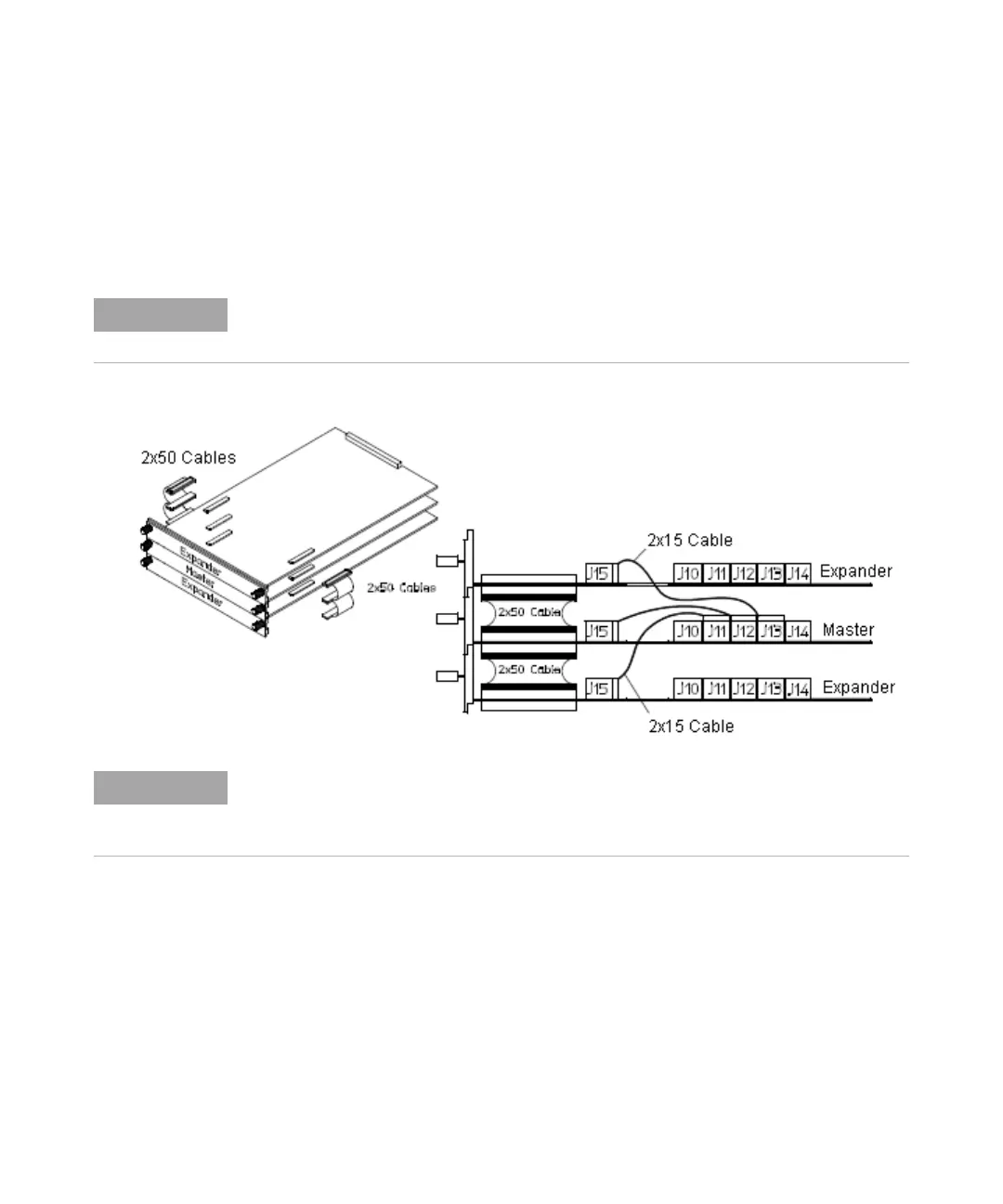

16951/50B Logic Analyzer (3-card module)
Use three 2 x 15 cables and four 2 x 50 cables (in the accessory pouch) to
connect the modules.
Turn off the mainframe power before removing, replacing, or installing modules. For
instructions on installing modules into the logic analysis system frame, refer to page 26.
The 16950B logic analyzer module must only be combined with other 16950B modules.
Likewise, the 16951B logic analyzer module must only be combined other 16951B modules.
A 16950B combined set will default to the lowest memory depth in the set.
