Installing Logic Analyzer Cards and Probes 2
16900 Series Logic Analysis Systems Installation Guide 31

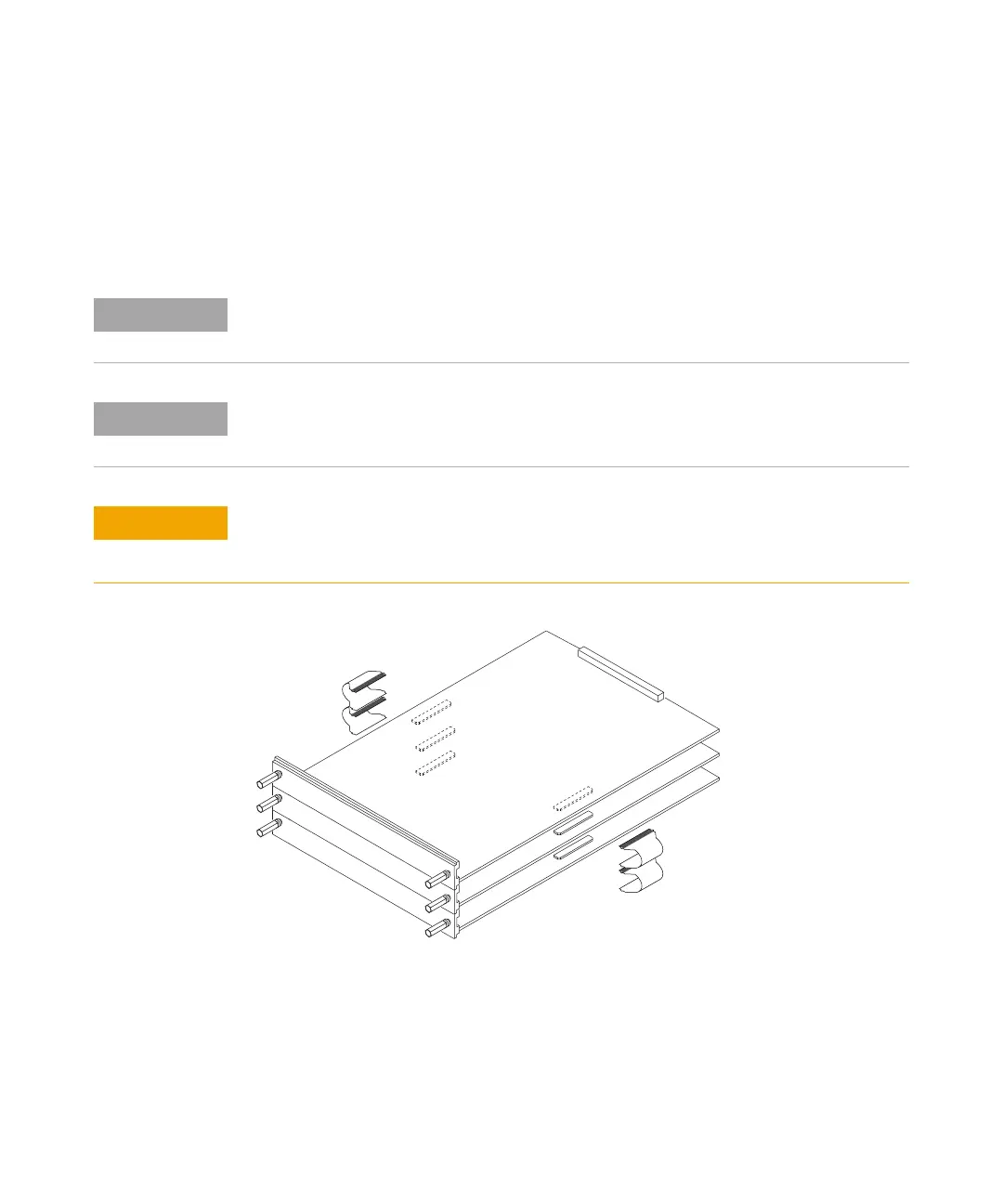

16962A Logic Analyzer (2-card, 3-card, and 4-card modules)
Between cards, use a pair of 16960- 61602 flex cables (in the accessory
pouch) to connect the modules.
The 16962A logic analyzer module must only be combined with other 16962A modules. A
16962A combined set will default to the lowest memory depth in the set.
Turn off the mainframe power before removing, replacing, or installing modules. For
instructions on installing modules into the logic analysis system frame, refer to page 26.
When removing cards that are connected together as multiple-card modules, be sure
to eject the multiple cards simultaneously, otherwise, the flex cables and/or
connectors could be damaged.
