94 16900 Series Logic Analysis Systems Installation Guide
5 Setting Up Multiframe Configurations
5 Power down all of the frames and the performance PC.

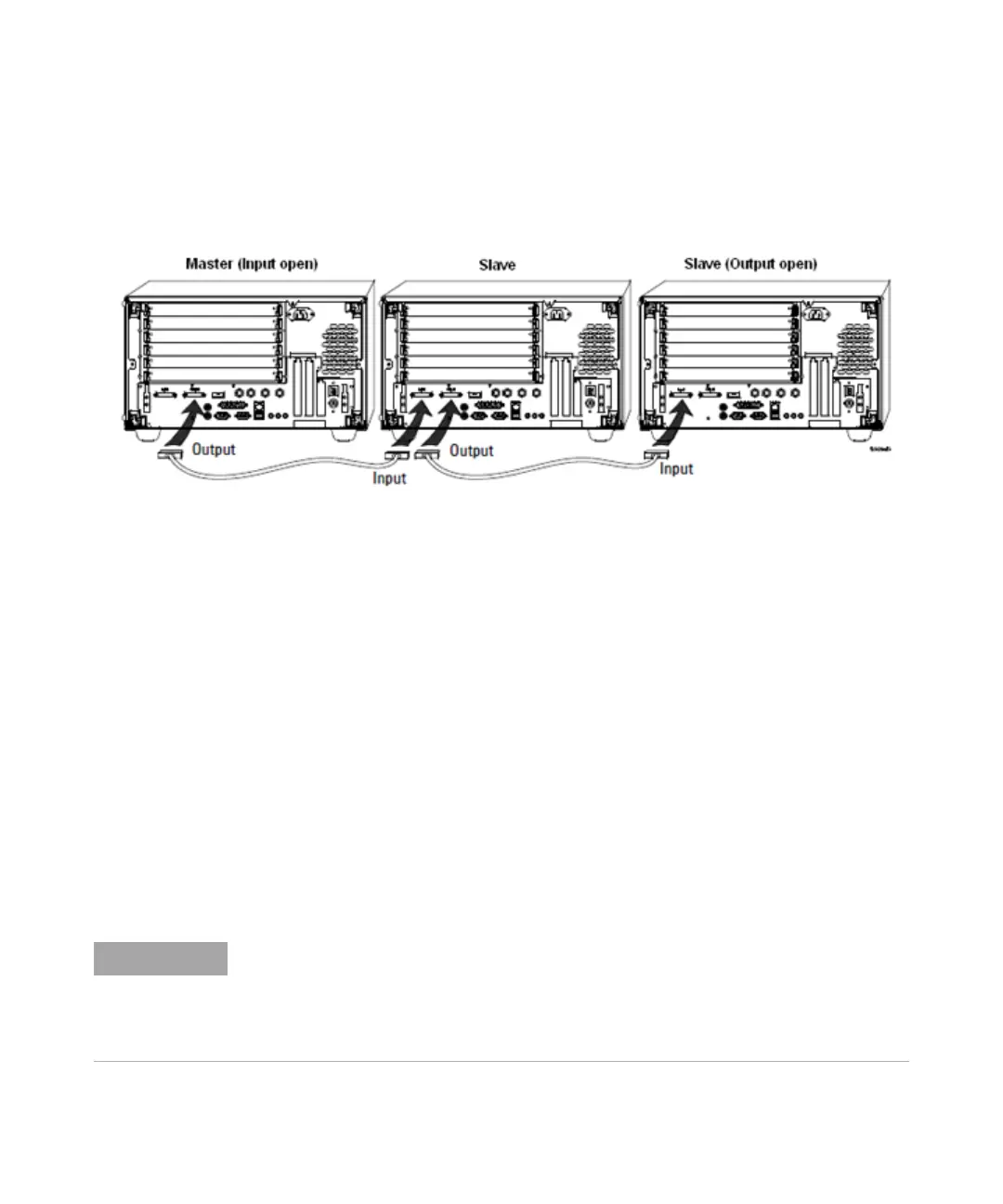

6 Connect multiframe cables between the frames as shown.
One frame’s output is connected to the next frame’s input. Connect
multiple frames in sequence with the final frame having no output
connected.
7 Power up the individual frames.
• Start with the master frame and wait for the system to boot to the
desktop (a login might be required) and the Agilent Notification
Center Icon in the system tray to go green, indicating that the system
is ready.
• As the operating system loads, it will:
• Configure the LAN connection.
• Start various services.
• Start the logic analyzer service and the Agilent Notification Center.
• Proceed to the next slave frame in sequence and boot it to the ready
state.
• Continue until all the multiframed systems are started and ready.
If your Operating Systems are set up to require a login and a password, you do not need to
fully login. The logic analyzer service will start automatically when the system starts and
the multiframe connection will succeed, but you will have no visual indication via the
Agilent Notification Center tray icon of when the system is ready. So an appropriate delay
will be required before proceeding with the next system.
