Agilent Technologies 33250A Service Guide

147
Chapter 6 Service
Disassembly
4
6
Front-Panel Disassembly

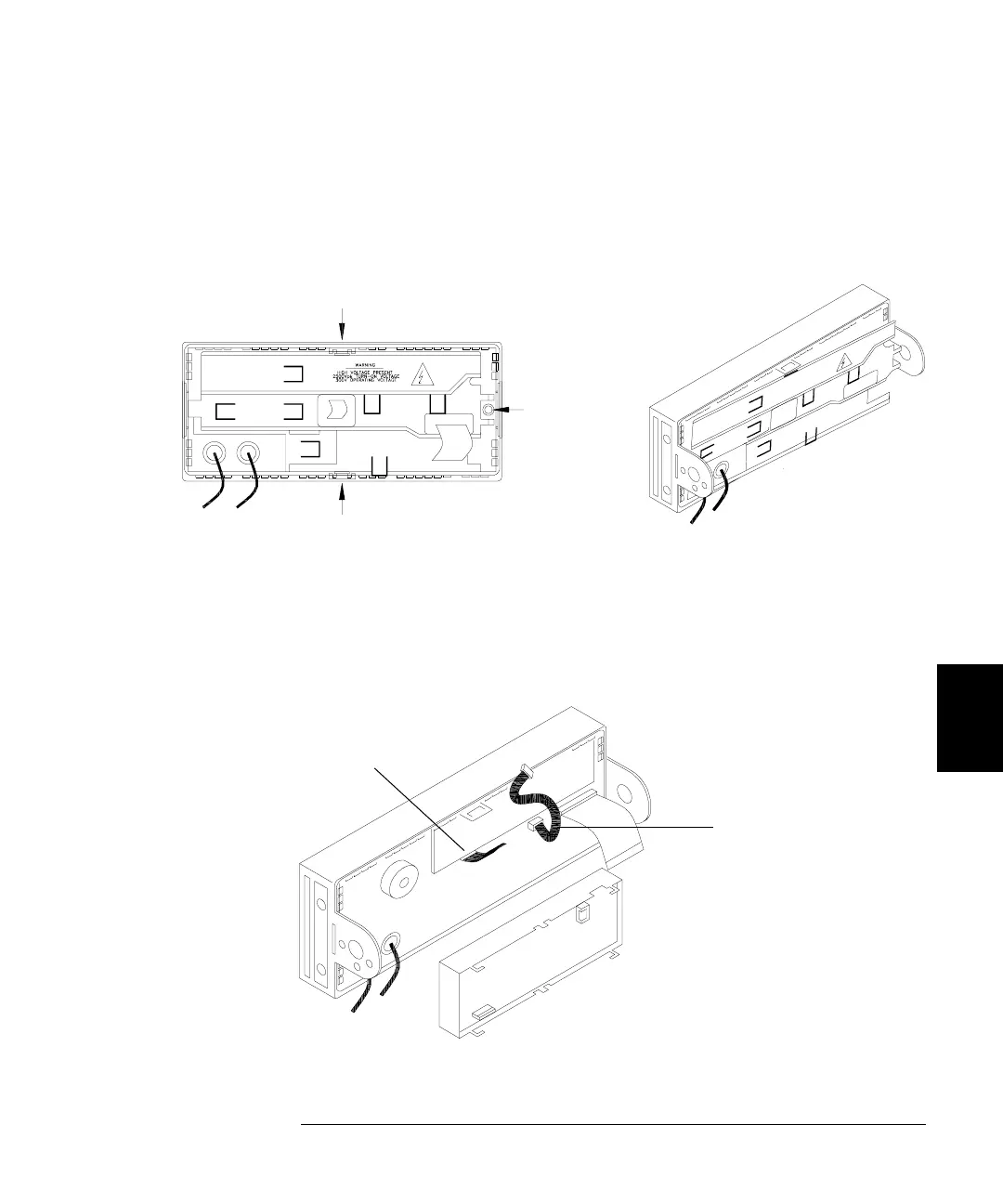

1 Remove the captive screw holding the safety shield. Carefully pry the
RFI shield clips out of the slots in the safety shield and remove the
safety shield.
2 Unplug the inverter cable on the display assembly. Lift up the clamp and
unplug the ribbon cable. Lift out the display assembly.
Captive
Screw
RFI Clip
RFI Clip
Ribbon Cable
Inverter Cable
