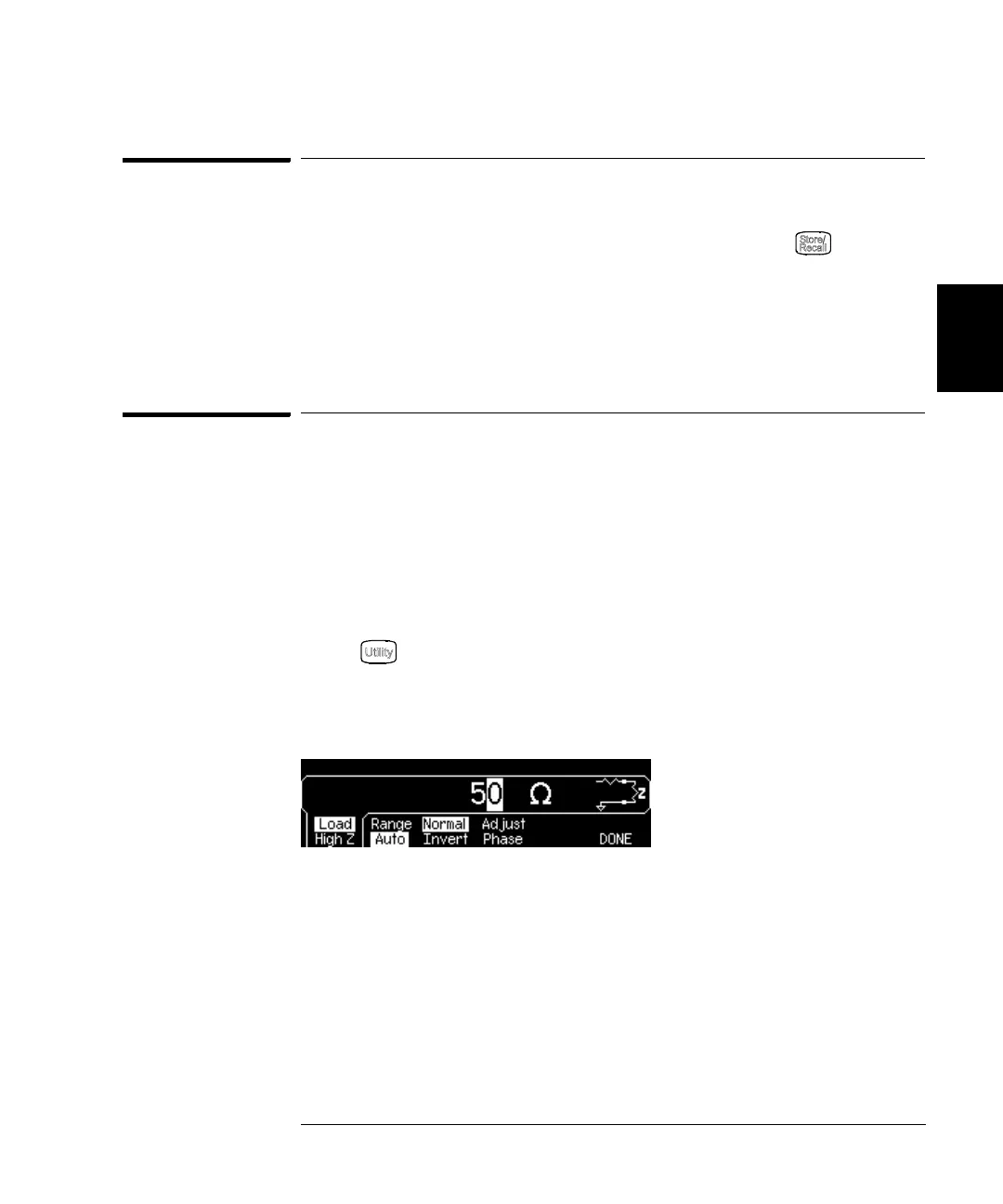

Chapter 3 Front-Panel Menu Operation
To Reset the Function Generator
4
3
To Reset the Function Generator
To reset the instrument to its factory default state, press and then
select the Set to Defaults softkey. Select YES to confirm the operation.
A complete listing of the instrument’s power-on and reset conditions,
see the “Factory Default Settings” table inside the rear cover of this manual.
To Select the Output Termination
The Agilent 33250A has a fixed series output impedance of 50 ohms to
the front-panel Output connector. If the actual load impedance is
different than the value specified, the displayed amplitude and offset
levels will be incorrect. The load impedance setting is simply provided
as a convenience to ensure that the displayed voltage matches the
expected load.
1Press .
2 Navigate the menu to set the output termination.
Press the Output Setup softkey and then select the Load softkey.
3 Select the desired output termination.
Use the knob or numeric keypad to select the desired load impedance
or press the Load softkey again to choose “High Z”.
To Next Page
