3. Remove the DIP front panel
of the DIP System following
the instructions given in the
DIP manual (chapter 7.2).

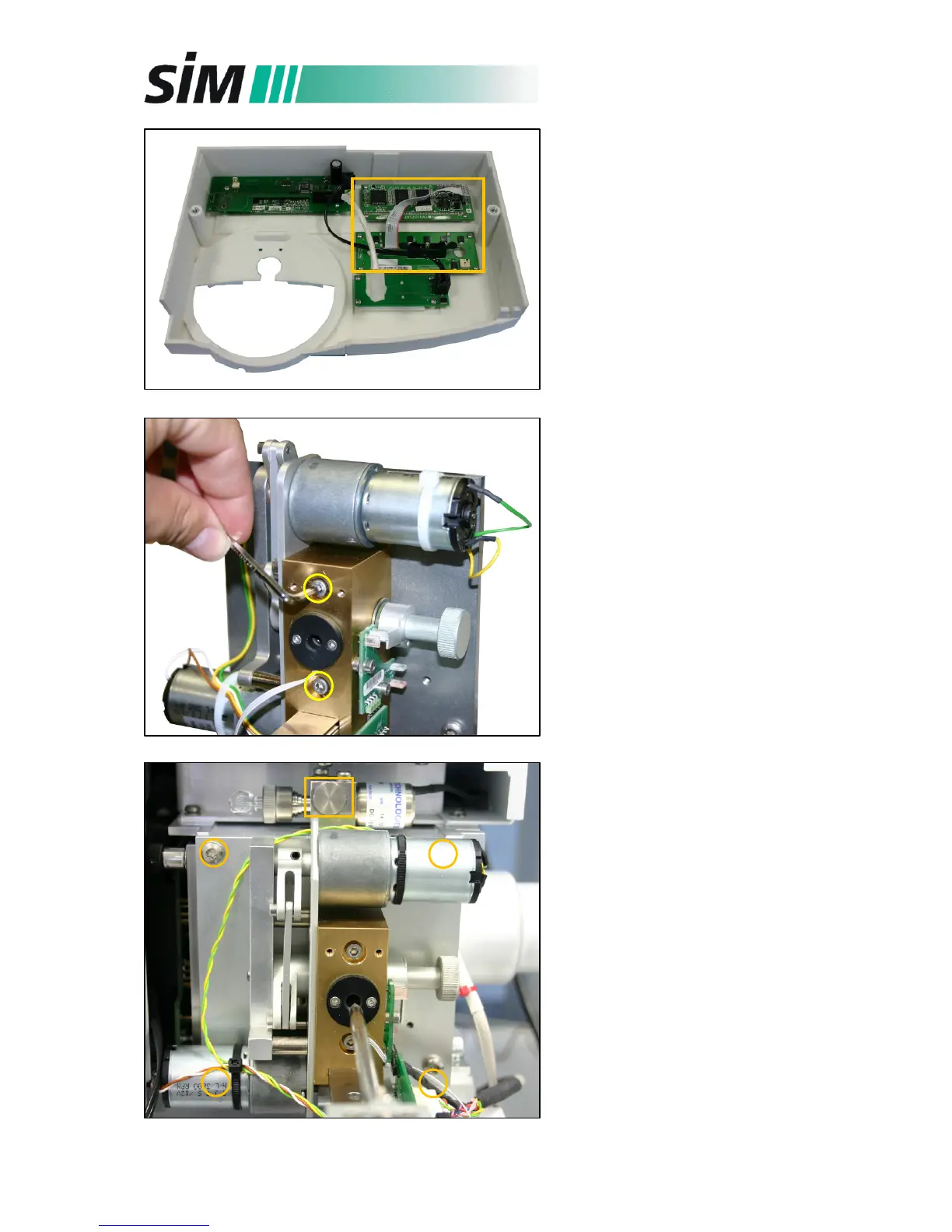

4. Take the DIP front panel
and mount the display
boards of the MSD onto the
preset positions (see left).
5. Before mounting the DIP
system, remove the glass
plate in front of the MSD ion
source compartment.
6. To mount the DIP system in
front of the MSD, first
deinstall the valve unit by
loosing the two screws (see
marked circles on the left).
Now the adapter plate is
separated and the four
screws are well accessible
for the next step.
7. Take the adapter plate and
mount it in front of the ion
source compartment using
the four screws (see
marked circles on the left,
the screws behind the
motors are not visible on
this photo).
8. Then retighten the valve
unit of the DIP system on
the adapter plate with the
two screws according to the
photo of step no. 6.
9. Replace the original knurled
knob of the MSD valve with
the provided knob for the
DIP System (see marked
rectangle in the photo left).
