This menu is reserved to qualified service engineers only and needs a password.

Select the parameter menu of the controller in the following way:

1. Press <Enter> and keep it pressed

while pressing <arrow up><arrow down><arrow up><arrow down>

then let off the <Enter> key so that the diagnostic menu appears

press <arrow right> and <Enter> so that the cursor in the parameter menu appears:

the first two numbers represent the parameter number, the selected number is taken

with <Enter>

then the belonging value (to this parameter) will be shown and can be changed

2. Select parameter “00” and enter the password “1000”

3. Change the values of the designated parameter.

2 DIP Installation Procedure

2.1 Replacing the ion source

Please follow the instructions given in the corresponding Agilent Manual to replace the

existing ion source with the provided modified ion source (EI or CI).

2.2 Installing the DIP on the Agilent 5975 MSD

Before installing the DIP System to the Agilent 5975 MSD you have to uninstall the MSD

front panel:

1. After you have

disconnected the required

cables, remove the MSD

front panel carefully.

Please follow the

instructions given in the

5975 MSD manual.

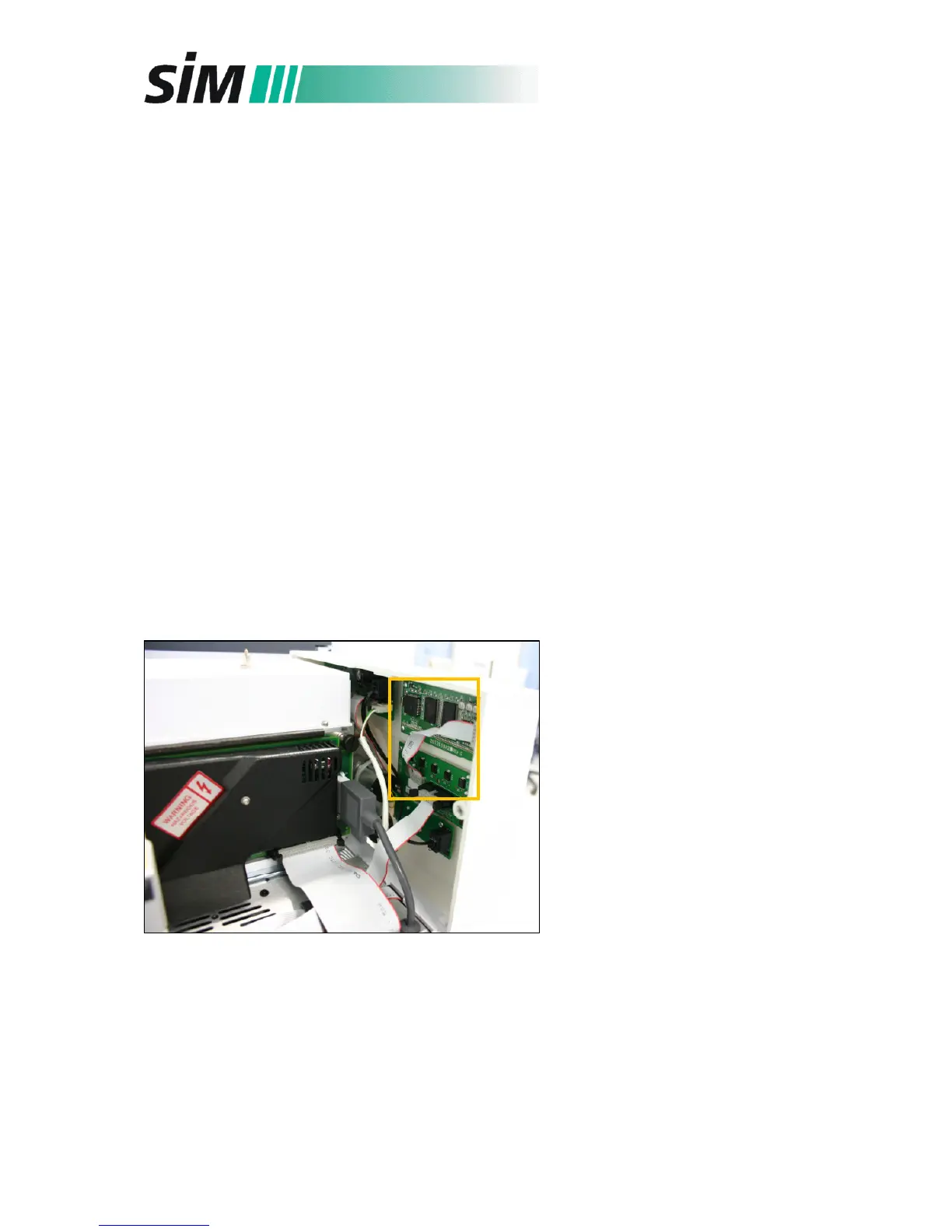

2. Demount the two boards for

the MSD display (see

marking on the left) and put

the MSD front panel aside

and
