100 5975/5977 Series MSD Operation Manual

4 General Maintenance

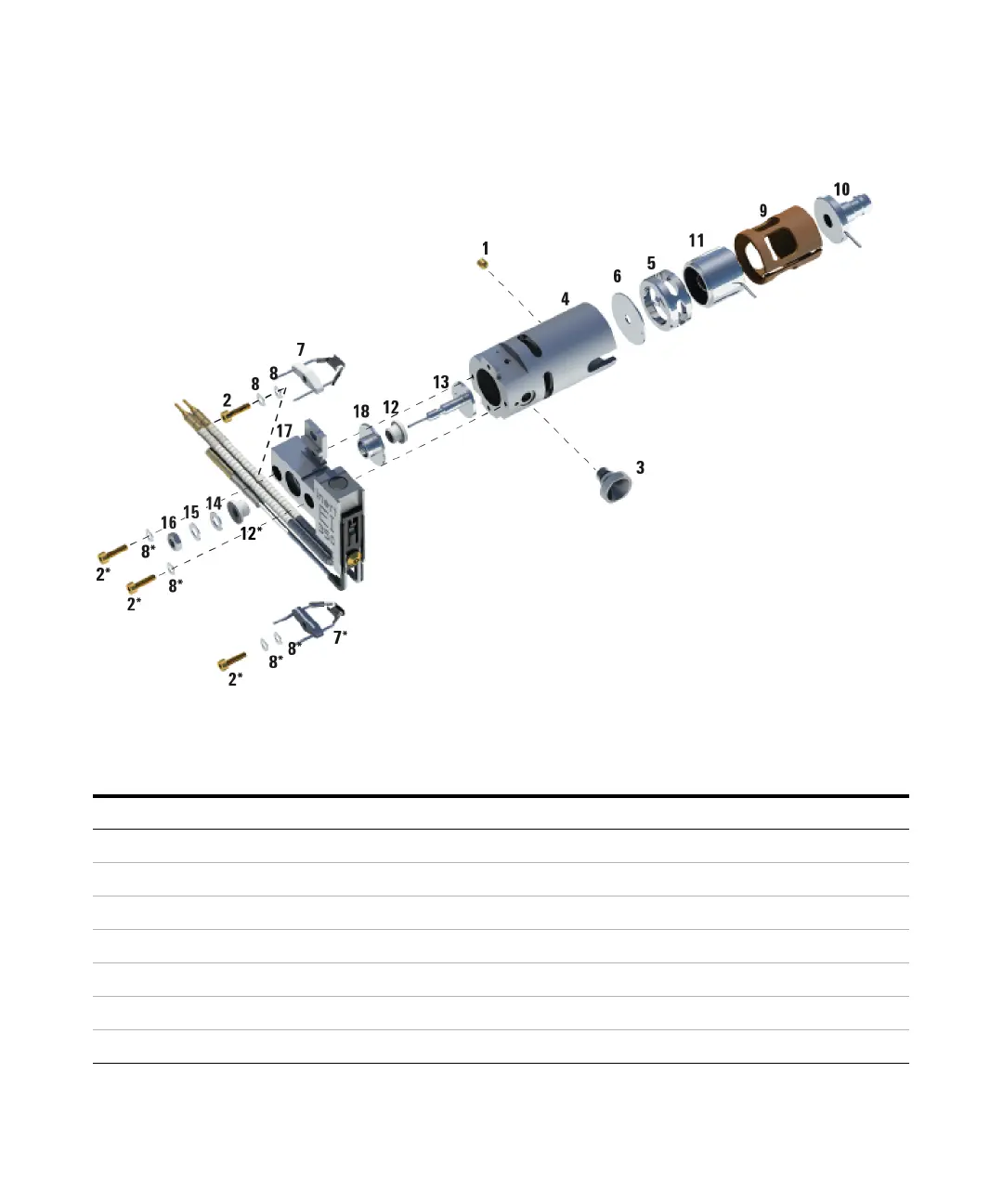

Figure 13 Disassembling the standard or inert EI ion source

Table 19 Parts list for the standard or inert EI ion source (Figure 16)

Item number Item description Part number (SSL) Part number (Inert)

1 Gold plated set screw G1999-20022 G1999-20022

2 Gold plated screw G3870-20021 G3870-20021

3 Interface socket G1099-20136 G1099-20136

4 Source body G1099-20130 G2589-20043

5 Drawout cylinder G1072-20008 G1072-20008

6 Drawout plate 05971-20134 G2589-20100

7 4-turn filament G7005-60061 G7005-60061
