Operating in Electron Ionization (EI) Mode
3
5975/5977 Series MSD Operation Manual
77
V
ent the MSD

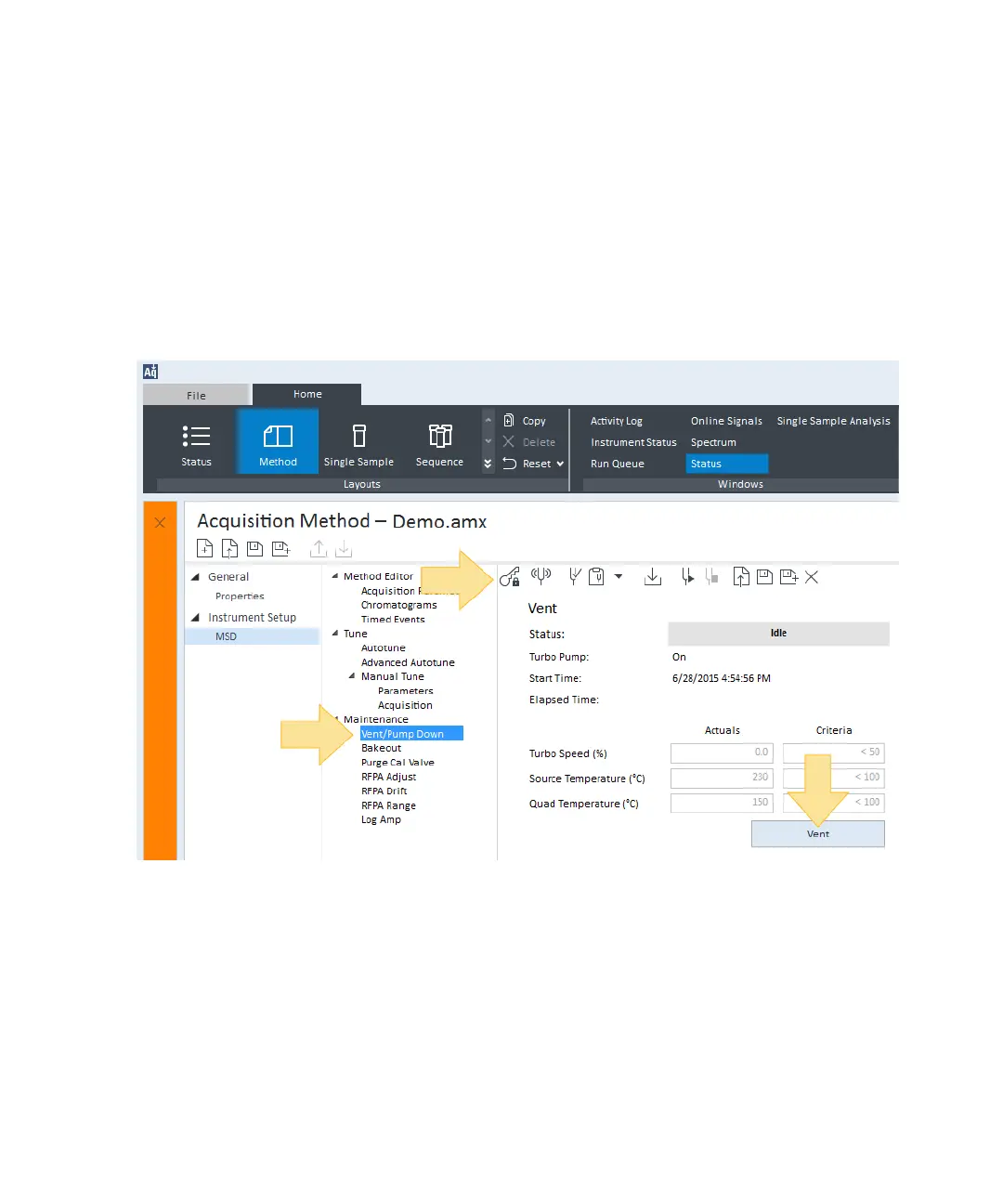

Procedure
1
Select
Method > MSD > Maintenance > V
ent/Pump Down
and click
V
ent
to
begin the process. F
ollow the instructions present
ed.
76
78
