MSD Hardware Description

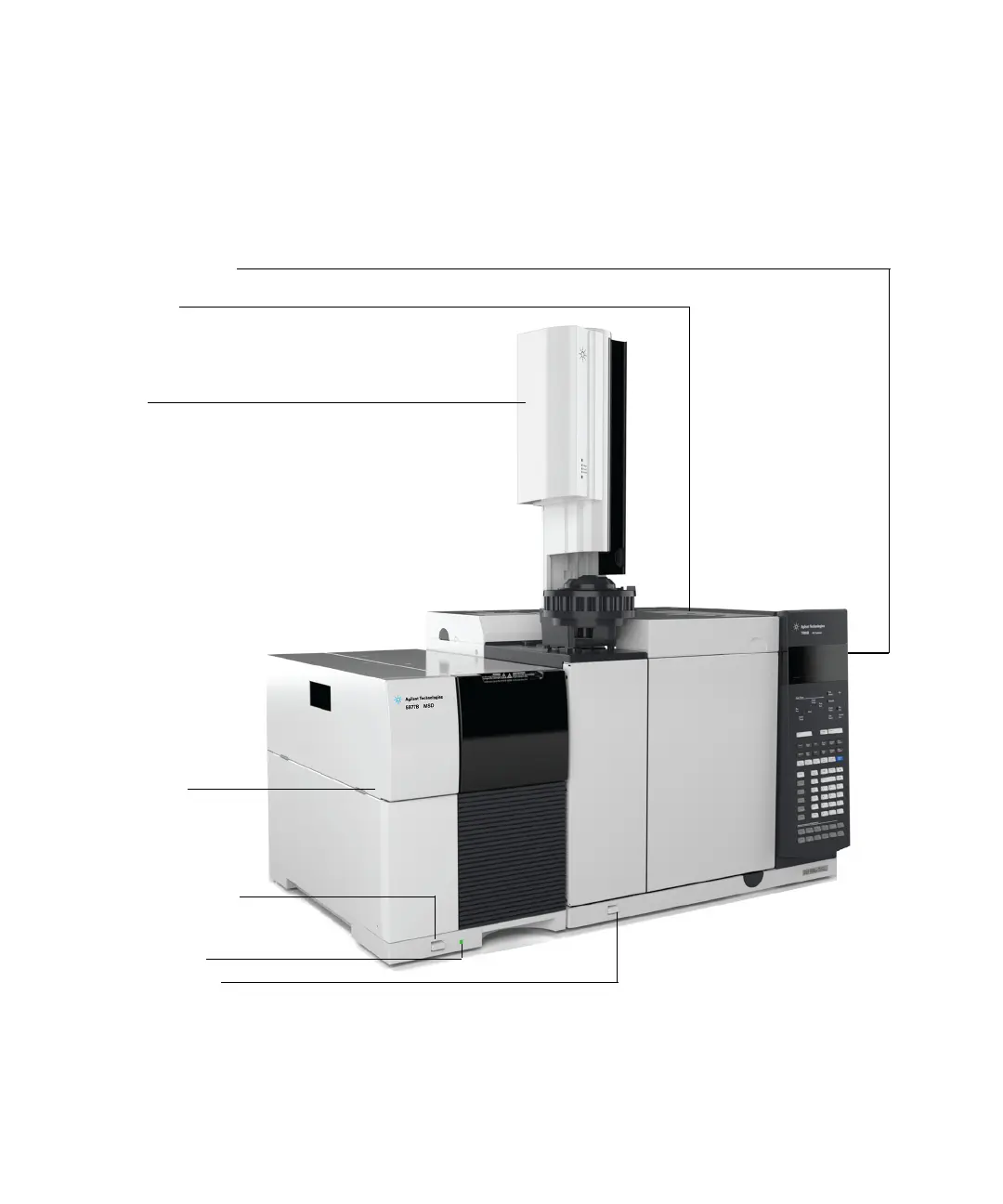

Figure 1 5977B Series GC/MSD system, shown with Agilent 7890B GC
ALS
7890B GC
Local control panel
5977B Series
MSD
MSD power switch
GC power switch
Front panel LED
