3 Operating in Electron Ionization (EI) Mode

View MSD Temperatures and Vacuum

Pressure monitoring requires an optional Micro-Ion vacuum gauge(G3397A

for the 5975 and G3397B for the 5977)..

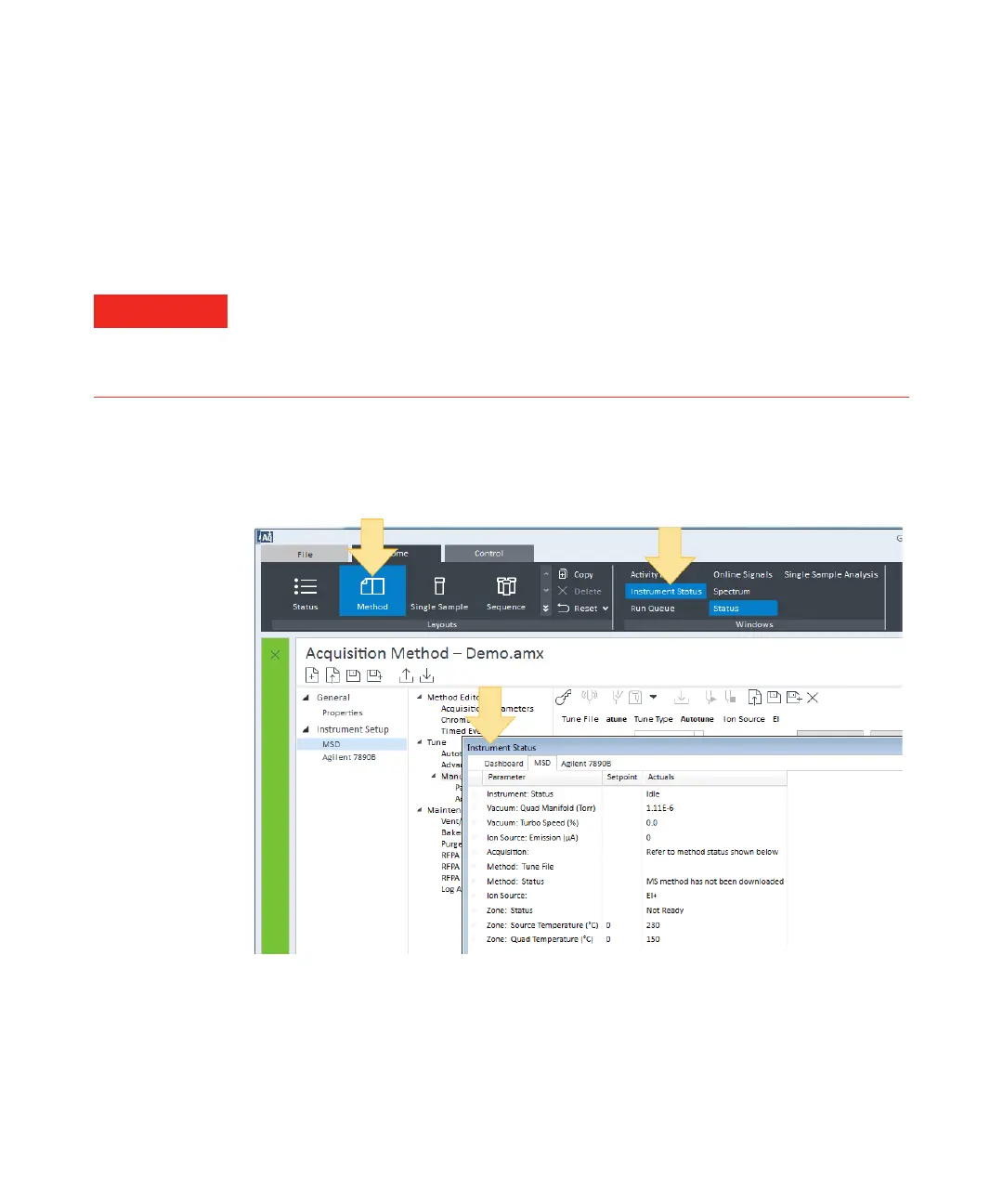

Select Instrument Status in the windows area and click MSD to display the MSD’s

actuals values including the source and quad temperatures and quad manifold

vacuum pressure.

WARNING

If you are using hydrogen as a carrier gas, do not turn on the Micro-Ion vacuum

gauge if there is any possibility that hydrogen has accumulated in the analyzer

chamber. Read “Hydrogen Safety”on page 18 before operating the MSD with

hydrogen carrier gas.
