120 5975/5977 Series MSD Operation Manual
4 General Maintenance

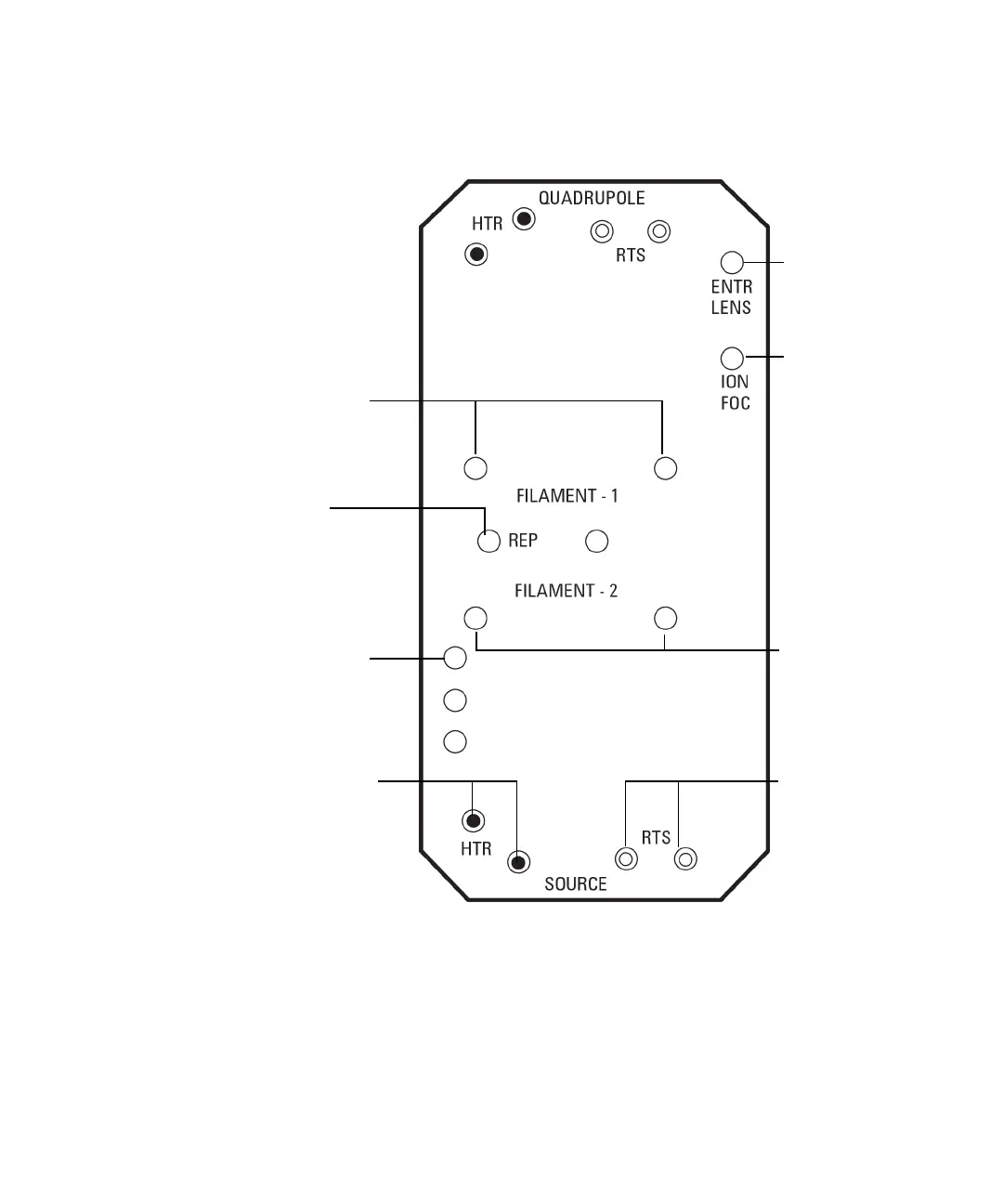

Figure 20 Feedthrough board wiring
White wires to
filament 1
Red wire
to repeller
Black wires to
filament 2
Ion source heater
wires (white)
Blue wire to
entrance lens
Orange wire to
ion focus lens
Ion source sensor
wires (white)
Brown extractor
wire to extractor
lens
