6 General Maintenance
To Disassemble the EI SS or EI Inert Source
5977C GC/MSD Operating Manual 173

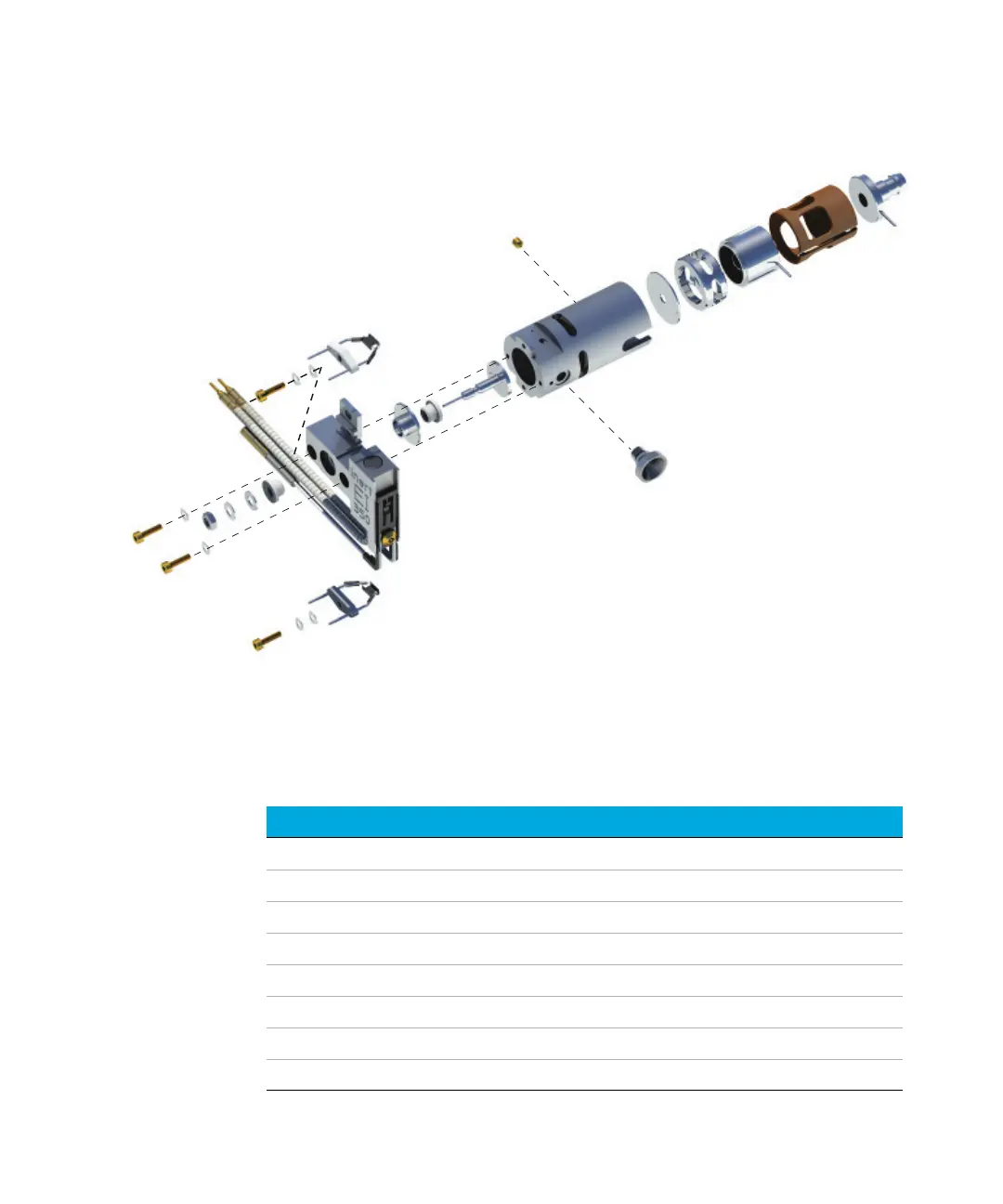

Figure 56. Disassembling the EI SS or Inert source
1
2
8*
15
151515
14
1414
2*
2*
16
1616
8*
12*
12*12*
10
2*
8*
8*
7*
17
18
3
8
8
7
12
13
4
6
5
11
9
Table 19 Parts list for the EI SS or Inert source (Figure 56)
Item number Item description Part number (SS) Part number (Inert)
1 Gold plated set screw G1999-20022 G1999-20022
2 Gold plated screw G3870-20021 G3870-20021
3 Interface socket G1099-20136 G1099-20136
4 Source body G1099-20130 G2589-20043
5 Drawout cylinder G1072-20008 G1072-20008
6 Drawout plate 05971-20134 G2589-20100
7 4-turn filament G7005-60061 G7005-60061
8 Spring washer 3050-1374 3050-1374
