6 General Maintenance

To Assemble the EI XTR Source

192 5977C GC/MSD Operating Manual

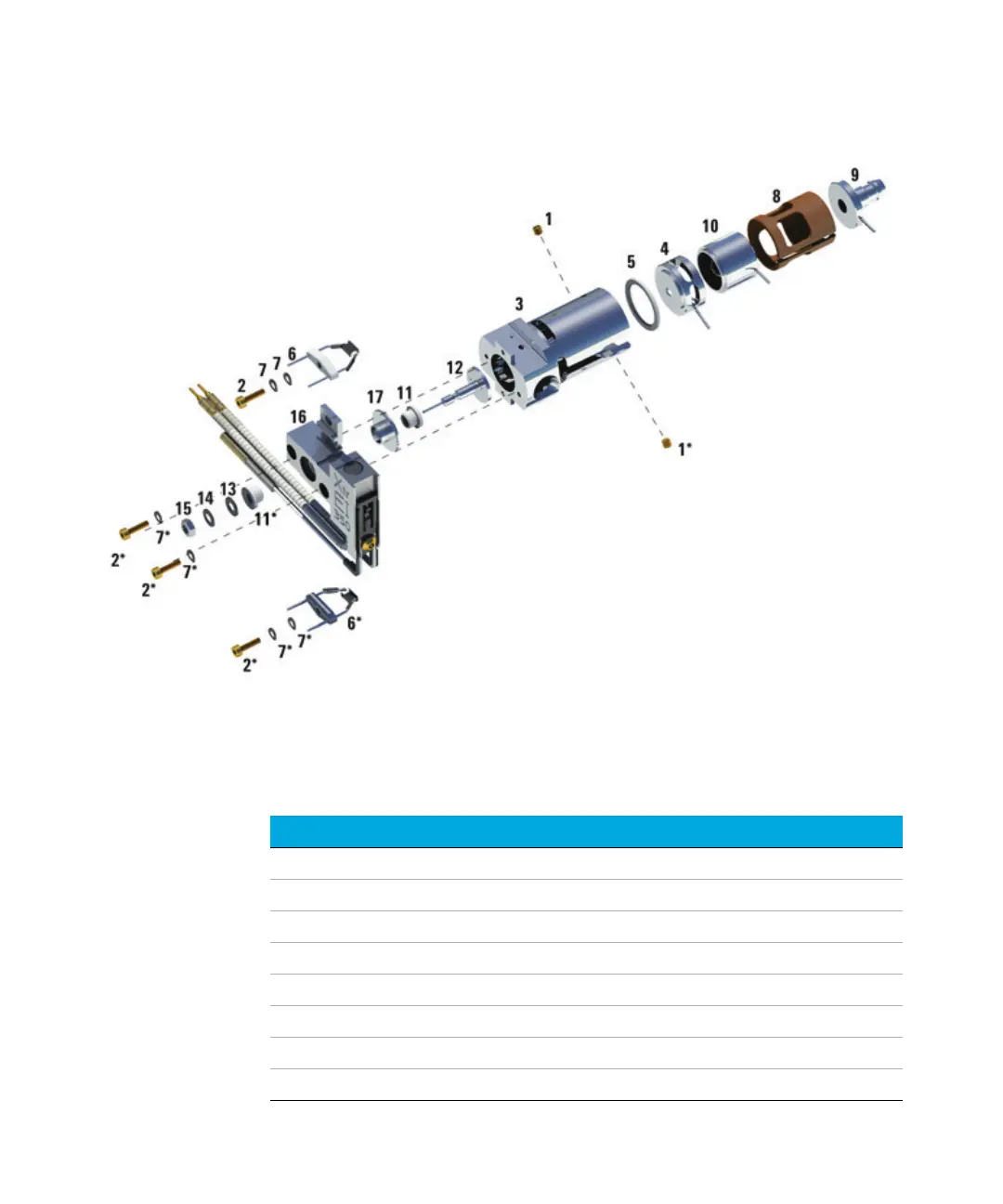

Figure 62. Assembling the EI XTR source

Table 24 Parts list for EI XTR source (Figure 62)

Item Description Part number

1 Setscrews G3870-20446

2 Screws G3870-20021

3 Source body G3870-20440

4 Extractor lens G3870-20444

5 Extractor lens insulator G3870-20445

6 Filaments G7005-60061

7 Spring washer 3050-1301

7 Flat washer 3050-0982
