6 General Maintenance

To Assemble the EI Hydronert Source

5977C GC/MSD Operating Manual 195

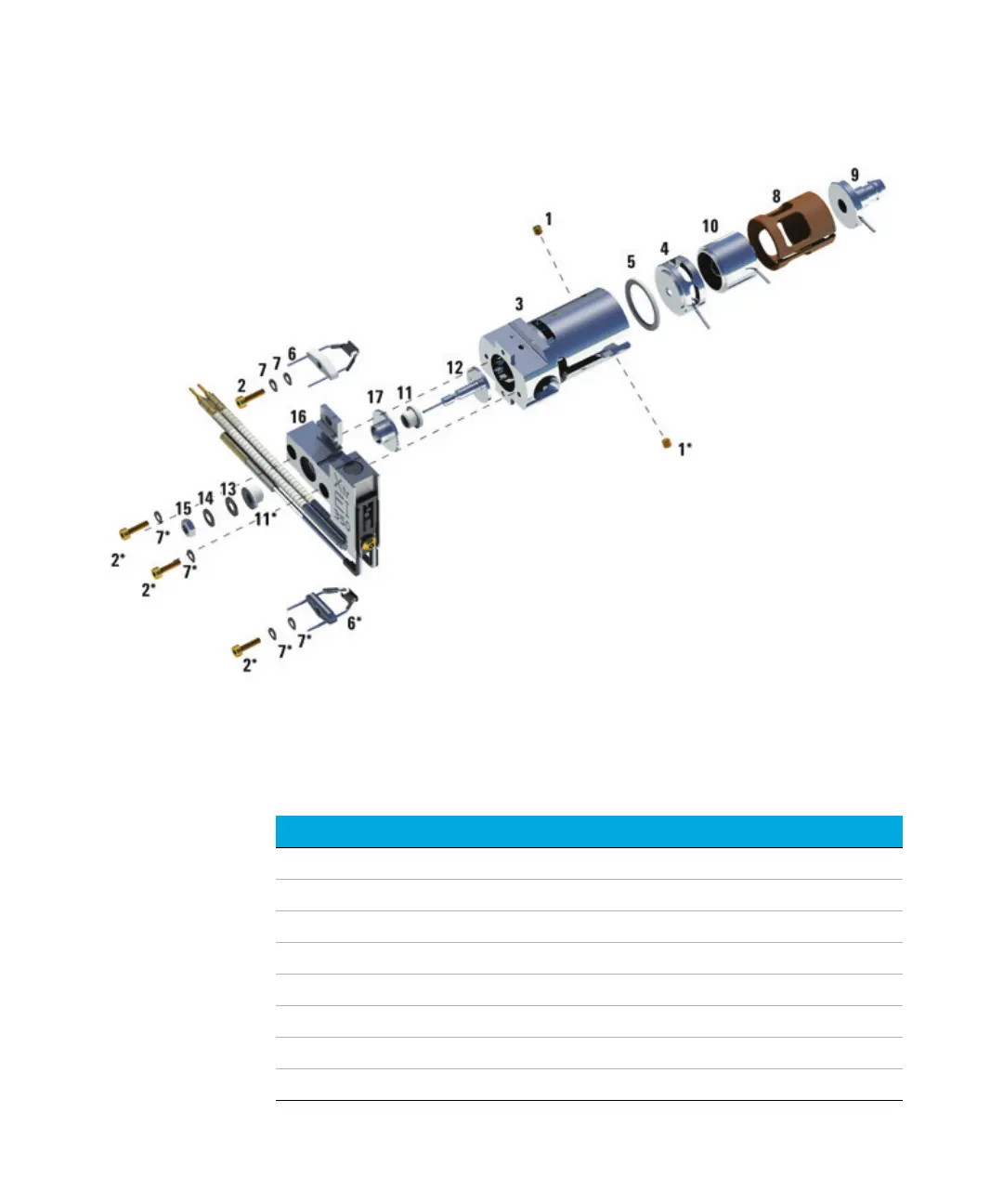

Figure 63. Assembling the EI Hydronert source

Table 25 Parts list for EI Hyrdronert source (Figure 63)

Item Description Part number

1 Setscrews G3870-20446

2 Screws G3870-20021

3 Source body G7078-20903

4 Extractor lens, 9 mm G7078-20909

5 Extractor lens insulator G3870-20445

6 Filaments G7005-60061

7 Spring washer 3050-1301

7 Flat washer 3050-0982
