Installation
Cary Eclipse Fluorescence Spectrophotometer User’s Guide 23
3 Lock the cell base by turning the lever (‘2’ in Figure 2) to the
right.

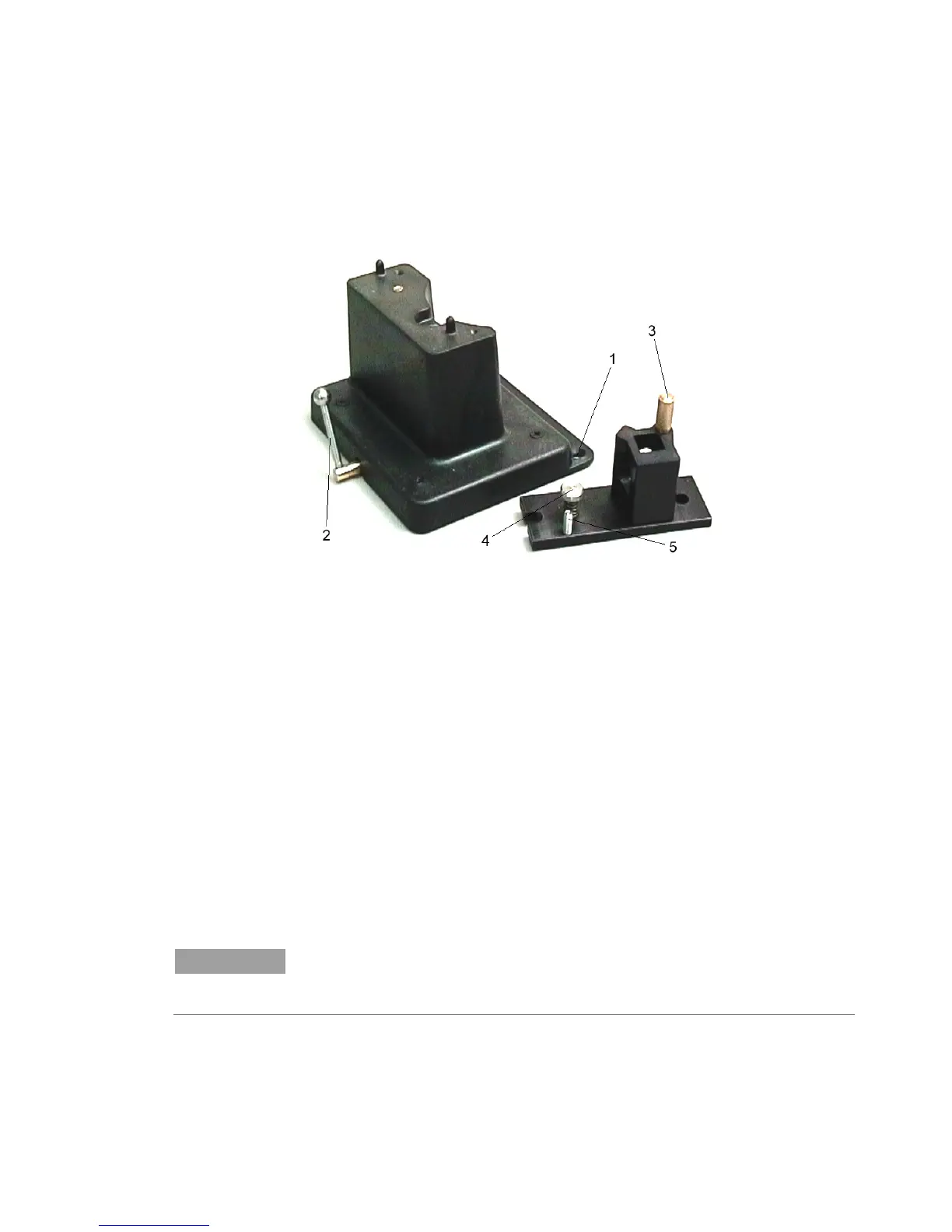

Figure 2. Cell holder base (left) and Single cell holder
1) Locating holes 2) Cell holder locking lever
3) Cell lifter and height adjuster 4) Cell holder thumbscrew
5) Pitch adjustment screw
4 Place the single cell holder on the cell holder base so that the cell
lifter (3) is at the rear of the sample compartment.
5 Secure the cell holder by tightening the spring-loaded
thumbscrew (4).
Cuvette height adjustment
Turning the cell lifter (3) in a clockwise direction will raise the
cuvette.
Turning the cell lifter (3) in an counter-clockwise direction will
lower the cuvette platform.
NOTE
To lower the cuvette you will have to push the cuvette down because of the
tension created by the single cell holder.
