Maintenance and Spare Parts
36 Cary Eclipse Fluorescence Spectrophotometer User’s Guide
NOTE
The brass adjustment screws for vertical and horizontal adjustment are clearly
marked.

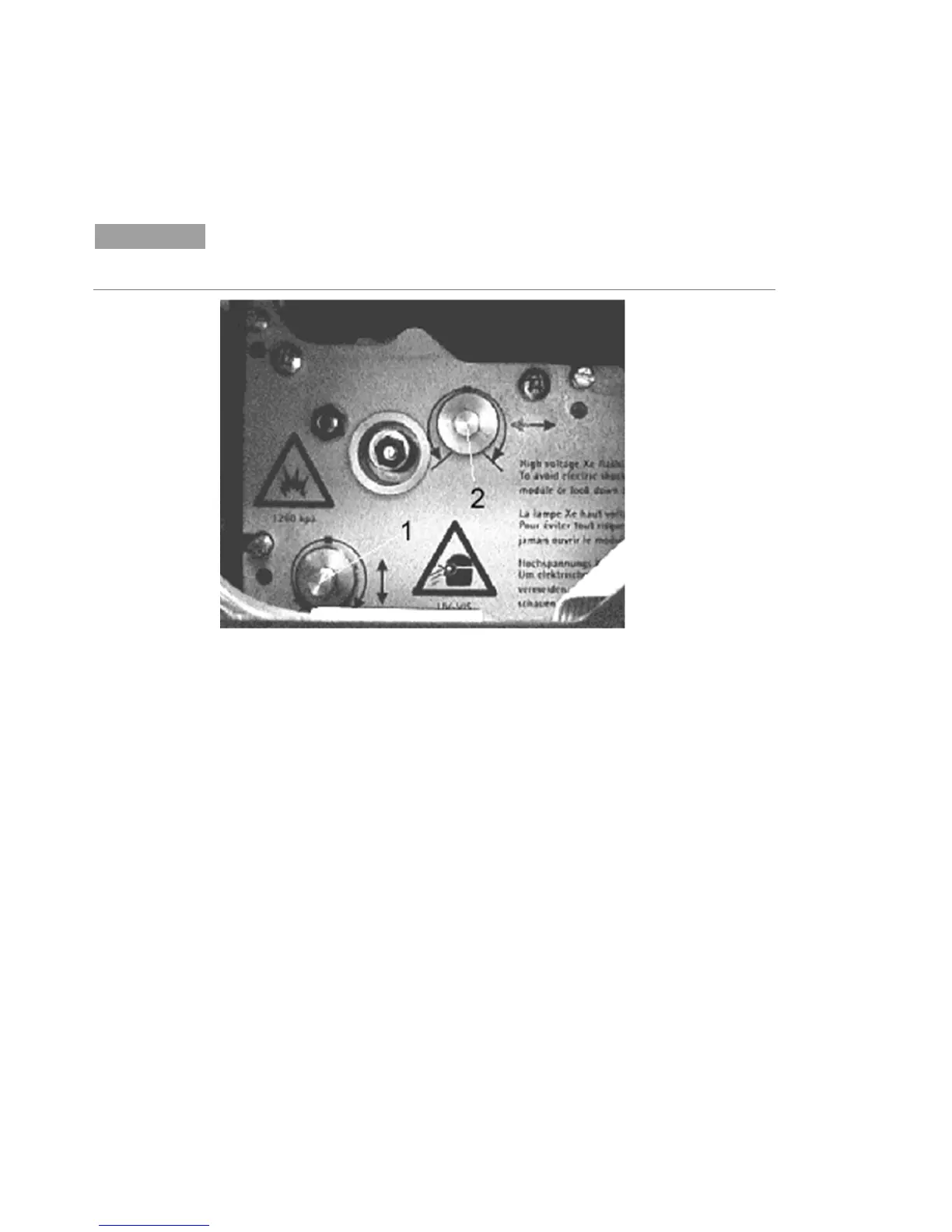

Figure 5. 1) Vertical adjustment screw 2) Horizontal adjustment screw
9 Adjust the top right screw (horizontal adjustment, labeled ‘2’ in
Figure 5) for maximum signal (see Figure 6) with the supplied
5.5 millimeter nut driver (you may need to adjust the y-axis
scaling).
