Agilent Technologies E3631A - Measurement Techniques; Setup for most Tests

Chapter 3 Calibration Procedures
Measurement Techniques
47
3
Measurement Techniques
Setup for Most Tests
Most tests are performed at the front terminals as shown in the following figure.
Measure the dc voltage directly at the (+) and (-) terminals on the front panel.

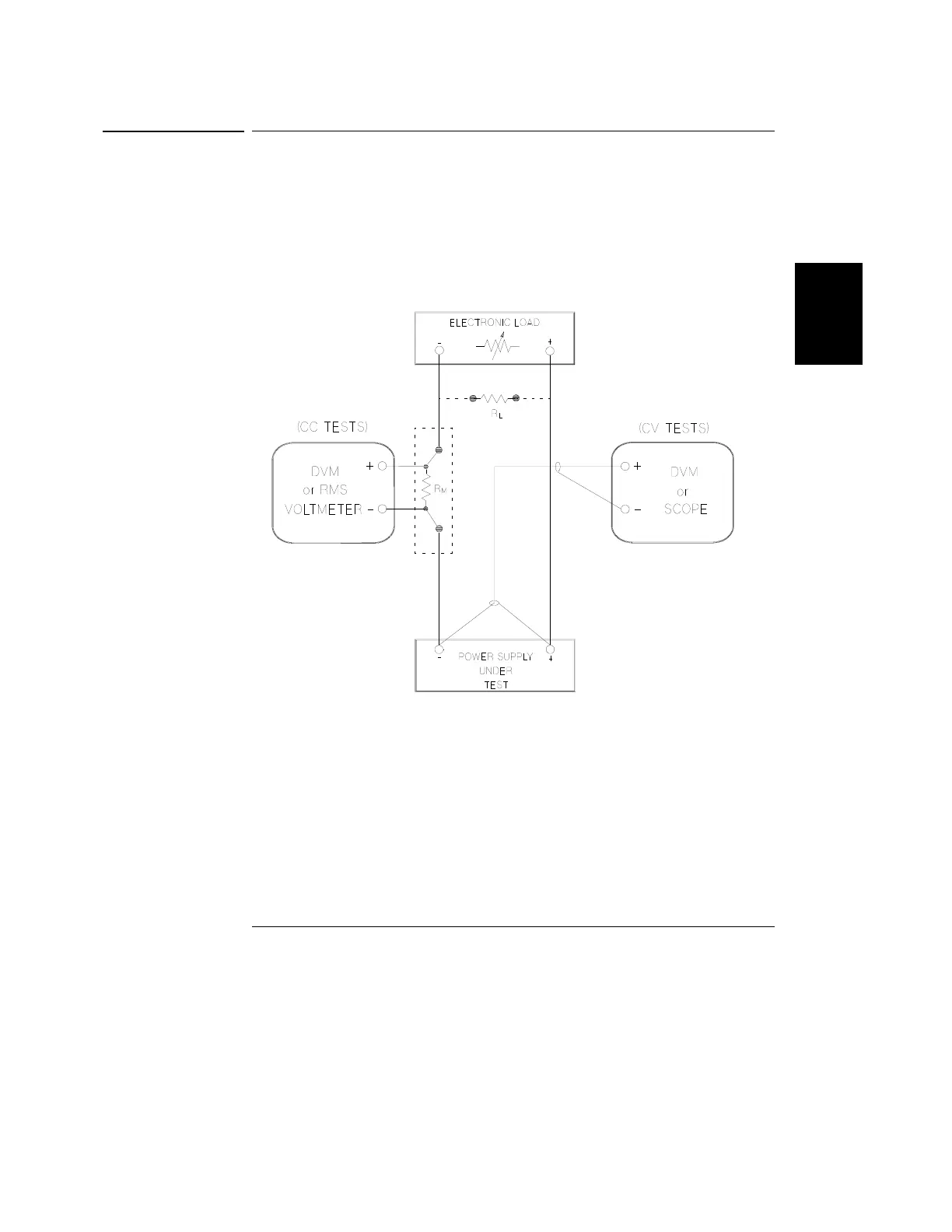

Figure 3-1. Performance Verification Test Setup
