Chapter 1 1-11
GSM Use Model
Identifying Interfering Signals
GSM/PCS Signal
Press
MEASURE, More, Monitor Band/Channel, Meas Setup,
Method Channel, More, Chan Setup, Max Hold On

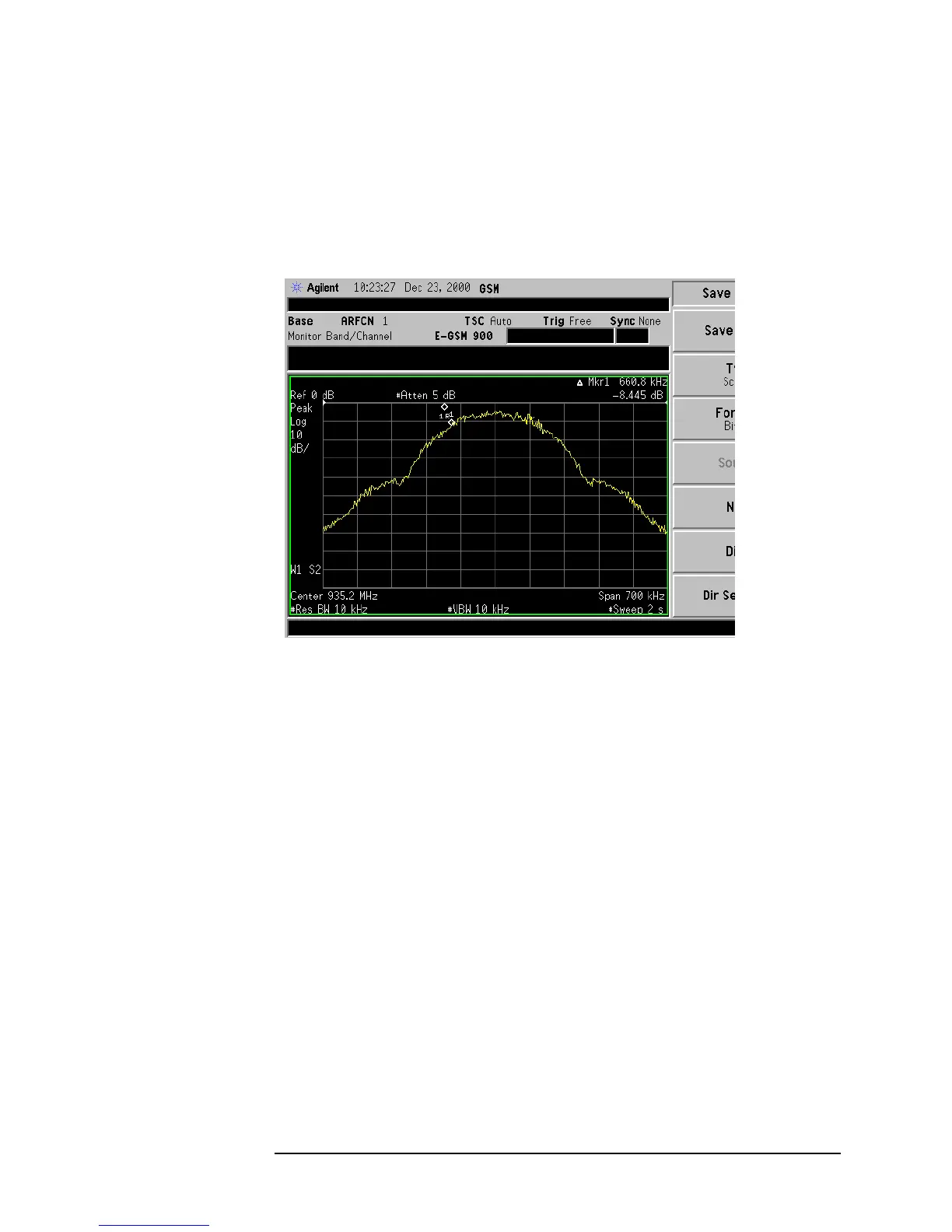

Figure 1-7 Example Screen Showing an Interfering GSM/PCS Signal
GSM/PCS networks can cause in-band interference. A GSM signal will
have the type of spectral characteristic shown in Figure 1-7.
