3-20 Chapter 3
Making GSM Base Station Measurements
Making the Transmitter Power Measurement
Making the Measurement
1. Press the Measure key.
2. Press the
Transmitter Power key.
Factory default parameter settings provide a GSM compliant
measurement. For special requirements, you may need to change
default settings:
• Mode setup and frequency/channel parameters.
Use the
Mode Setup and Frequency Channel keys to change these
parameters for all measurements made within the current mode. For
further information refer to Chapter 1 of this document.
• Measurement setup parameters.
These are measurement specific parameters changed using the
Measurement setup (
Meas Setup) menu. Parameters can be returned
to default settings at any time by pressing
Meas Setup, More (1 of 2)
and
Restore Meas Defaults. For further information on measurement
setup parameters, refer to the ESA Series Spectrum Analyzers GSM
Measurement Personality User’s Guide.
NOTE Parameters that exist under the Meas Setup Advanced key seldom need
to be changed. Any changes from the default values may result in
invalid measurement data.
Results

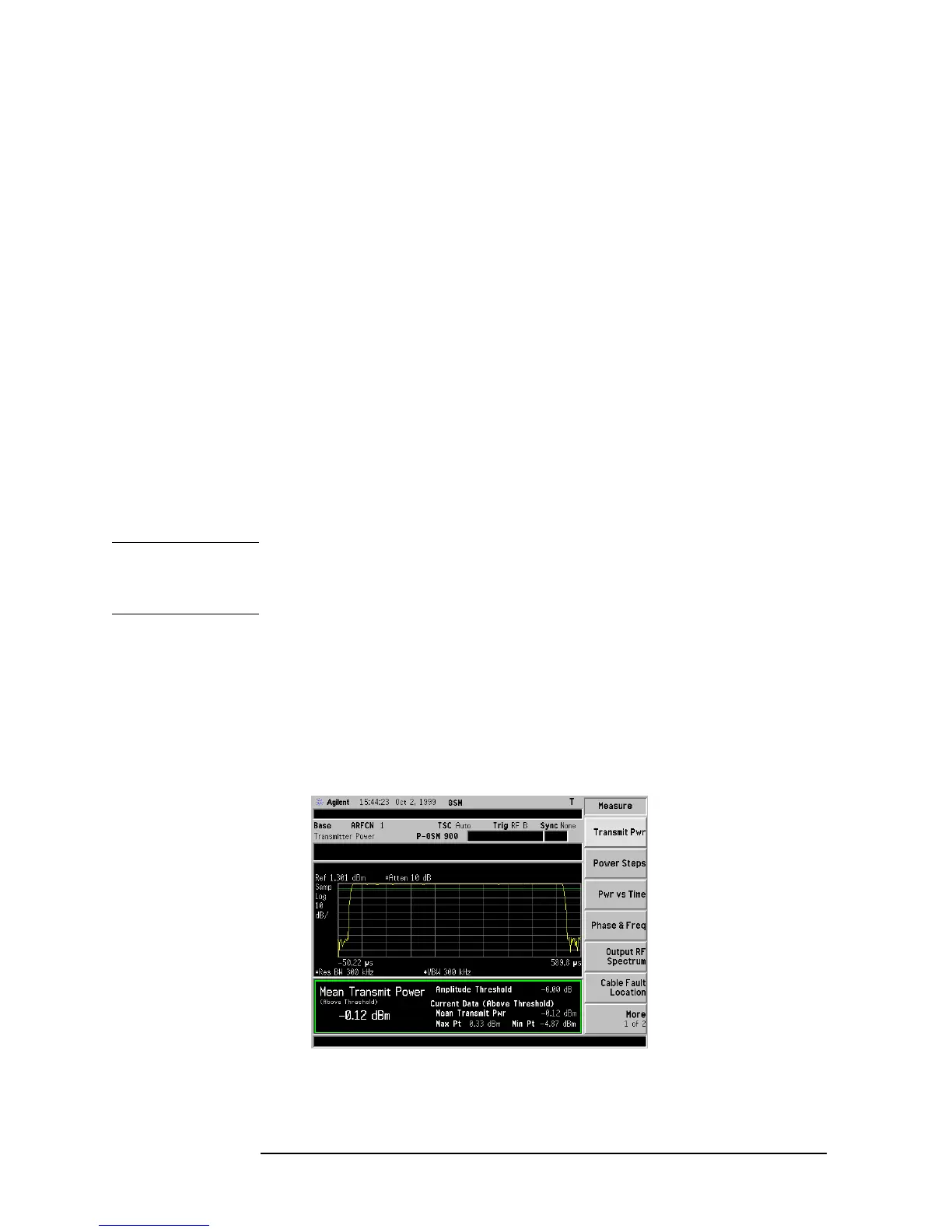

An example screen from a Transmitter Power (single burst)
measurement is shown below in Figure 3-12 (below). An example of a
multiple burst measurement is shown in Figure 3-13.
Figure 3-12 Transmitter Power Result - Single Burst
