Performance Tests 2
E4416A/E4417A Power Meters Service Guide 19
Test S et up

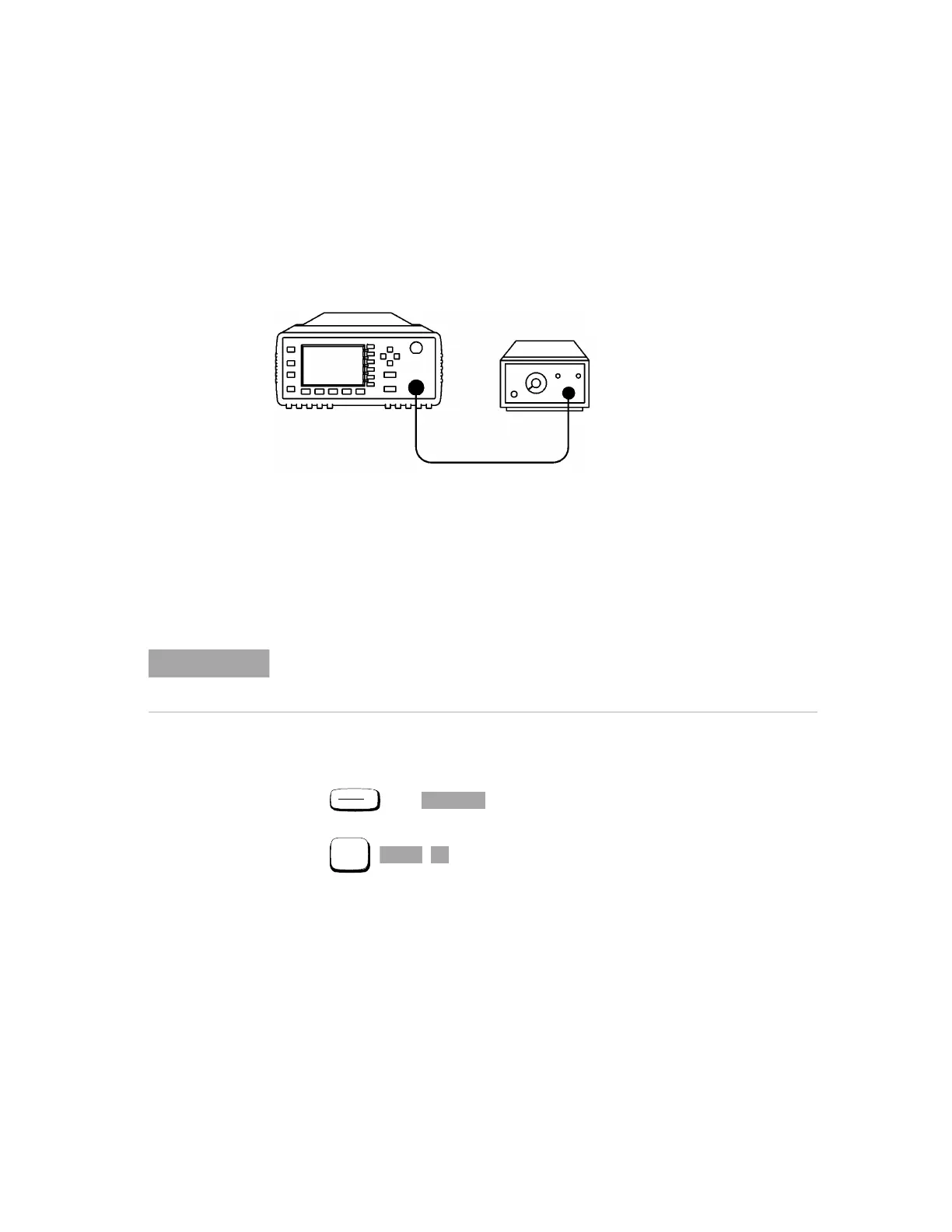

Figure 2-1 Zero Test Setup
Procedure
The following procedure should be performed for the Zero Test.
1 Connect the equipment as shown in Figure 2- 1.
2 Switch the power meter on.
3 Press then .
4 Press , , for a reading in watts.
5 Set the range calibrator as follows:
RANGE: 3 μW
POLARITY: NORMAL
FUNCTION: STANDBY
LINE: ON
Agilent 11730A
Power
Meter
CHANNEL A
Power Meter
Range
Calibrator
NOTE
The procedure details the key presses required on the Agilent Technologies E4416A.
For the Agilent Technologies E4417A, the equivalent key presses should be performed
on both channels.
Preset
Local
Confirm
Units
W
